TOYOTA CYNOS EL52C-DKKDK / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

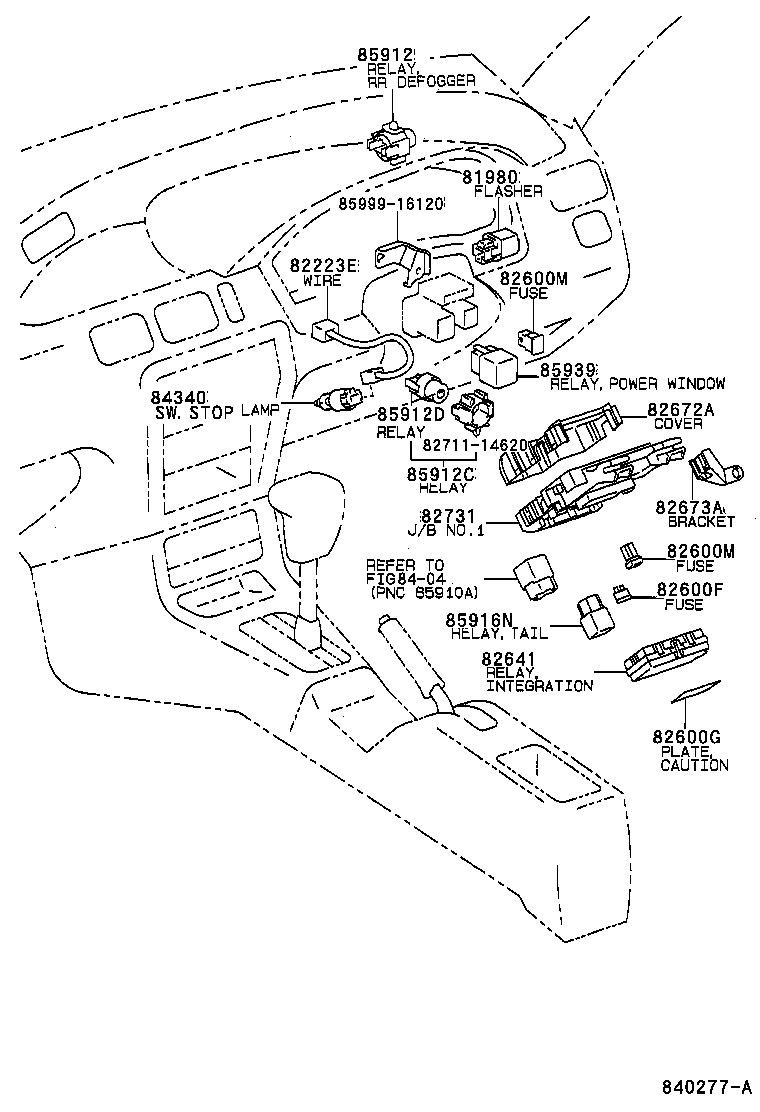

ｲﾝﾊﾟﾈ ﾘﾚ-,ｽｲﾂﾁ ILLUST NO. 5 OF 7(9508- )

CYNOS | SWITCH RELAY COMPUTER 81980 - FLASHER ASSY, TURN SIGNAL 82223E - WIRE, CLUTCH START SWITCH 82600F - FUSE, FUSE BLOCK 82600G - PLATE, CAUTION(FOR FUSE) 82600M - FUSE, MEDIUM CURRENT 82600M - FUSE, MEDIUM CURRENT 82641 - RELAY, INTEGRATION NO.1 82672A - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK ** Std Part 82731 - BLOCK, DRIVER SIDE JUNCTION ** Refer Fig 84340 - SWITCH ASSY, STOP LAMP 85912 - RELAY, DEFOGGER 85912C - RELAY, W/HOLDER 85912D - RELAY 85916N - RELAY, TAIL LAMP 85939 - RELAY, POWER WINDOW ** Std Part
