TOYOTA CROWN COMFORT SED SXS11Y-BEPDK / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

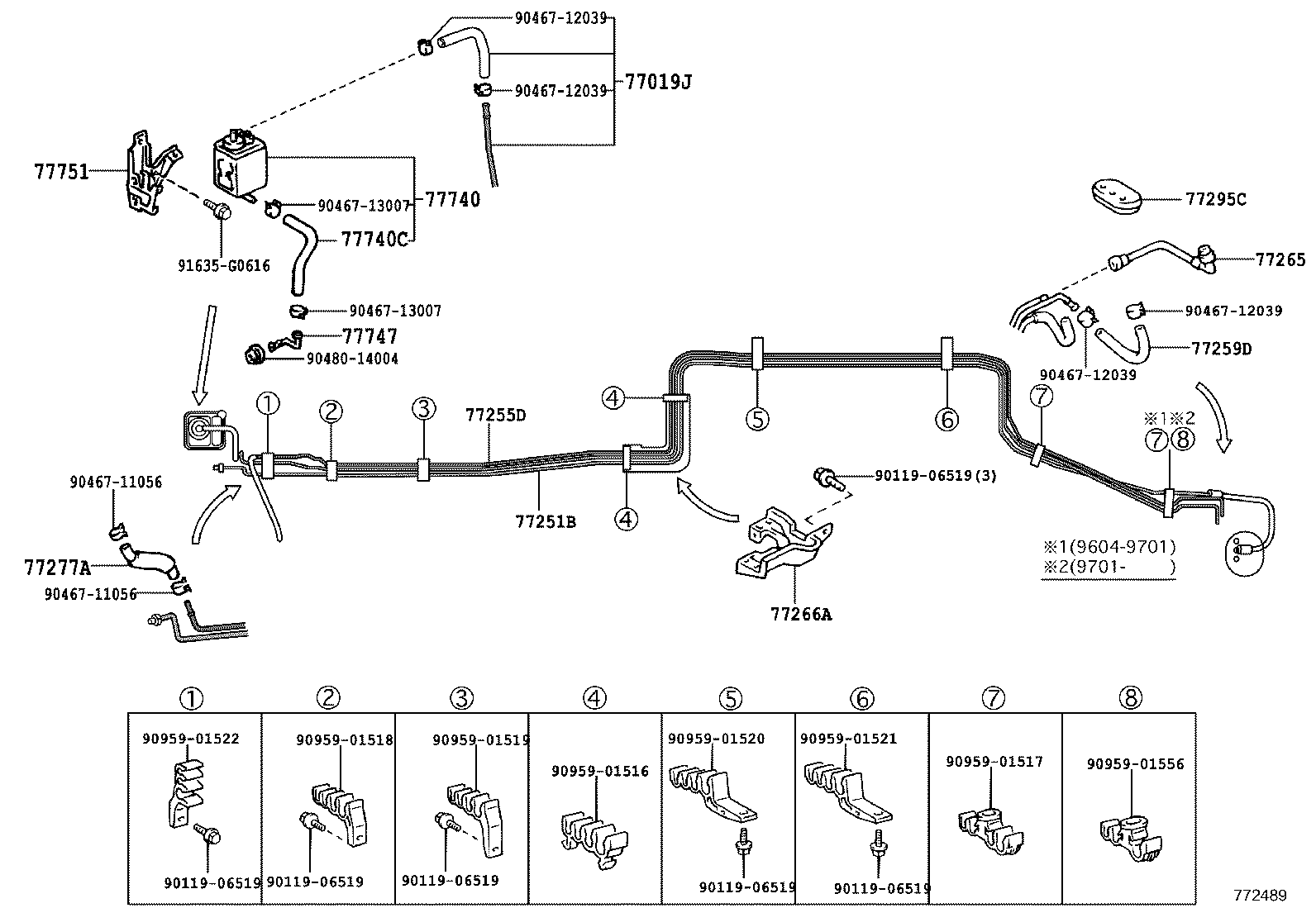

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ ILLUST NO. 2 OF 2(9512-0108)SXS11

CROWN COMFORT SED | FUEL TANK TUBE 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77259D - HOSE, FUEL, NO.1 77265 - CONNECTOR, FUEL MAIN TUBE 77266A - PROTECTOR, FUEL TUBE, NO.1 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77295C - GROMMET, FUEL TUBE 77740 - CANISTER ASSY, CHARCOAL 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77747 - PIPE, CHARCOAL CANISTER, NO.1 77751 - BRACKET, CHARCOAL CANISTER BASE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
