TOYOTA CHASER JZX101-BTPZF / POWERTRAIN-CHASSIS / BRAKE MASTER CYLINDER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

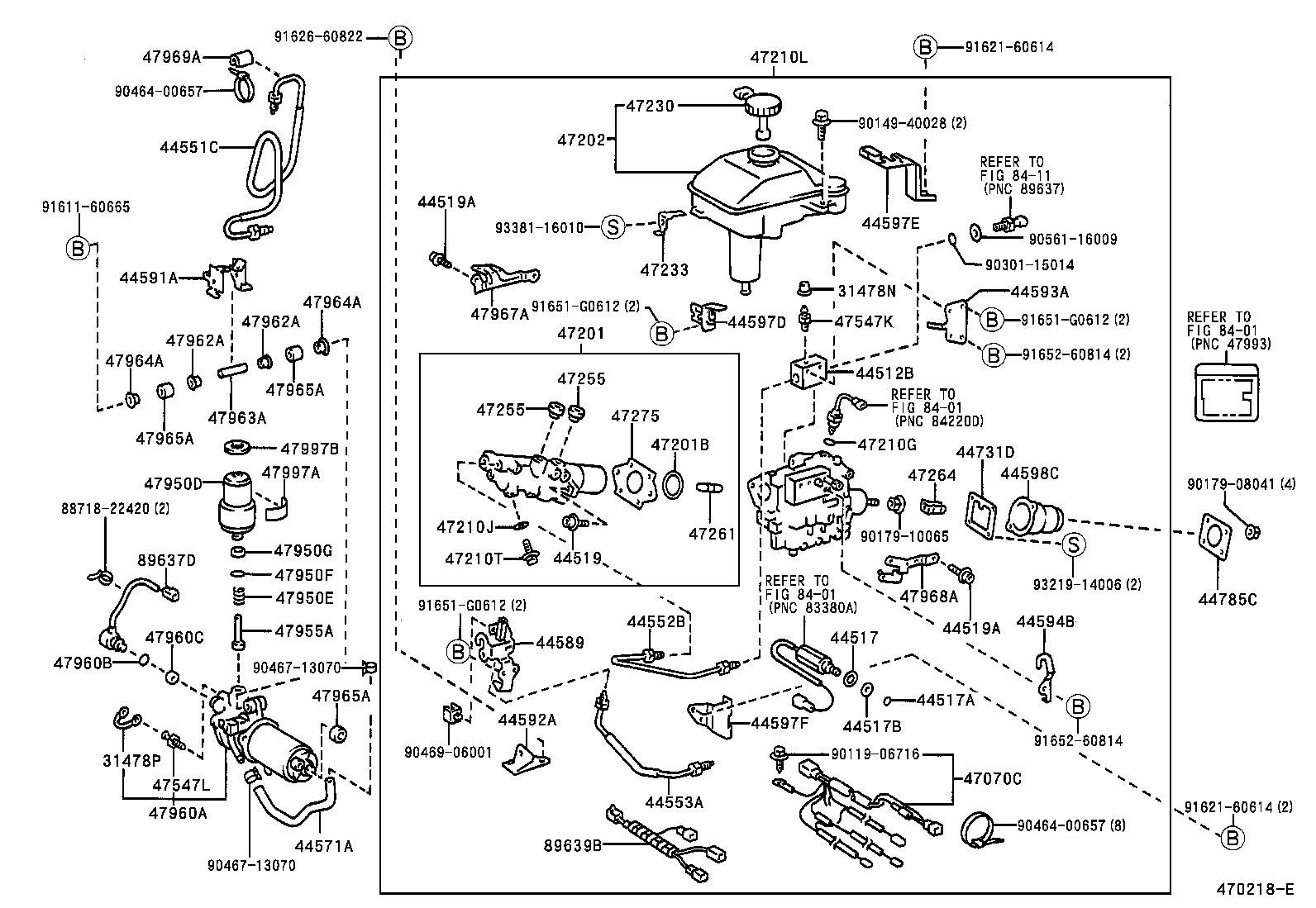

BRAKE MASTER CYLINDER

ｱﾘ(VSC) ILLUST NO. 2 OF 2(9609-9808)JZX101

CHASER | BRAKE MASTER CYLINDER 31478N - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER ACCUMULATOR) 31478P - CAP, BLEEDER PLUG(FOR BRAKE BOOSTER PUMP) 44512B - HOUSING, BRAKE ACTUATOR 44517 - RING, BRAKE ACTUATOR BACK-UP 44517A - RING, O(FOR BRAKE ACTUATOR PRESSURE SWITCH) 44517B - GASKET(FOR BRAKE ACTUATOR PRESSURE SWITCH) 44519 - BOLT, BRAKE ACTUATOR 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44519A - BOLT(FOR BRAKE BOOSTER PUMP) 44551C - TUBE, BRAKE ACTUATOR, NO.1 44552B - TUBE, BRAKE ACTUATOR, NO.2 44553A - TUBE, BRAKE ACTUATOR, NO.3 44571A - HOSE, BRAKE ACTUATOR, NO.1 44589 - WAY, NO.1(FOR BRAKE ACTUATOR) 44591A - BRACKET, BRAKE ACTUATOR, NO.1 44592A - BRACKET, BRAKE ACTUATOR, NO.2 44593A - BRACKET, BRAKE ACTUATOR, NO.3 44594B - BRACKET, BRAKE ACTUATOR, NO.4 44597D - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 44597E - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 44597F - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.3 44598C - COVER, BRAKE ACTUATOR 44731D - BRACKET, BRAKE BOOSTER 44785C - GASKET, BRAKE BOOSTER 47070C - WIRE, BRAKE BOOSTER ACCUMULATOR COIL LEAD 47201 - CYLINDER SUB-ASSY, BRAKE MASTER 47201B - RING, O(FOR BRAKE MASTER CYLINDER) 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER 47210G - RING, O(FOR DIFFERENTIAL VALVE SWITCH) 47210J - GASKET(FOR MASTER CYLINDER) 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER 47210T - BOLT(FOR BRAKE MASTER CYLINDER) 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER 47233 - BRACKET, RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47255 - GROMMET, MASTER CYLINDER RESERVOIR 47261 - ROD, MASTER CYLINDER PUSH 47264 - CLEVIS, MASTER CYLINDER PUSH ROD 47275 - GASKET, BRAKE MASTER CYLINDER 47547K - PLUG, BLEEDER(FOR BRAKE BOOSTER ACCUMULATOR) 47547L - PLUG, BLEEDER(FOR BRAKE BOOSTER PUMP) 47950D - ACCUMULATOR ASSY, BRAKE BOOSTER 47950E - SPRING, COMPRESSION(FOR BRAKE BOOSTER ACCUMULATOR) 47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR) 47950G - RING(FOR BRAKE BOOSTER ACCUMULATOR) 47955A - PIPE, BRAKE BOOSTER ACCUMULATOR 47960A - PUMP ASSY, BRAKE BOOSTER 47960B - RING, O(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) 47960C - SPACER(FOR BRAKE BOOSTER PUMP OIL PRESSURE SENSOR) 47962A - COLLAR, BRAKE BOOSTER PUMP 47962A - COLLAR, BRAKE BOOSTER PUMP 47963A - SHAFT, BRAKE BOOSTER PUMP 47964A - WASHER, BRAKE BOOSTER PUMP 47964A - WASHER, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47965A - BUSH, BRAKE BOOSTER PUMP 47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1 47968A - BRACKET, BRAKE BOOSTER PUMP, NO.2 47969A - CUSHION, BRAKE BOOSTER TUBE 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 47997B - LABEL, ACCUMULATOR CAUTION, NO,2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part 89637D - SENSOR, OIL PRESSURE 89639B - WIRE, BRAKE CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
