TOYOTA CELSIOR UCF20-AEPGK / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

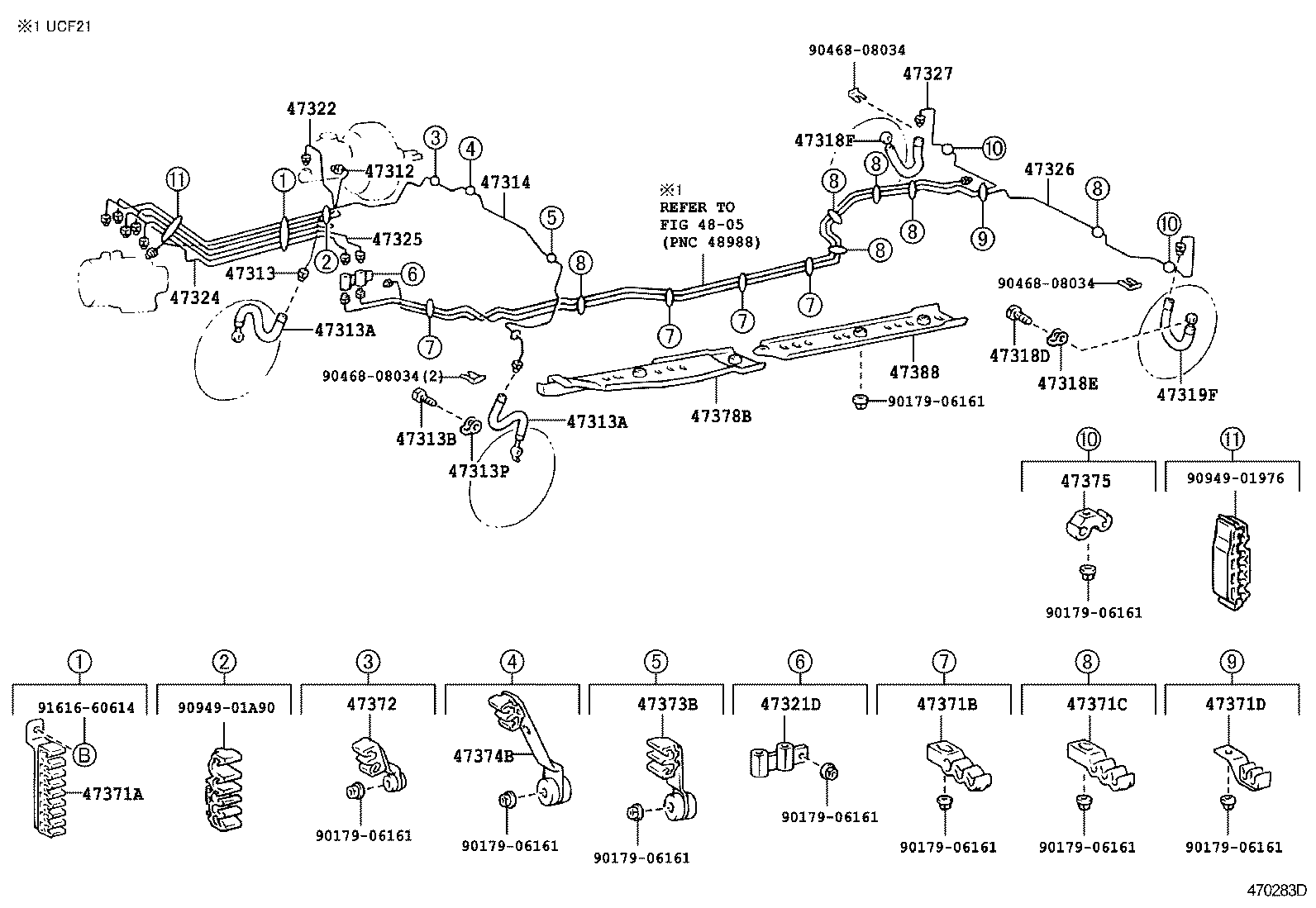

ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ) ILLUST NO. 1 OF 2(9608-9707)

CELSIOR | BRAKE TUBE CLAMP 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) 47318E - GASKET(FOR REAR FLEXIBLE HOSE) 47318F - HOSE, FLEXIBLE(FOR REAR RH) 47319F - HOSE, FLEXIBLE(FOR REAR LH) 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) 47322 - TUBE, REAR BRAKE, NO.2 47324 - TUBE, REAR BRAKE, NO.4 47325 - TUBE, REAR BRAKE, NO.5 47326 - TUBE, REAR BRAKE, NO.6 47327 - TUBE, REAR BRAKE, NO.7 47371A - CLAMP, BRAKE TUBE, NO.1 47371B - CLAMP, BRAKE TUBE, NO.6 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47372 - CLAMP, BRAKE TUBE, NO.2 47373B - CLAMP, BRAKE TUBE, NO.3 47374B - CLAMP, BRAKE TUBE, NO.4 47375 - CLAMP, BRAKE TUBE, NO.5 47378B - PROTECTOR, TUBE, UPPER 47388 - PROTECTOR, BRAKE TUBE, LOWER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
