TOYOTA AVALON MCX10-AEPGK / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

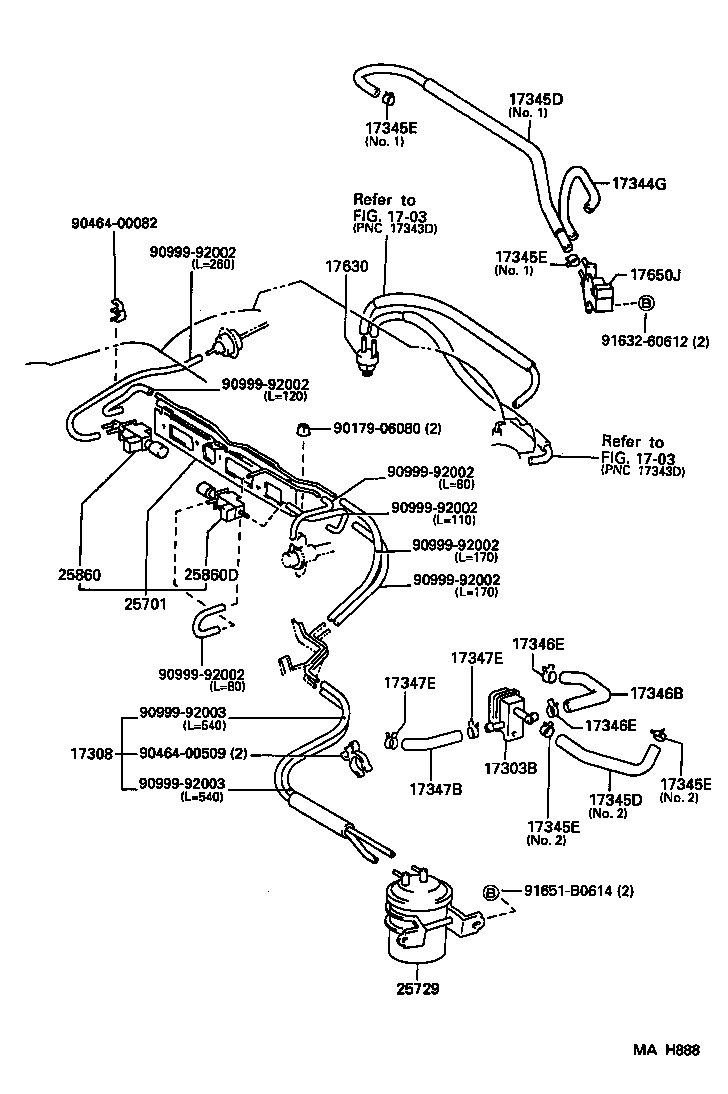

VACUUM PIPING

(9503-9608)

AVALON | VACUUM PIPING ** Refer Fig ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17344G - HOSE, AIR, NO.4 17345D - HOSE, AIR, NO.5 17345D - HOSE, AIR, NO.5 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17346B - HOSE, AIR, NO.6 17346E - CLIP(FOR AIR HOSE NO.6) 17346E - CLIP(FOR AIR HOSE NO.6) 17347B - HOSE, AIR, NO.7 17347E - CLIP(FOR AIR HOSE NO.7) 17347E - CLIP(FOR AIR HOSE NO.7) 17630 - VALVE ASSY, AIR CONTROL 17650J - VALVE, SOLENOID W/ADJUST SCREW 25701 - VALVE SET, EMISSION CONTROL 25729 - TANK, VACUUM SURGE W/BRACKET 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
