TOYOTA HIACE TRUCK YY101-PSMAS / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

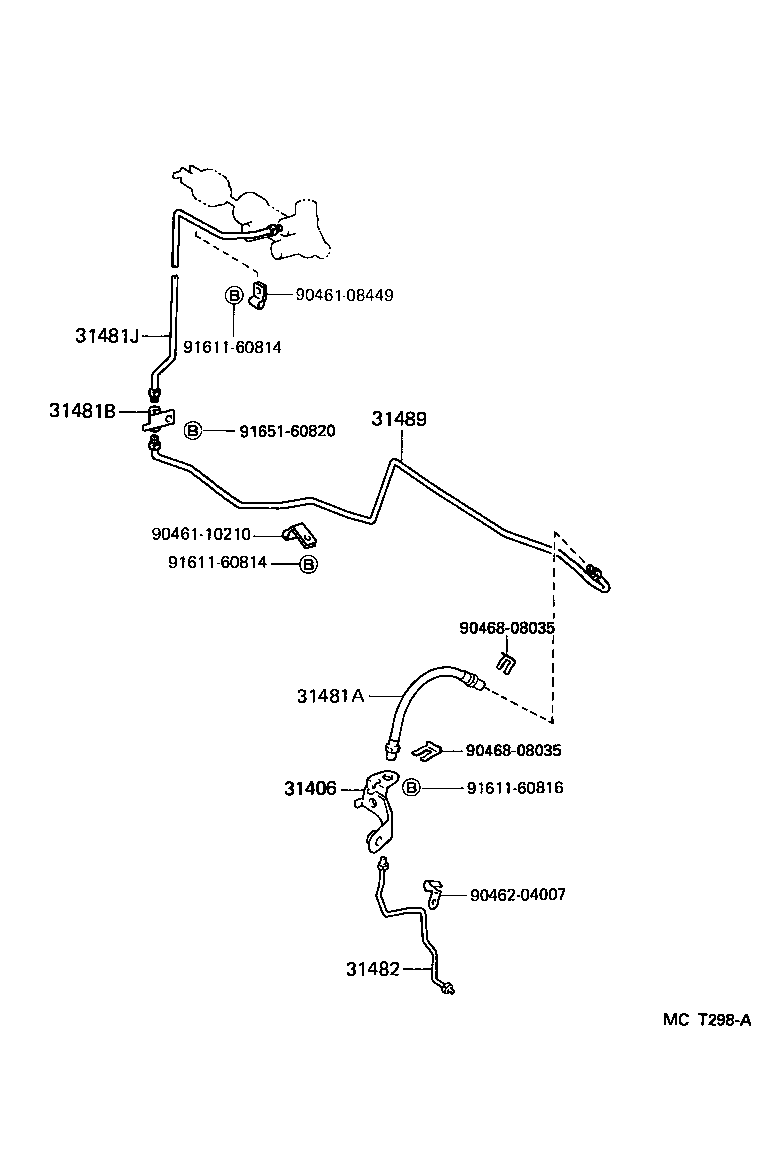

ILLUST NO. 2 OF 2(9505- )YY101

HIACE TRUCK | CLUTCH PEDAL FLEXIBLE HOSE 31406 - BRACKET SUB-ASSY, FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31481B - WAY(FOR CLUTCH TUBE) 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
