TOYOTA GRANVIA GRAND HIACE KCH12K-RRSDT / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SEAT SEAT TRACK

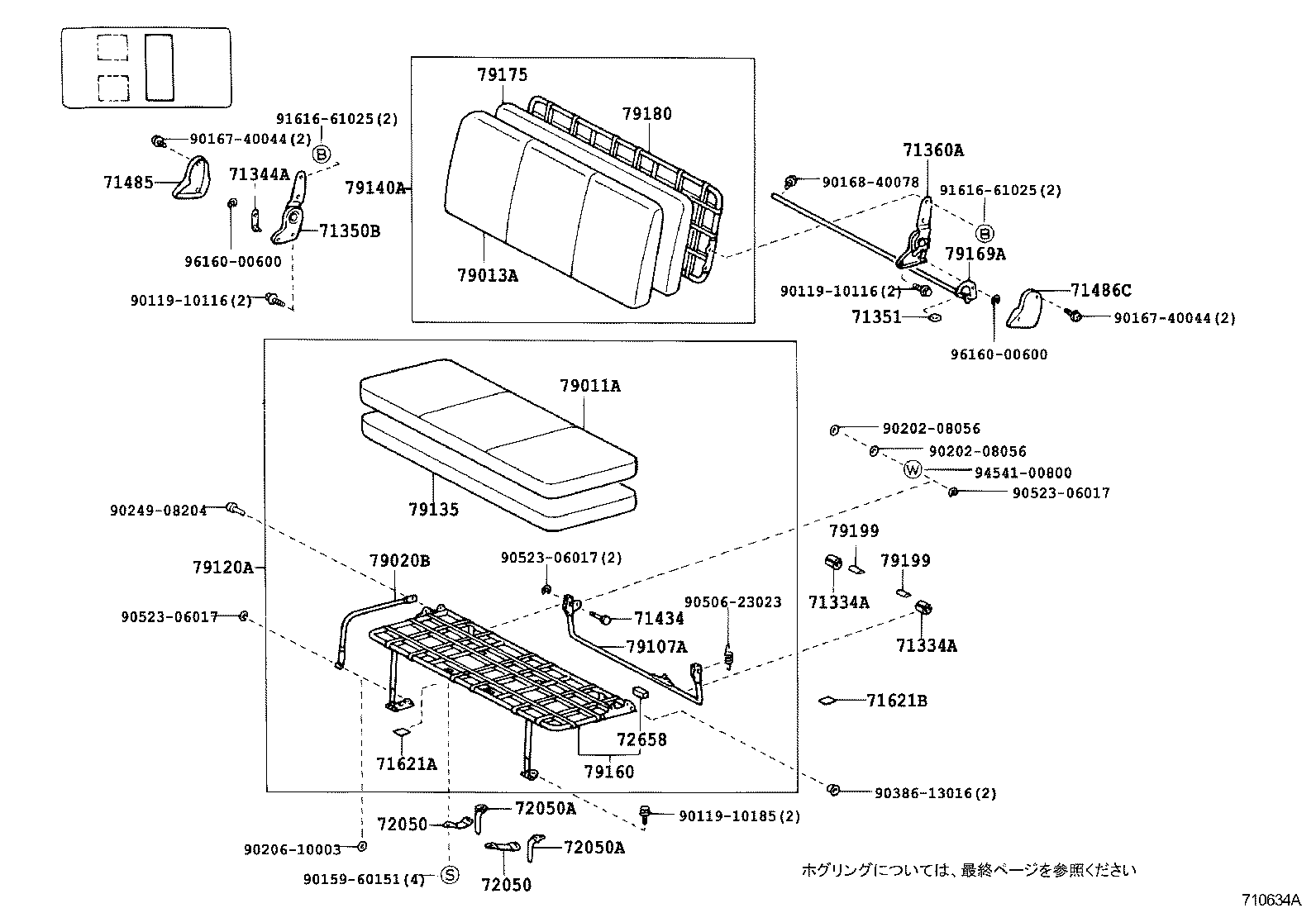

ILLUST NO. 2 OF 2(9508-9708)KCH12

GRANVIA GRAND HIACE | SEAT SEAT TRACK 71334A - STOPPER, REAR SEAT LEG 71334A - STOPPER, REAR SEAT LEG 71344A - PLATE, REAR SEAT CUSHION HINGE 71350B - HINGE ASSY, REAR SEAT, RH 71351 - KNOB, SEAT HINGE LEVER 71360A - HINGE ASSY, REAR SEAT, LH 71434 - PIN, REAR SEAT CUSHION LEG, REAR 71485 - COVER, REAR SEAT HINGE 71486C - COVER, REAR SEAT HINGE, LH 71621A - PAD, REAR SEAT CUSHION SILENCER, A 71621B - PAD, REAR SEAT CUSHION SILENCER, NO.2 72050 - BELT ASSY, REAR SEAT HOOK 72050 - BELT ASSY, REAR SEAT HOOK 72050A - BELT ASSY, REAR SEAT HOOK 72050A - BELT ASSY, REAR SEAT HOOK 72658 - KNOB, REAR SEAT HANDLE 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION 79013A - COVER SUB-ASSY, NO.1 SEAT BACK 79020B - LEG ASSY, NO.2 SEAT 79107A - LEG SUB-ASSY, NO.1 SEAT, REAR 79120A - CUSHION ASSY, NO.1 SEAT 79135 - PAD, NO.1 SEAT CUSHION 79140A - BACK ASSY, NO.1 SEAT 79160 - SPRING ASSY, NO.1 SEAT CUSHION 79169A - PLATE SUB-ASSY, NO.1 SEAT CUSHION HINGE 79175 - PAD, NO.1 SEAT BACK 79180 - SPRING ASSY, NO.1 SEAT BACK 79199 - HOLDER, NO.1 SEAT LEG STOPPER 79199 - HOLDER, NO.1 SEAT LEG STOPPER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
