TOYOTA CROWN CROWN MAJESTA UZS155-CTPZK / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

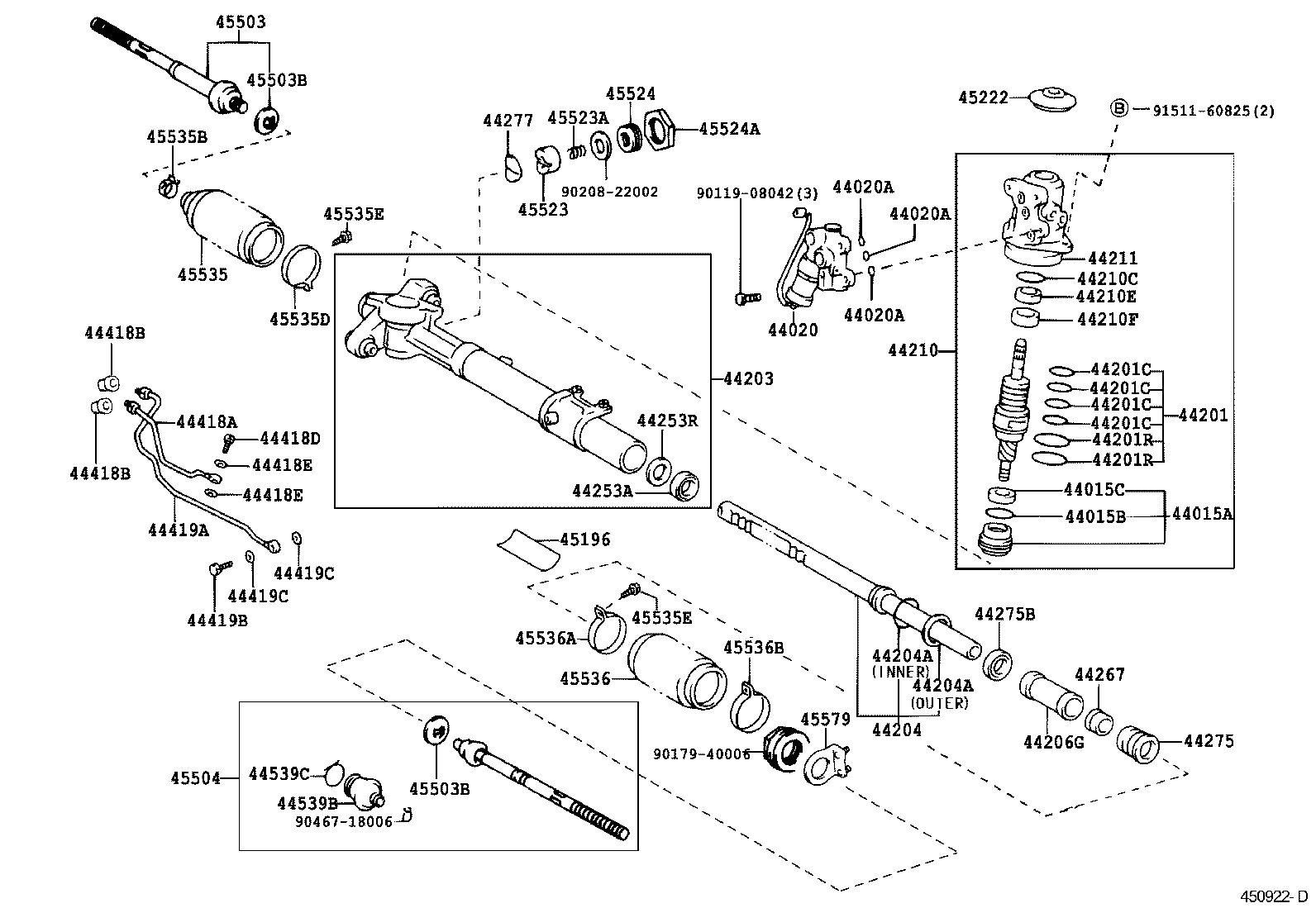

FRONT STEERING GEAR LINK

ILLUST NO. 2 OF 2(9511- )UZS155

CROWN CROWN MAJESTA | FRONT STEERING GEAR LINK 44015A - NUT SUB-ASSY, BEARING GUIDE 44015B - RING, O(FOR BEARING GUIDE NUT) 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44201R - RING(FOR POWER STEERING CONTROL VALVE) 44203 - HOUSING SUB-ASSY, POWER STEERING RACK 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) 44210 - VALVE ASSY, POWER STEERING CONTROL 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) 44211 - HOUSING, CONTROL VALVE 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) 44253R - SPACER(FOR POWER STEERING RACK HOUSING) 44267 - GUIDE, RACK END 44275 - STOPPER, CYLINDER END 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) 44277 - SEAT, RACK GUIDE 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 44539B - SEAL, RACK END DUST(FOR POWER STEERING) 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) 45196 - LABEL, STEERING SHAFT INSTALLATION CAUTION 45222 - COVER, STEERING GEAR DUST 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45504 - END SUB-ASSY, STEERING RACK, NO.2 45523 - GUIDE, RACK(FOR STEERING GEAR) 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) 45536B - CLAMP(FOR STEERING RACK BOOT NO.3) 45579 - BRACKET, REAR STEERING CONTROL SHAFT, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
