TOYOTA HILUX YN107-PRMGE / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT AXLE HOUSING DIFFERENTIAL

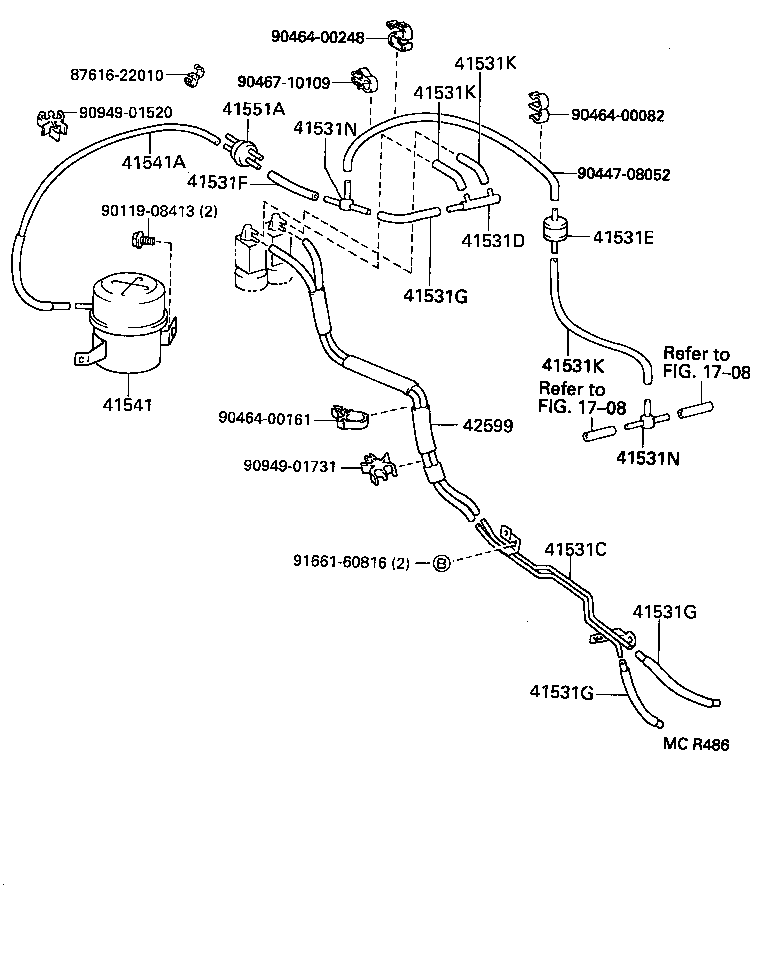

ILLUST NO. 2 OF 2(9408- )YN107

HILUX | FRONT AXLE HOUSING DIFFERENTIAL ** Refer Fig ** Refer Fig 41531C - TUBE, FRONT DIFFERENTIAL VACUUM 41531D - WAY, NO.1(FOR FRONT DIFFERENTIAL VACUUM HOSE) 41531E - VALVE, CHECK(FOR FRONT DIFFERENTIAL VACUUM) 41531F - HOSE, FRONT DIFFERENTIAL VACUUM, NO.1 41531G - HOSE, FRONT DIFFERENTIAL VACUUM, NO.2 41531G - HOSE, FRONT DIFFERENTIAL VACUUM, NO.2 41531G - HOSE, FRONT DIFFERENTIAL VACUUM, NO.2 41531K - HOSE, FRONT DIFFERENTIAL VACUUM, NO.5 41531K - HOSE, FRONT DIFFERENTIAL VACUUM, NO.5 41531K - HOSE, FRONT DIFFERENTIAL VACUUM, NO.5 41531N - WAY, NO.2(FOR FRONT DIFFERENTIAL VACUUM HOSE) 41531N - WAY, NO.2(FOR FRONT DIFFERENTIAL VACUUM HOSE) 41541 - TANK, DIFFERENTIAL VACUUM 41541A - HOSE (FOR DIFFRENTIAL VACUUM TANK) 41551A - GROMMET, FRONT DIFFERENTIAL VACUUM 42599 - HOSE, VACUUM DISCONNECTING DIFFERENTIAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
