TOYOTA CROWN CROWN MAJESTA JZS149-ATPQF / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

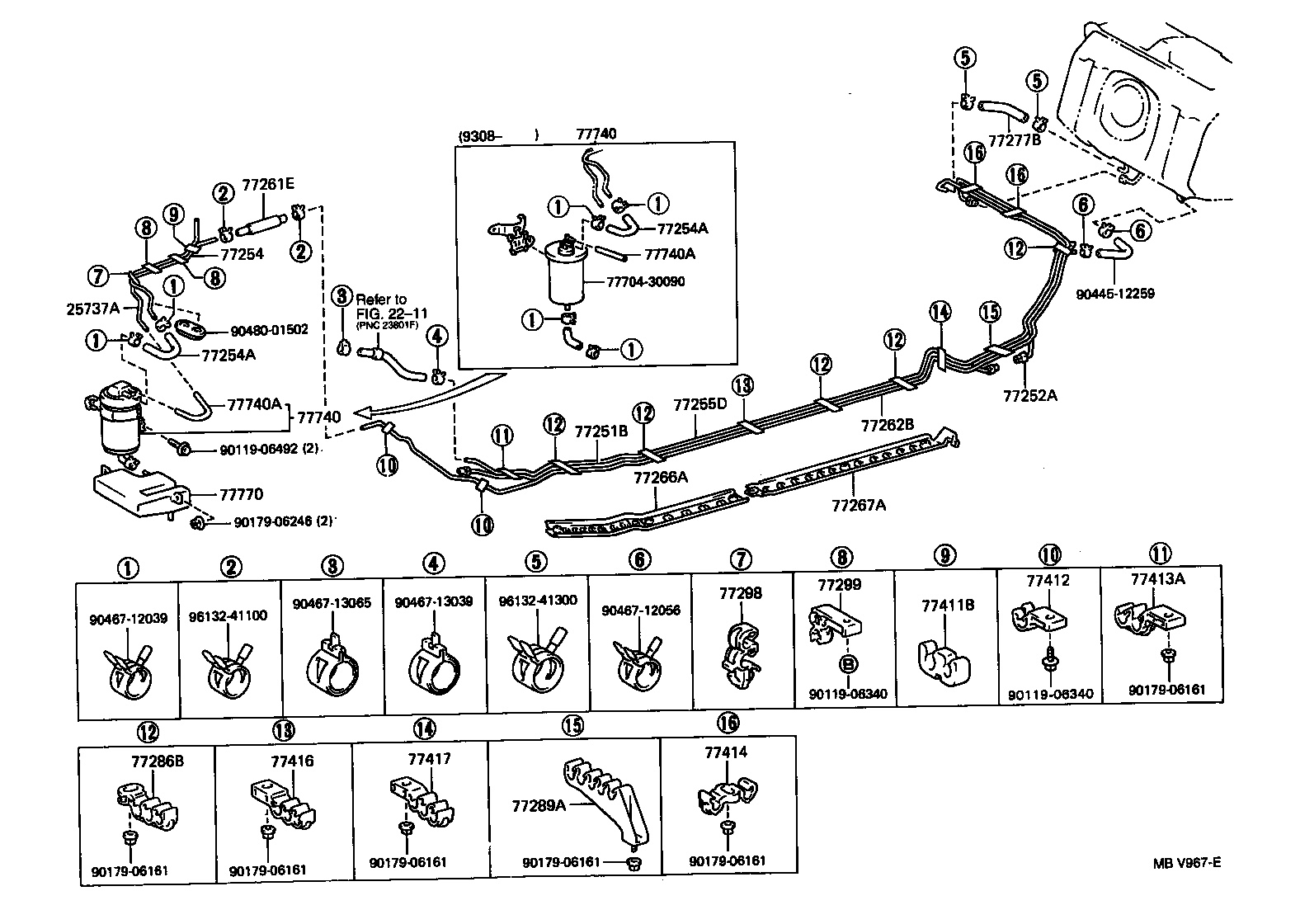

ILLUST NO. 2 OF 2(9110- )JZS147,149

CROWN CROWN MAJESTA | FUEL TANK TUBE ** Refer Fig 25737A - FUEL TUBE, NO.1 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255D - TUBE, FUEL RETURN 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77262B - TUBE, FUEL TANK TO CANISTER, NO.2 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 ** Std Part 77740 - CANISTER ASSY, CHARCOAL 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77770 - TANK ASSY, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
