TOYOTA LITEACE VAN WAGON KM30G-HBZF / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

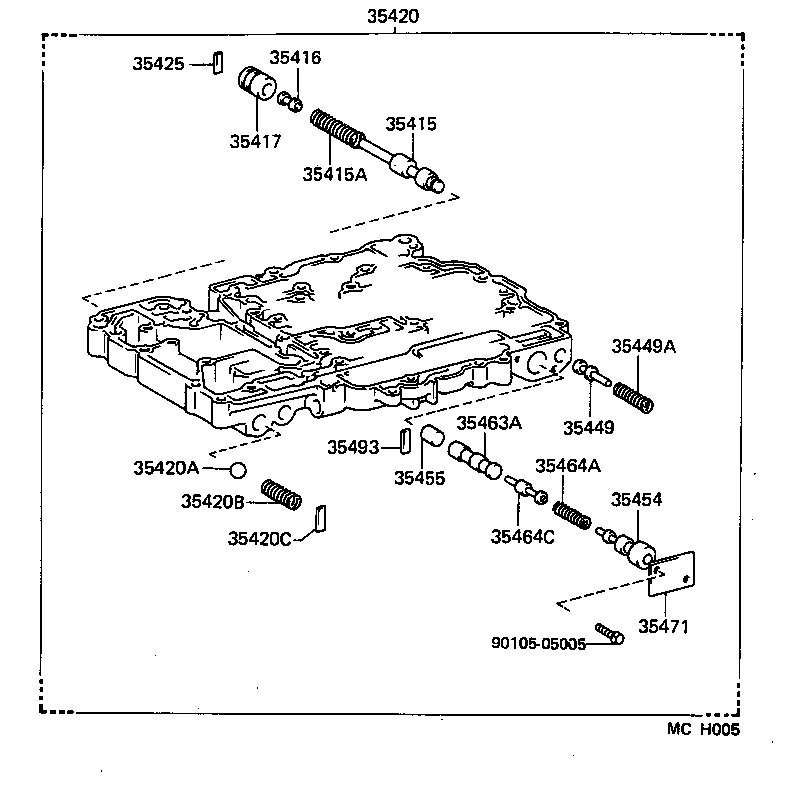

VALVE BODY OIL STRAINER ATM

A41 ILLUST NO. 2 OF 3(8808- )3FC

LITEACE VAN WAGON | VALVE BODY OIL STRAINER ATM 35415 - VALVE, PRESSURE REGULATOR 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 35417 - SLEEVE, PRESSURE REGULATOR VALVE 35420 - BODY ASSY, LOWER VALVE 35420A - BALL (FOR PRESSURE RELIEF) 35420B - SPRING (FOR PRESSURE RELIEF) 35420C - SEAT (FOR PRESSURE RELIEF) 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE 35449 - VALVE, SEQUENCE 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) 35454 - VALVE, LOW COAST SHIFT 35455 - PLUG, 1-2 SHIFT VALVE LOW 35463A - VALVE, 1-2 SHIFT, LOWER 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464C - VALVE, 1-2 SHIFT, UPPER 35471 - COVER, VALVE BODY, NO.1 35493 - SEAT, SHIFT VALVE SPRING ** Std Part
