TOYOTA LAND CRUISER S T H T FJ75-MR3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

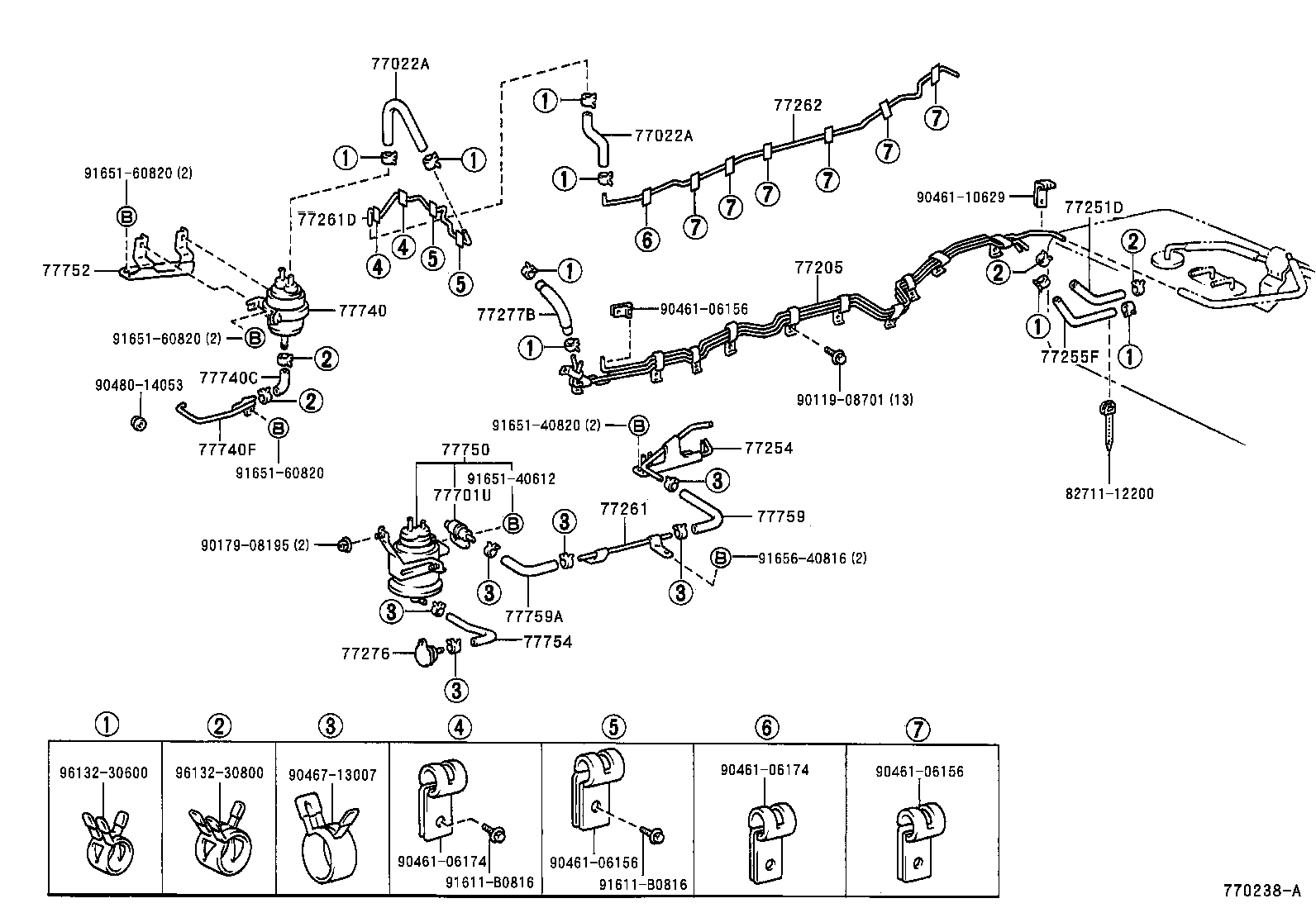

ILLUST NO. 2 OF 2(9006- )FJ75

LAND CRUISER S T H T | FUEL TANK TUBE 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) 77205 - TUBE SUB-ASSY, FUEL MAIN 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) 77254 - TUBE, FUEL EMISSION, NO.1 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261 - TUBE SUB-ASSY, FUEL EMISSION 77261D - TUBE, FUEL TANK TO CANISTER 77262 - TUBE, FUEL EMISSION, NO.2 77276 - PROTECTOR, FUEL HOSE 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77701U - HOSE, FUEL (FOR CHECK VALVE) 77740 - CANISTER ASSY, CHARCOAL 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) 77740F - TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77750 - CANISTER ASSY, CHARCOAL 77752 - BRACKET, CHARCOAL CANISTER SUPPORT 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77759 - HOSE, CHARCOAL CANISTER 77759A - HOSE, CHARCOAL CANISTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
