TOYOTA CHASER JZX81-BTPVZ / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

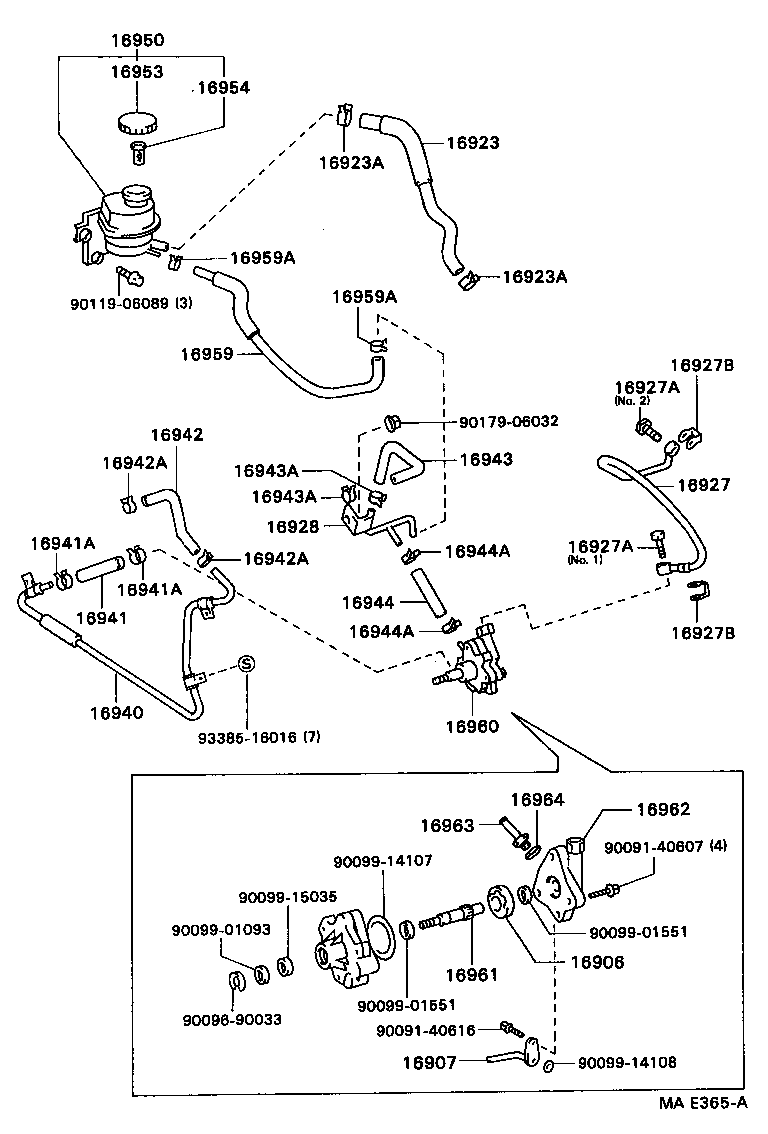

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 3(9008- )1JZGTE

CHASER | RADIATOR WATER OUTLET 16906 - GEAR SET, HYDRAULIC 16907 - PIPE SUB-ASSY, HYDRAULIC GEAR MOTOR 16923 - HOSE, HYDRAULIC MOTOR SUCTION, NO.1 16923A - CLIP(FOR SUCTION HOSE NO.1) 16923A - CLIP(FOR SUCTION HOSE NO.1) 16927 - HOSE, HYDRAULIC MOTOR PRESSURE 16927A - BOLT, UNION(FOR PRESSURE HOSE) 16927A - BOLT, UNION(FOR PRESSURE HOSE) 16927B - GASKET(FOR PRESSURE HOSE) 16927B - GASKET(FOR PRESSURE HOSE) 16928 - WAY, HYDRAULIC MOTOR RETURN HOSE 16940 - PIPE ASSY, HYDRAULIC MOTOR RETURN 16941 - HOSE, HYDRAULIC MOTOR RETURN, NO.1 16941A - CLIP(FOR RETURN NO.1) 16941A - CLIP(FOR RETURN NO.1) 16942 - HOSE, HYDRAULIC MOTOR RETURN, NO.2 16942A - CLIP(FOR RETURN HOSE NO.2) 16942A - CLIP(FOR RETURN HOSE NO.2) 16943 - HOSE, HYDRAULIC MOTOR RETURN, NO.3 16943A - CLIP(FOR RETURN HOSE NO.3) 16943A - CLIP(FOR RETURN HOSE NO.3) 16944 - HOSE, HYDRALIC MOTER RETURN, NO.4 16944A - CLIP(FOR RETURN HOSE NO.4) 16944A - CLIP(FOR RETURN HOSE NO.4) 16950 - TANK ASSY, HYDRAULIC MOTOR RESERVE 16953 - CAP, HYDRAULIC MOTOR RESERVE TANK 16954 - STRAINER, HYDRAULIC MOTOR RESERVE TANK 16959 - HOSE, HYDRALIC MOTER RETURN, NO.5 16959A - CLIP (FOR RETURN HOSE NO.5) 16959A - CLIP (FOR RETURN HOSE NO.5) 16960 - MOTOR ASSY, HYDRAULIC GEAR 16961 - SHAFT, HYDRAULIC GEAR MOTOR 16962 - COVER, HYDRAULIC GEAR MOTOR 16963 - PIPE 16964 - GASKET, HYDRAULIC GEAR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
