TOYOTA CARINA FF CT176V-CXPDS / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

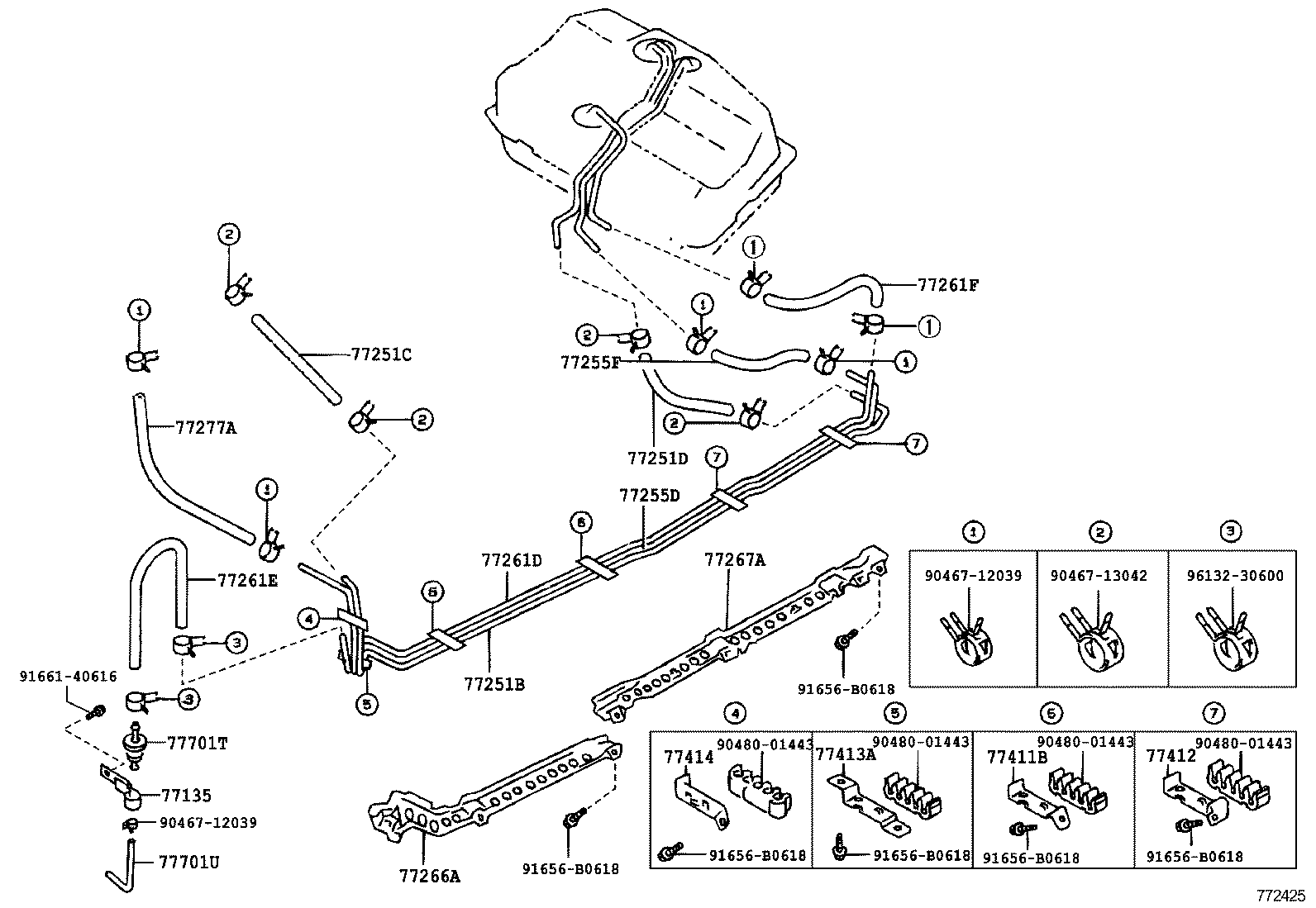

FUEL TANK TUBE

ILLUST NO. 2 OF 2(8805- )CT176

CARINA FF | FUEL TANK TUBE 77135 - BRACKET, CHECK VALVE 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77701U - HOSE, FUEL (FOR CHECK VALVE) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
