TOYOTA CAMRY VISTA VZV20-JTPQK / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

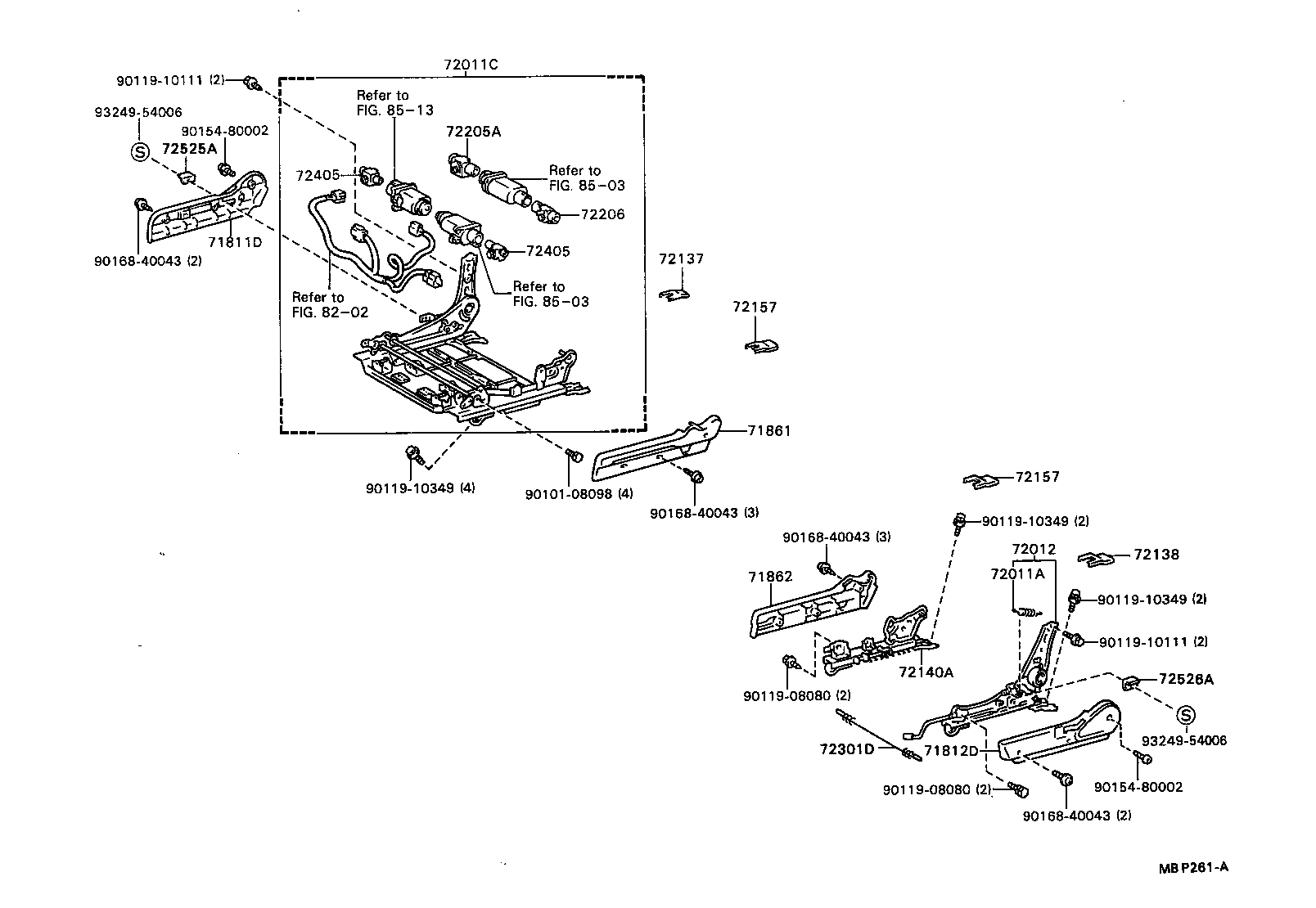

ILLUST NO. 2 OF 2(8808- )VZV20

CAMRY VISTA | FRONT SEAT SEAT TRACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH 72137 - COVER, SEAT TRACK OUTER, RH 72138 - COVER, SEAT TRACK OUTER, LH 72140A - TRACK ASSY, FRONT SEAT,INNER LH 72157 - COVER, SEAT TRACK BRACKET, INNER 72157 - COVER, SEAT TRACK BRACKET, INNER 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
