TOYOTA STARLET EP82-AGHNU / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

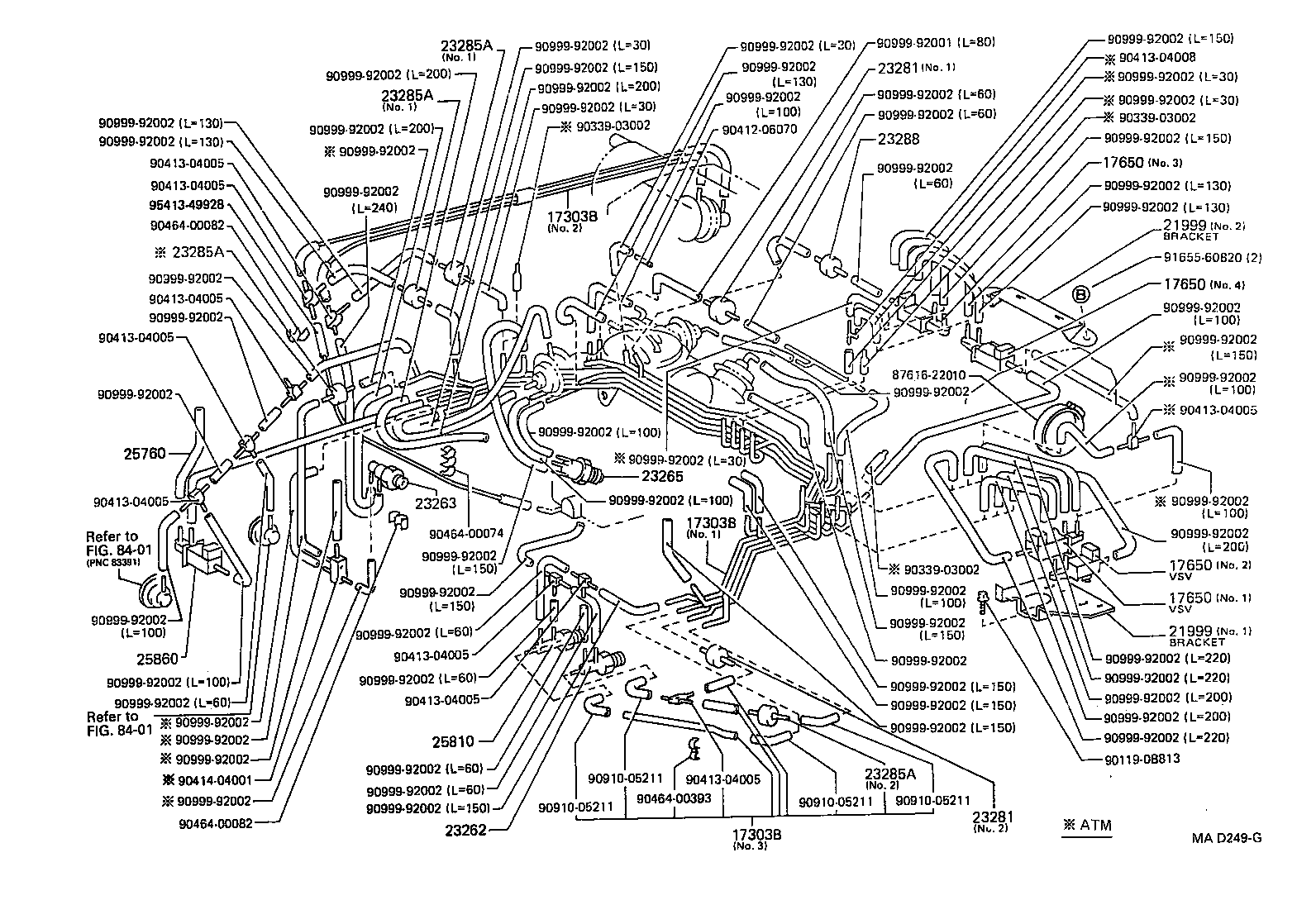

VACUUM PIPING

(8912-9201)4EF

STARLET | VACUUM PIPING 17303B - PIPE SUB-ASSY, AIR, NO.1 17303B - PIPE SUB-ASSY, AIR, NO.1 17303B - PIPE SUB-ASSY, AIR, NO.1 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 17650 - VALVE ASSY, VACUUM SWITCHING 21999 - BRACKET, VACUUM SWITCHING VALVE 21999 - BRACKET, VACUUM SWITCHING VALVE 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 23265 - FILTER, GAS, NO.1 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23281 - VALVE, VACUUM TRANSMITTING, NO.1 23285A - VALVE, CHECK, NO.1 23285A - VALVE, CHECK, NO.1 23285A - VALVE, CHECK, NO.1 23285A - VALVE, CHECK, NO.1 23288 - JET, NO.1 25760 - HOSE ASSY, VACUUM TRANSMITTING 25810 - VALVE ASSY, BIMETAL 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
