TOYOTA HILUX LN61V-MSX / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

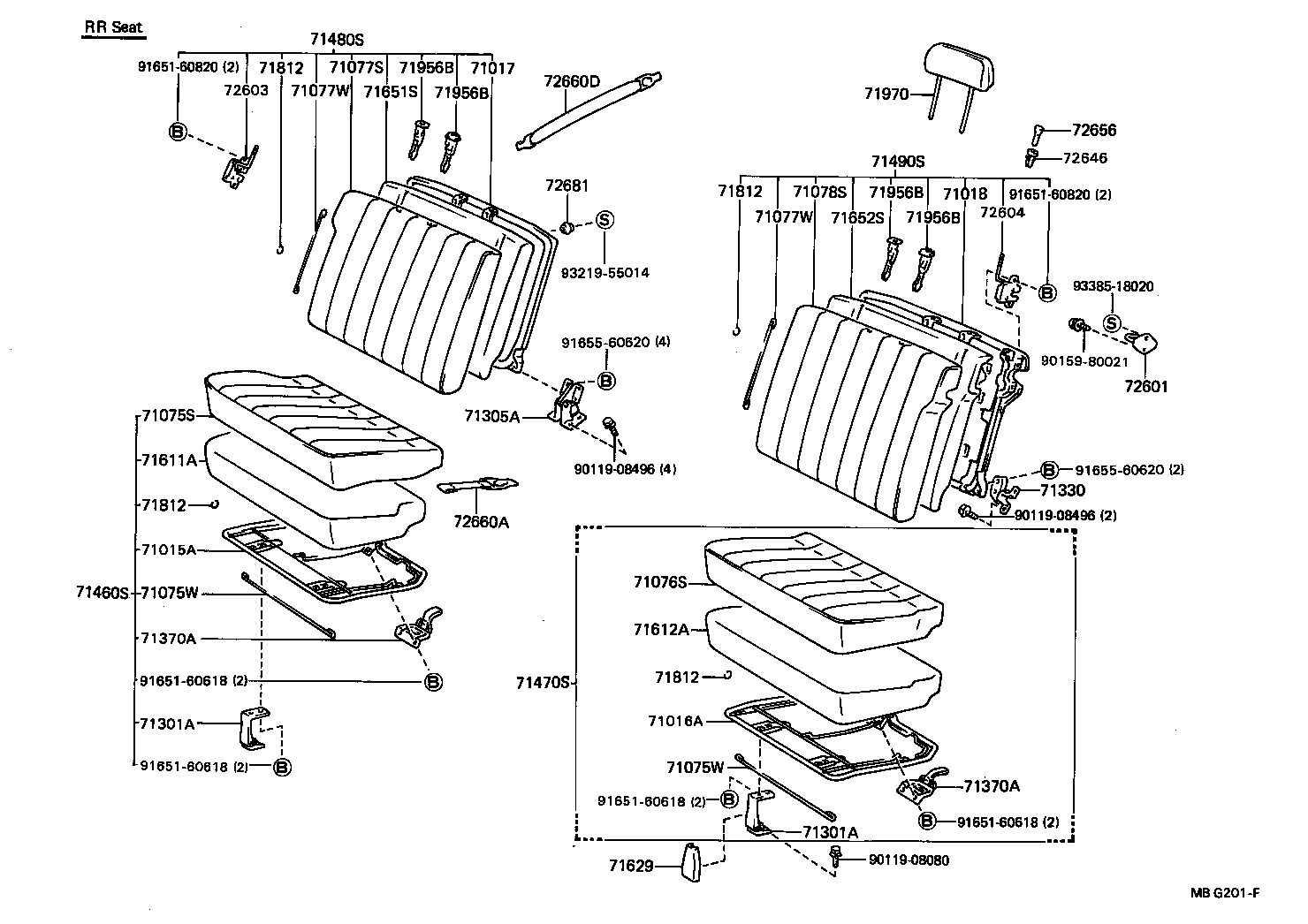

SEAT SEAT TRACK

ILLUST NO. 2 OF 2(8405- )V,WG

HILUX | SEAT SEAT TRACK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71075W - WIRE, REAR SEAT CUSHION COVER 71075W - WIRE, REAR SEAT CUSHION COVER 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71077W - WIRE, REAR SEAT BACK COVER 71077W - WIRE, REAR SEAT BACK COVER 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER 71330 - HINGE ASSY, REAR SEAT CUSHION 71370A - HOLDER ASSY, REAR SEAT CUSHION 71370A - HOLDER ASSY, REAR SEAT CUSHION 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) 71611A - PAD, REAR SEAT CUSHION, RH 71612A - PAD, REAR SEAT CUSHION, LH 71629 - COVER, REAR SEAT CUSHION HINGE 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71956B - SUPPORT, REAR SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH 72646 - GROMMET, REAR SEAT BACK STOP BUTTON 72656 - BUTTON, REAR SEAT BACK STOP RELEASE 72660A - SUPPORT ASSY, REAR SEAT CUSHION 72660D - SUPPORT ASSY, REAR SEAT CUSHION 72681 - HOOK, REAR SEAT BACK LOCK, LOWER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
