TOYOTA SPRINTER CARIB AL25G-MWFNS / POWERTRAIN-CHASSIS / FRONT AXLE HOUSING DIFFERENTIAL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

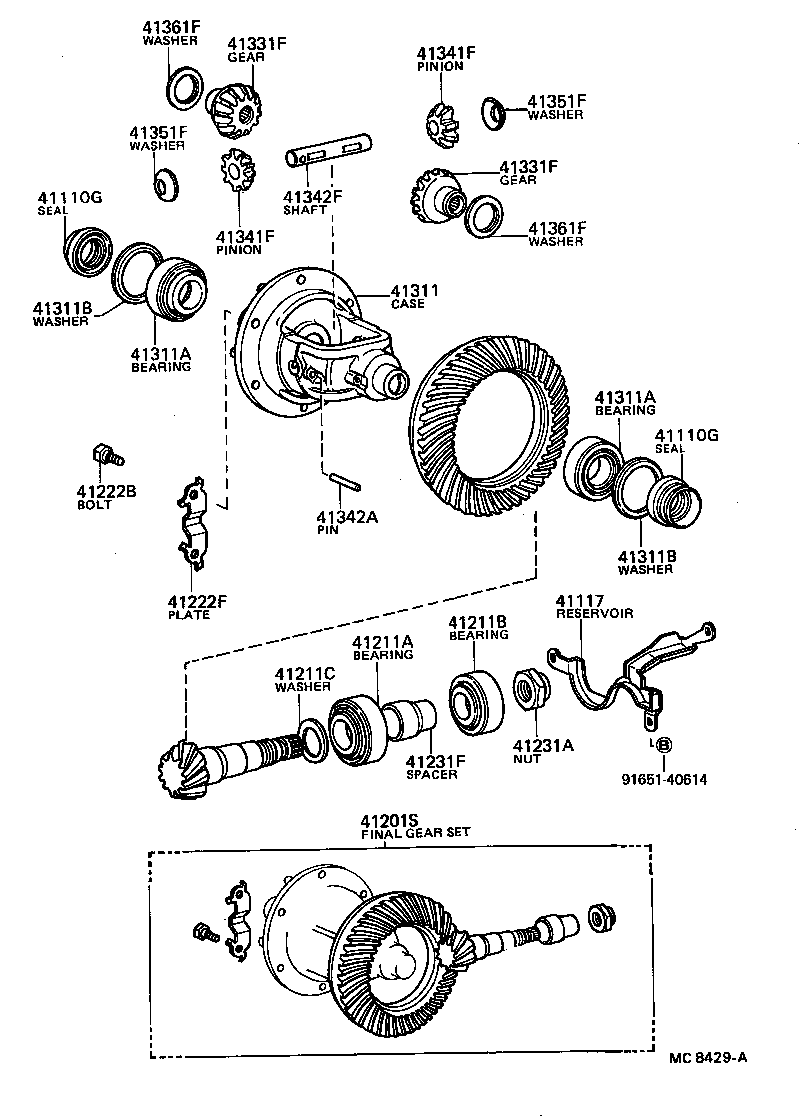

FRONT AXLE HOUSING DIFFERENTIAL

ILLUST NO. 2 OF 2(8208- )6F

SPRINTER CARIB | FRONT AXLE HOUSING DIFFERENTIAL 41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE) 41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE) 41117 - RESERVOIR, DIFFERENTIAL OIL 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) 41211C - GEAR, DIFFERENTIAL RING 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK 41231A - NUT, DRIVE PINION LOCK 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING 41311 - CASE, FRONT DIFFERENTIAL 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41331F - GEAR, FRONT DIFFERENTIAL SIDE 41341F - PINION, FRONT DIFFERENTIAL 41341F - PINION, FRONT DIFFERENTIAL 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 ** Std Part
