TOYOTA SPRINTER CARIB AL25G-MWFNS / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

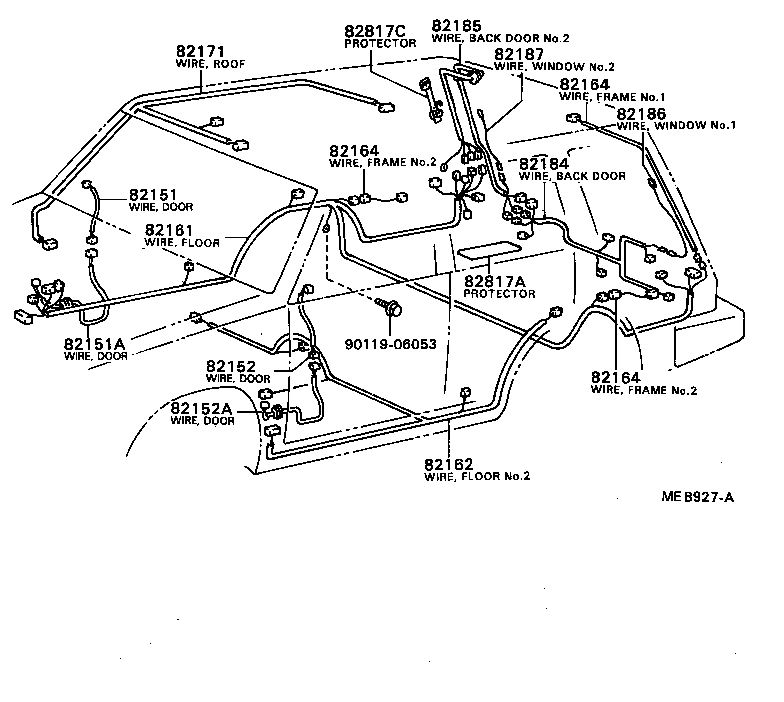

WIRING CLAMP

ILLUST NO. 2 OF 4(8208- )

SPRINTER CARIB | WIRING CLAMP 82151 - WIRE, FRONT DOOR, RH 82151A - WIRE, FRONT DOOR, NO.2, RH 82152 - WIRE, FRONT DOOR, LH 82152A - WIRE, FRONT DOOR, NO.2, LH 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82164 - WIRE, FRAME 82164 - WIRE, FRAME 82164 - WIRE, FRAME 82171 - WIRE, ROOF, NO.1 82184 - WIRE, BACK DOOR, NO.1 82185 - WIRE, BACK DOOR, NO.2 82186 - WIRE, REAR WINDOW, NO.1 82187 - WIRE, REAR WINDOW, NO.2 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817C - PROTECTOR, WIRING HARNESS, NO.4 ** Std Part
