TOYOTA HIACE TRUCK LH24-QDGT / BODY / REAR BODY GUARD FRAME TAIL GATE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR BODY GUARD FRAME TAIL GATE

(8408- )TB

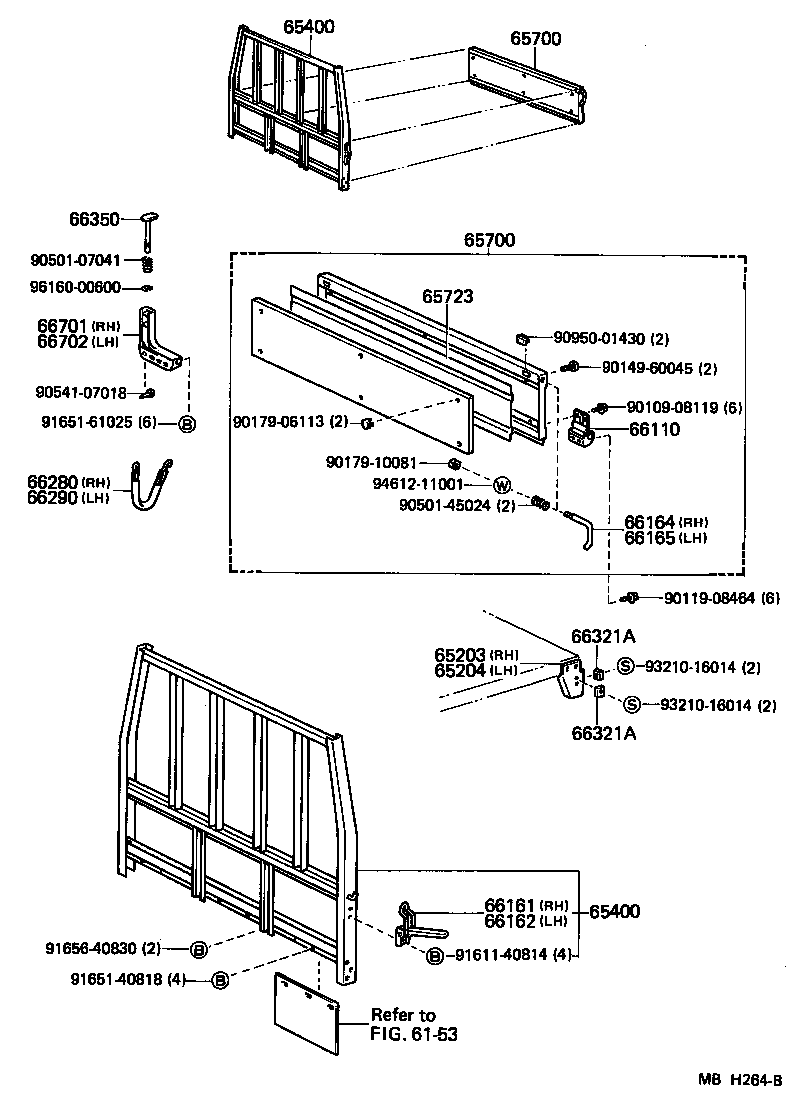

HIACE TRUCK | REAR BODY GUARD FRAME TAIL GATE ** Refer Fig 65203 - BRACKET SUB-ASSY, GATE BUMPER, RH 65204 - BRACKET SUB-ASSY, GATE BUMPER, LH 65400 - FRAME ASSY, REAR BODY GUARD 65400 - FRAME ASSY, REAR BODY GUARD 65700 - GATE ASSY, REAR BODY TAIL 65700 - GATE ASSY, REAR BODY TAIL 65723 - PANEL, TAIL GATE 66110 - HINGE ASSY, TAIL GATE 66161 - HANDLE, SIDE GATE LATCH, RH 66162 - HANDLE, SIDE GATE LATCH, LH 66164 - HANDLE, TAIL GATE LATCH, RH 66165 - HANDLE, TAIL GATE LATCH, LH 66280 - CHAIN ASSY, TAIL GATE, RH 66290 - CHAIN ASSY, TAIL GATE, LH 66321A - BUMPER, GATE RUBBER 66321A - BUMPER, GATE RUBBER 66350 - HANDLE ASSY, SUPPORT CORNER 66701 - SUPPORT SUB-ASSY, SIDE GATE, RH 66702 - SUPPORT SUB-ASSY, SIDE GATE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
