TOYOTA DYNA BU20D-QRMTUMY3 / BODY / REAR BODY SIDE GATE LOCK TAIL GATE LOCK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

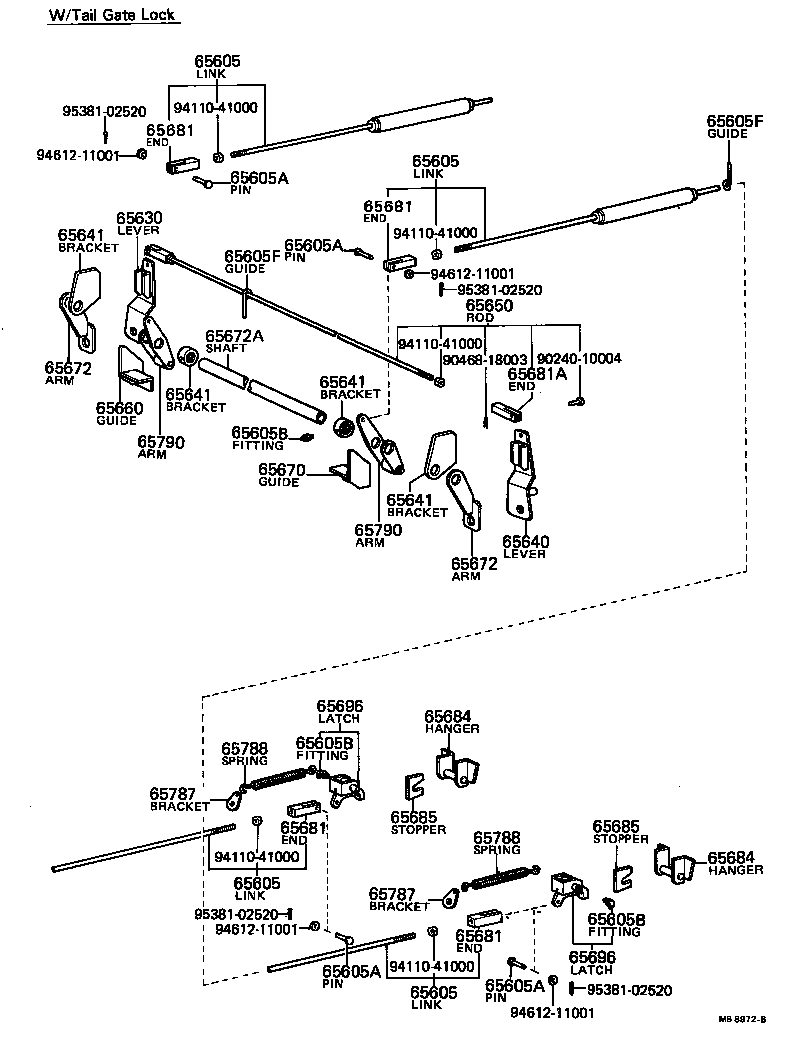

REAR BODY SIDE GATE LOCK TAIL GATE LOCK

ILLUST NO. 2 OF 3(7904-8008)DM3

DYNA | REAR BODY SIDE GATE LOCK TAIL GATE LOCK 65605 - LINK SUB-ASSY, TAIL GATE LOCK 65605 - LINK SUB-ASSY, TAIL GATE LOCK 65605 - LINK SUB-ASSY, TAIL GATE LOCK 65605 - LINK SUB-ASSY, TAIL GATE LOCK 65605A - PIN, TAIL GATE LOCK LINK 65605A - PIN, TAIL GATE LOCK LINK 65605A - PIN, TAIL GATE LOCK LINK 65605A - PIN, TAIL GATE LOCK LINK 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) 65605B - FITTING, GREASE SMALL(FOR TAIL GATE LOCK LINK) 65605F - GUIDE, ROD SUPPORT 65605F - GUIDE, ROD SUPPORT 65630 - LEVER ASSY, REAR BODY DECK HINGE PIN CONTROL, RH 65640 - LEVER ASSY, REAR BODY DECK HINGE PIN CONTROL, LH 65641 - BRACKET, TORQUE SHAFT SUPPORT 65641 - BRACKET, TORQUE SHAFT SUPPORT 65641 - BRACKET, TORQUE SHAFT SUPPORT 65641 - BRACKET, TORQUE SHAFT SUPPORT 65650 - ROD ASSY, HINGE PIN CONTROL 65660 - GUIDE, ROLLER, RH 65670 - GUIDE, ROLLER, LH 65672 - ARM, TAIL GATE LOCK ROLLER 65672 - ARM, TAIL GATE LOCK ROLLER 65672A - SHAFT, ROLLER 65681 - END, TAIL GATE LOCK LINK 65681 - END, TAIL GATE LOCK LINK 65681 - END, TAIL GATE LOCK LINK 65681 - END, TAIL GATE LOCK LINK 65681A - END, TAIL GATE LOCK LINK 65684 - HANGER, TAIL GATE 65684 - HANGER, TAIL GATE 65685 - STOPPER, TAIL GATE HANGER 65685 - STOPPER, TAIL GATE HANGER 65696 - LATCH, TAIL GATE LOCK 65696 - LATCH, TAIL GATE LOCK 65787 - BRACKET, RETURN SPRING 65787 - BRACKET, RETURN SPRING 65788 - SPRING, TAIL GATE CONTROL ROD RETURN 65788 - SPRING, TAIL GATE CONTROL ROD RETURN 65790 - ARM SUB-ASSY, ROLLER 65790 - ARM SUB-ASSY, ROLLER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
