TOYOTA NOAH ZRR80R-APXSP / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

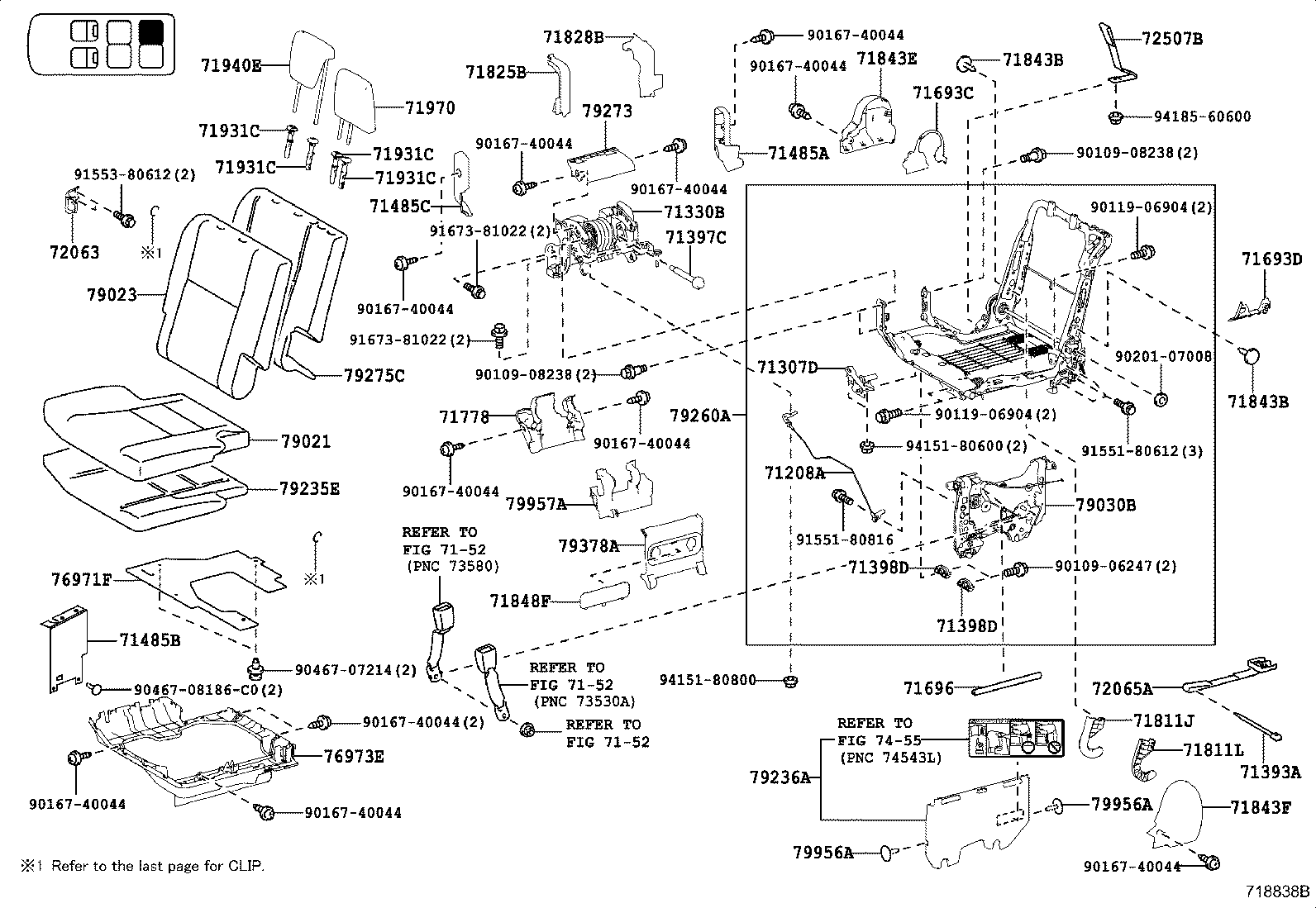

SEAT SEAT TRACK

REAR NO.2 SEAT(RH) (1401- )

NOAH | SEAT SEAT TRACK 71208A - WIRE SUB-ASSY, REAR SEAT CUSHION 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH 71330B - HINGE ASSY, REAR NO.2 SEAT, RH 71393A - BAND, REAR SEAT CUSHION, RH 71397C - STOPPER, REAR SEAT 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71398D - GUIDE, REAR SEAT CUSHION SUPPORT 71485A - COVER, REAR SEAT HINGE, NO.2 RH 71485B - COVER, REAR SEAT HINGE 71485C - COVER, REAR SEAT HINGE, RH ** Refer Fig ** Refer Fig ** Refer Fig 71693C - COVER, REAR SEAT CUSHION HINGE, OUTER RH 71693D - COVER, REAR SEAT CUSHION HINGE, INNER RH 71696 - PROTECTOR, REAR SEAT, NO.2 71778 - COVER, REAR SEAT SIDE HINGE MALE, RH 71811J - COVER, RECLINING ADJUSTER, RH 71811L - COVER, RECLINING ADJUSTER, RH 71825B - MOULDING, REAR SEAT CUSHION, RH 71828B - MOULDING, REAR SEAT CUSHION, REAR RH 71843B - CLIP, REAR SEAT RECLINING COVER 71843B - CLIP, REAR SEAT RECLINING COVER 71843E - COVER, REAR SEAT RECLINING, RH (FOR RH SEAT) 71843F - COVER, REAR SEAT RECLINING, LH (FOR RH SEAT) 71848F - CAP, SEAT ADJUSTER COVER, NO.1 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71940E - HEADREST ASSY, NO.2 SEAT 71970 - HEADREST ASSY, REAR SEAT 72063 - HOOK SUB-ASSY, REAR SEAT, RH 72065A - HOOK SUB-ASSY,REAR SEAT CUSHION LOCK,RH 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH ** Refer Fig 76971F - COVER, REAR UNDER 76973E - COVER, REAR UNDER SIDE, RH 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79030B - LEG ASSY, REAR NO.2 SEAT, RH 79235E - PAD, NO.2 SEAT CUSHION, RH 79236A - COVER, NO.2 SEAT LEG 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH 79273 - COVER, NO.2 SEAT HINGE 79275C - PAD, NO.2 SEAT BACK, RH 79378A - COVER, NO.3 SEAT CUSHION HINGE, RH 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) 79956A - CLIP (FOR REAR SEAT LEG BRACKET COVER) 79957A - COVER, REAR SEAT REAR BRACKET, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
