TOYOTA NOAH ZRR80R-APXSP / BODY / ROOF PANEL BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

ROOF PANEL BACK PANEL

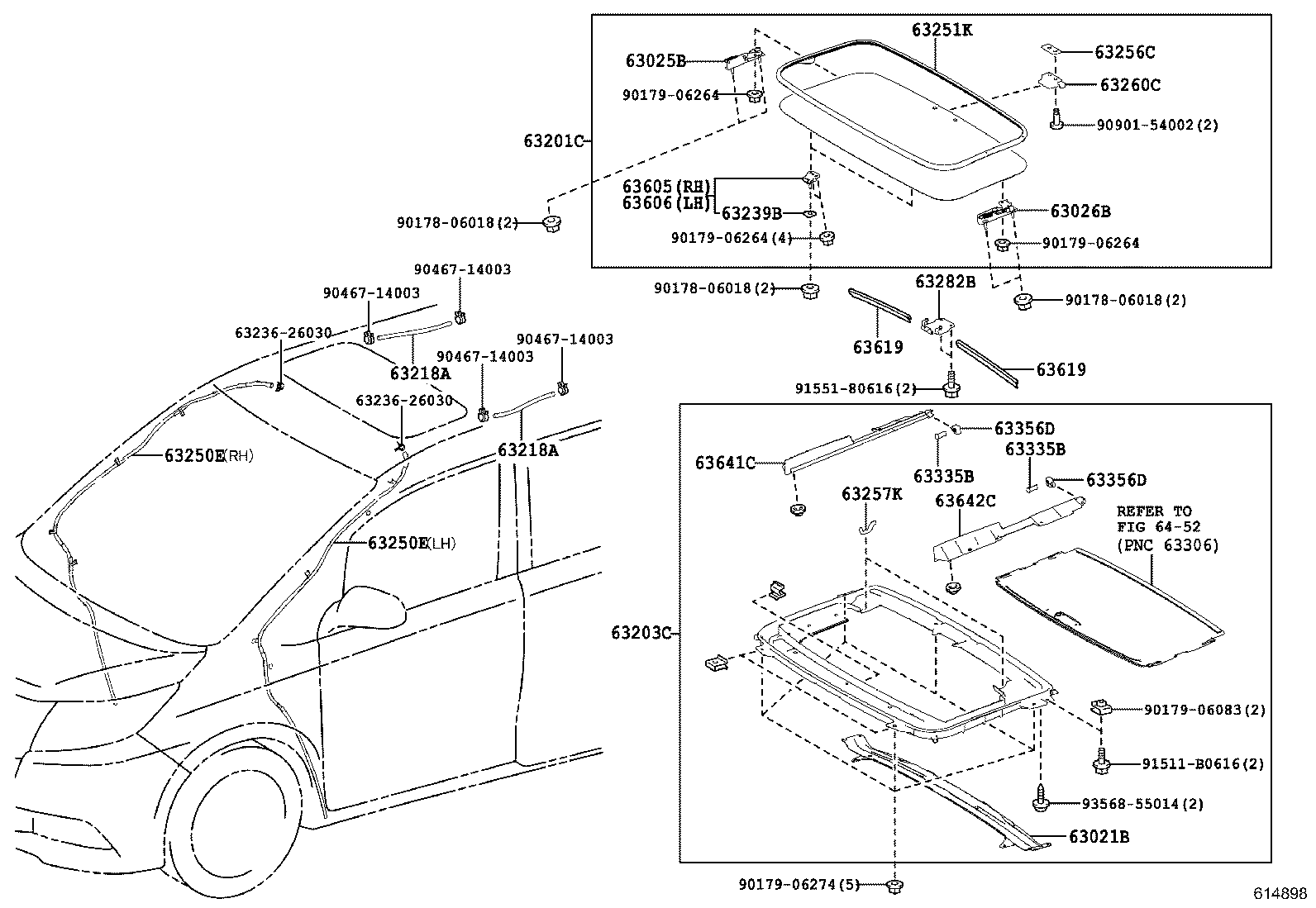

TILT ROOF HOUSING ILLUST NO. 2 OF 3(1401- )SI

NOAH | ROOF PANEL BACK PANEL 63021B - STRENGTH SUB-ASSY, ROOF PANEL 63025B - LINK SUB-ASSY, TILT ROOF, RH 63026B - LINK SUB-ASSY, TILT ROOF, LH 63201C - GLASS SUB-ASSY, TILT ROOF 63203C - HOUSING SUB-ASSY, TILT ROOF 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) ** Std Part ** Std Part 63239B - PAD, TILT ROOF GLASS 63250E - HOSE ASSY, TILT ROOF DRAIN 63250E - HOSE ASSY, TILT ROOF DRAIN 63251K - WEATHERSTRIP, TILT ROOF 63256C - SEAL, TILT ROOF GLASS 63257K - SEAL, TILT ROOF HOUSING 63260C - HANDLE ASSY, TILT ROOF LOCK 63282B - STRIKER, TILT ROOF LOCK 63335B - CUSHION, SUNSHADE TRIM, NO.1 63335B - CUSHION, SUNSHADE TRIM, NO.1 63356D - HOLDER, SUNSHADE TRIM 63356D - HOLDER, SUNSHADE TRIM 63605 - HINGE SUB-ASSY, TILT ROOF, RH 63606 - HINGE SUB-ASSY, TILT ROOF, LH 63619 - COVER, TILT ROOF PANEL 63619 - COVER, TILT ROOF PANEL 63641C - RAIL, SUNSHADE, NO.1 FRONT RH 63642C - RAIL, SUNSHADE, NO.1 FRONT LH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
