TOYOTA PREVIA AHR20R-GFXDB / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

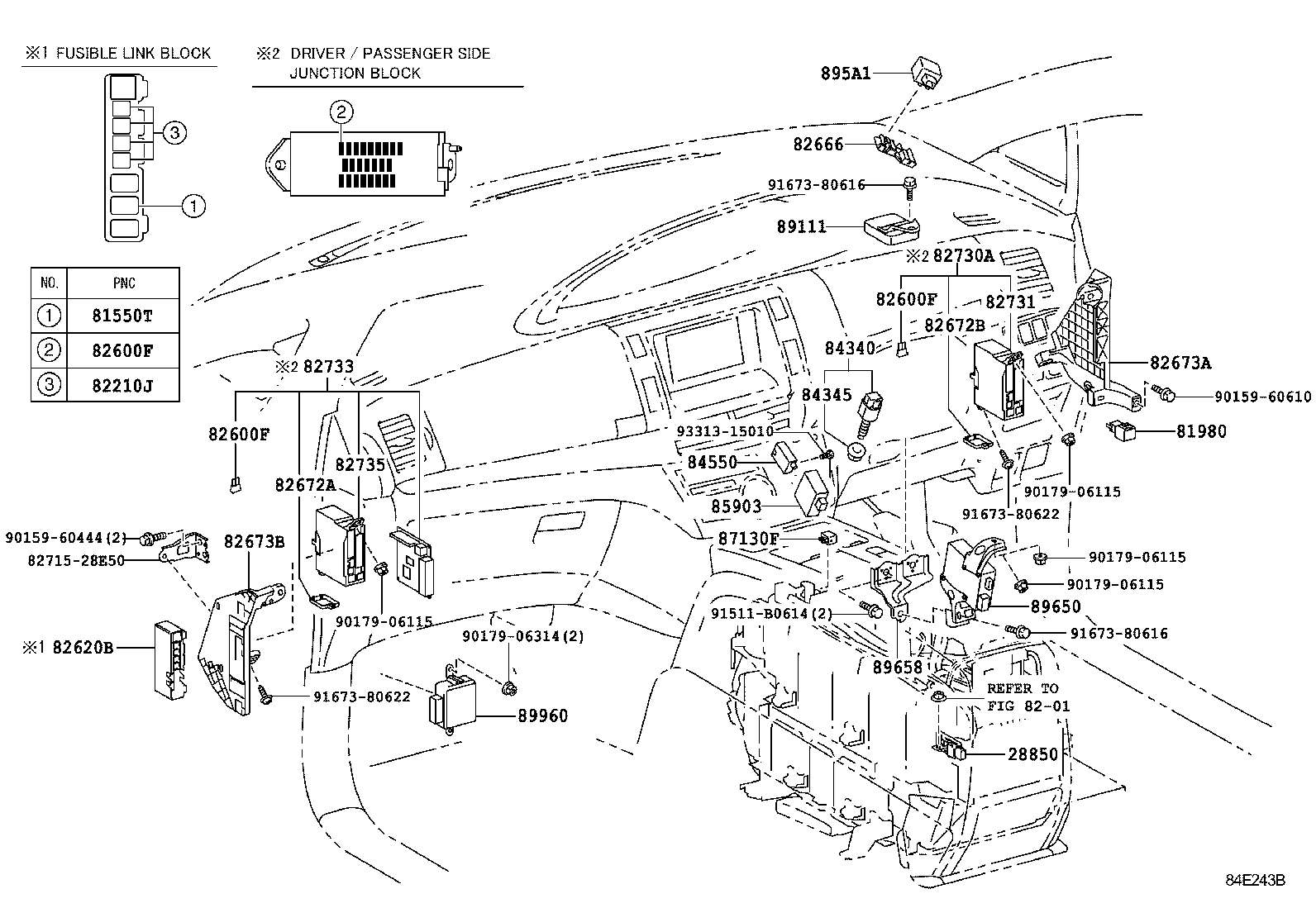

SWITCH RELAY COMPUTER

COWL ILLUST NO. 3 OF 6(1304- )

PREVIA | SWITCH RELAY COMPUTER 28850 - SENSOR ASSY, BATTERY CURRENT 81550T - RELAY, BACK UP LAMP 81980 - FLASHER ASSY, TURN SIGNAL ** Refer Fig 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82620B - BLOCK ASSY, FUSIBLE LINK 82666 - HOLDER, CONNECTOR 82672A - COVER, JUNCTION BLOCK 82672B - COVER, JUNCTION BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK ** Std Part 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION 82731 - BLOCK, DRIVER SIDE JUNCTION 82733 - BLOCK, PASSENGER SIDE JUNCTION 82735 - BLOCK, PASSENGER SIDE JUNCTION 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84550 - SWITCH ASSY, PARKING BRAKE 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL 87130F - RELAY, BATTERY BLOWER, NO.1 89111 - COMPUTER, NETWORK GATEWAY 895A1 - RELAY, STOP LAMP CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89658 - BRACKET, POWER STEERING COMPUTER 89960 - COMPUTER ASSY, HEADLAMP LEVELING ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
