TOYOTA HIACE TRH223L-LEPNK / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

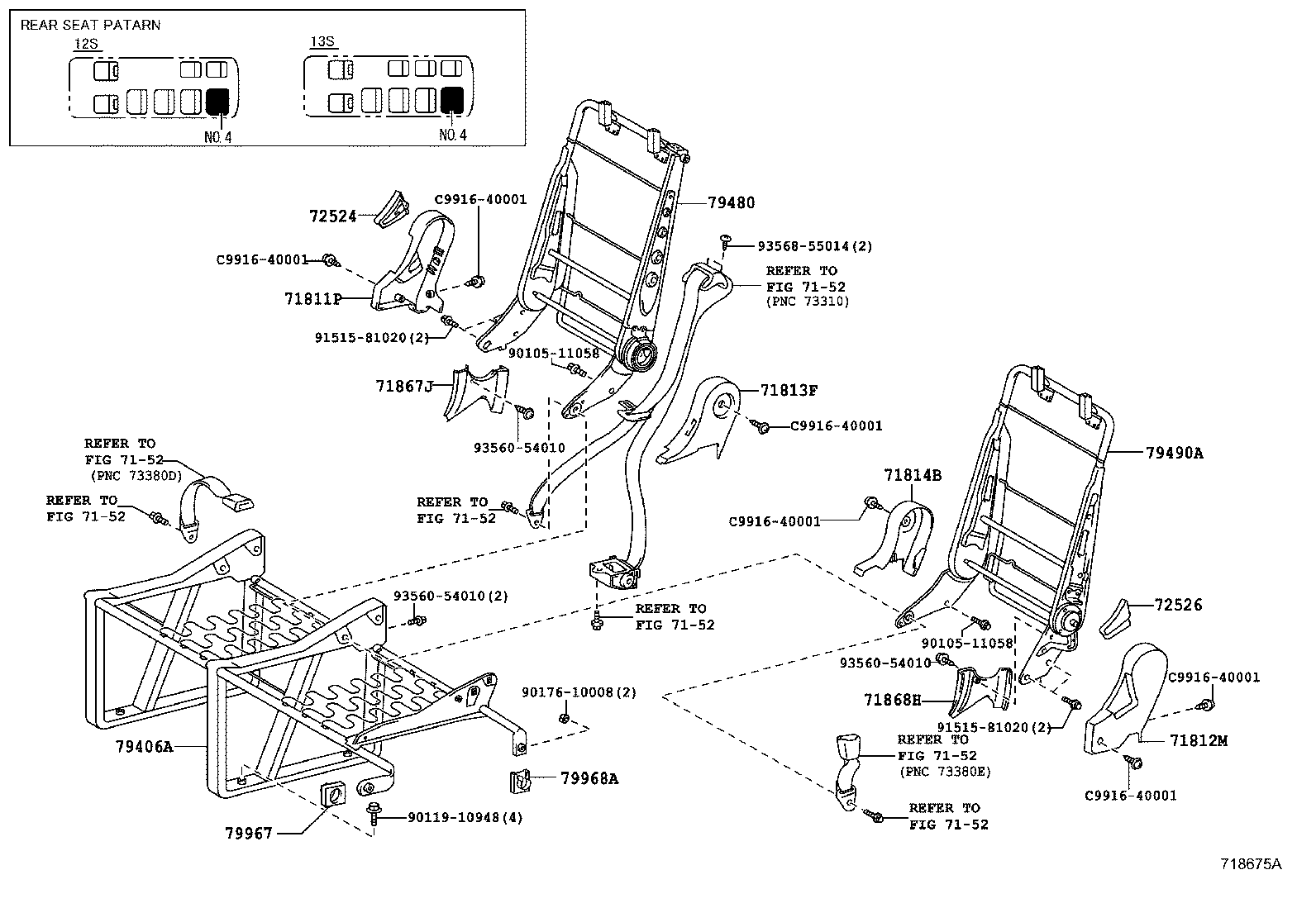

SEAT SEAT TRACK

*RES, *45, FOR 2 PERSONS(NO.4 FRAMEILLUST NO. 5 OF 7(1312- )KDH223,TRH223..12S,13S

HIACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71811P - COVER, RECLINING ADJUSTER, RH 71812M - COVER, RECLINING ADJUSTER, LH 71813F - SHIELD, FRONT SEAT BACK, RH 71814B - SHIELD, FRONT SEAT BACK, LH 71867J - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868H - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH 72524 - HANDLE, RECLINING ADJUSTER RELEASE 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH 79406A - LEG SUB-ASSY, NO.4 SEAT, LH 79480 - SPRING ASSY, NO.4 SEAT BACK 79490A - SPRING ASSY, NO.4 SEAT BACK, LH 79967 - COVER, REAR SEAT LEG SIDE, NO.4 79968A - COVER, REAR SEAT LEG SIDE, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
