TOYOTA HIACE KDH202L-REMDYV / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

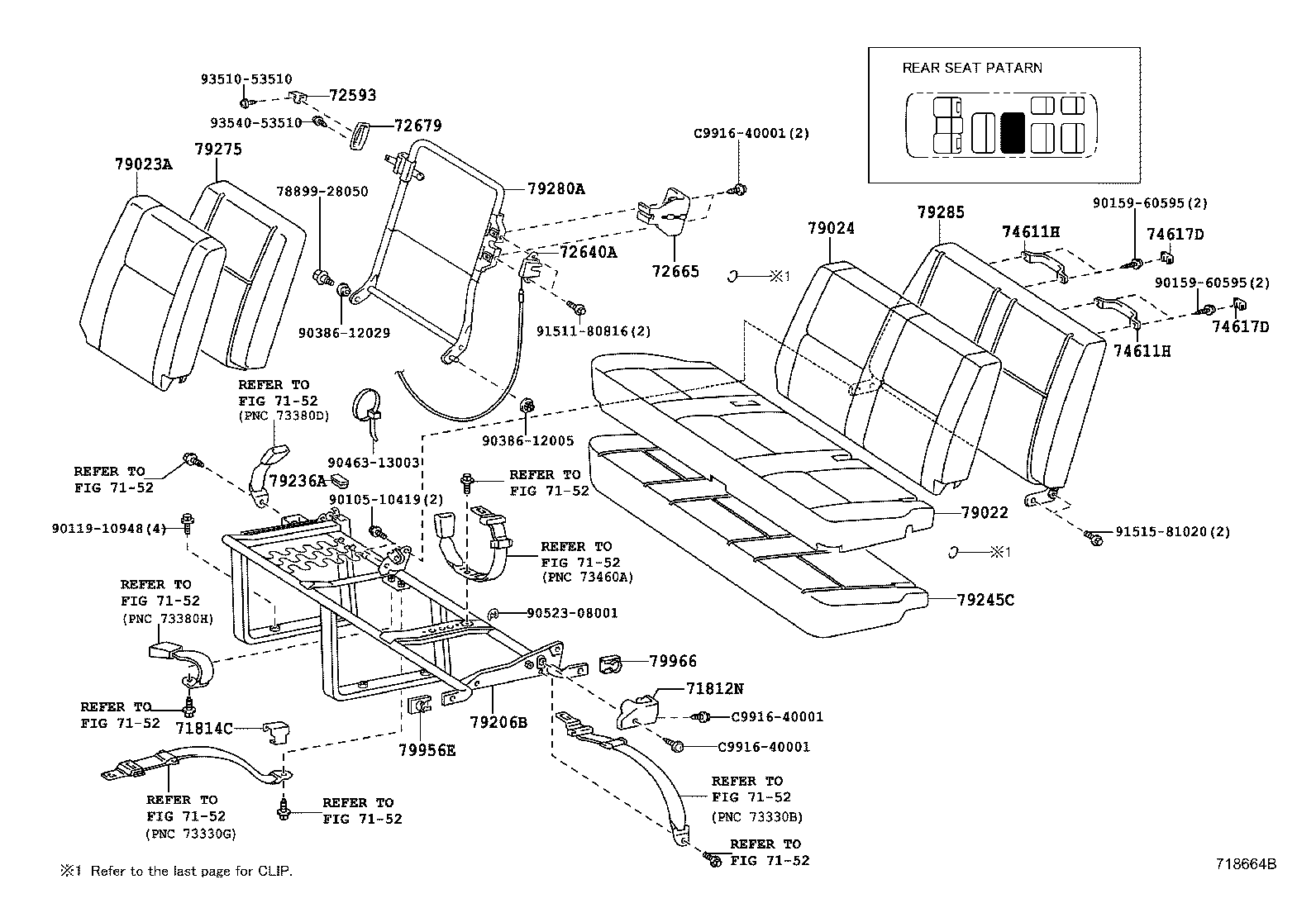

SEAT SEAT TRACK

REAR SEAT, FOR 3 PERSON(FALL DOWN TILLUST NO. 4 OF 5(1312- )KDH202,TRH203..GCC

HIACE | SEAT SEAT TRACK ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71812N - COVER, RECLINING ADJUSTER, LH 71814C - SHIELD, FRONT SEAT BACK, LH 72593 - KNOB, RECLINING REMOTE CONTROL LEVER 72640A - LOCK ASSY, REAR SEAT BACK, LH 72665 - COVER, REAR SEAT BACK LOCK, RH 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL 74611H - GRIP, ASSIST 74611H - GRIP, ASSIST 74617D - PLUG, ASSIST GRIP 74617D - PLUG, ASSIST GRIP ** Std Part 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH 79023A - COVER SUB-ASSY, NO.2 SEAT BACK 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH 79206B - LEG SUB-ASSY, NO.2 SEAT, LH 79236A - COVER, NO.2 SEAT LEG 79245C - PAD, NO.2 SEAT CUSHION, LH 79275 - PAD, NO.2 SEAT BACK 79280A - SPRING ASSY, NO.2 SEAT BACK, RH 79285 - PAD, NO.2 SEAT BACK, LH 79956E - CAP(FOR REAR SEAT LEG SIDE COVER) 79966 - COVER, REAR SEAT LEG SIDE, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
