TOYOTA HIACE KDH200L-RBMDY / ELECTRICAL / HEATING AIR CONDITIONING WATER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING WATER PIPING

FRONT (1312- )KDH200,203..LHD..GEN

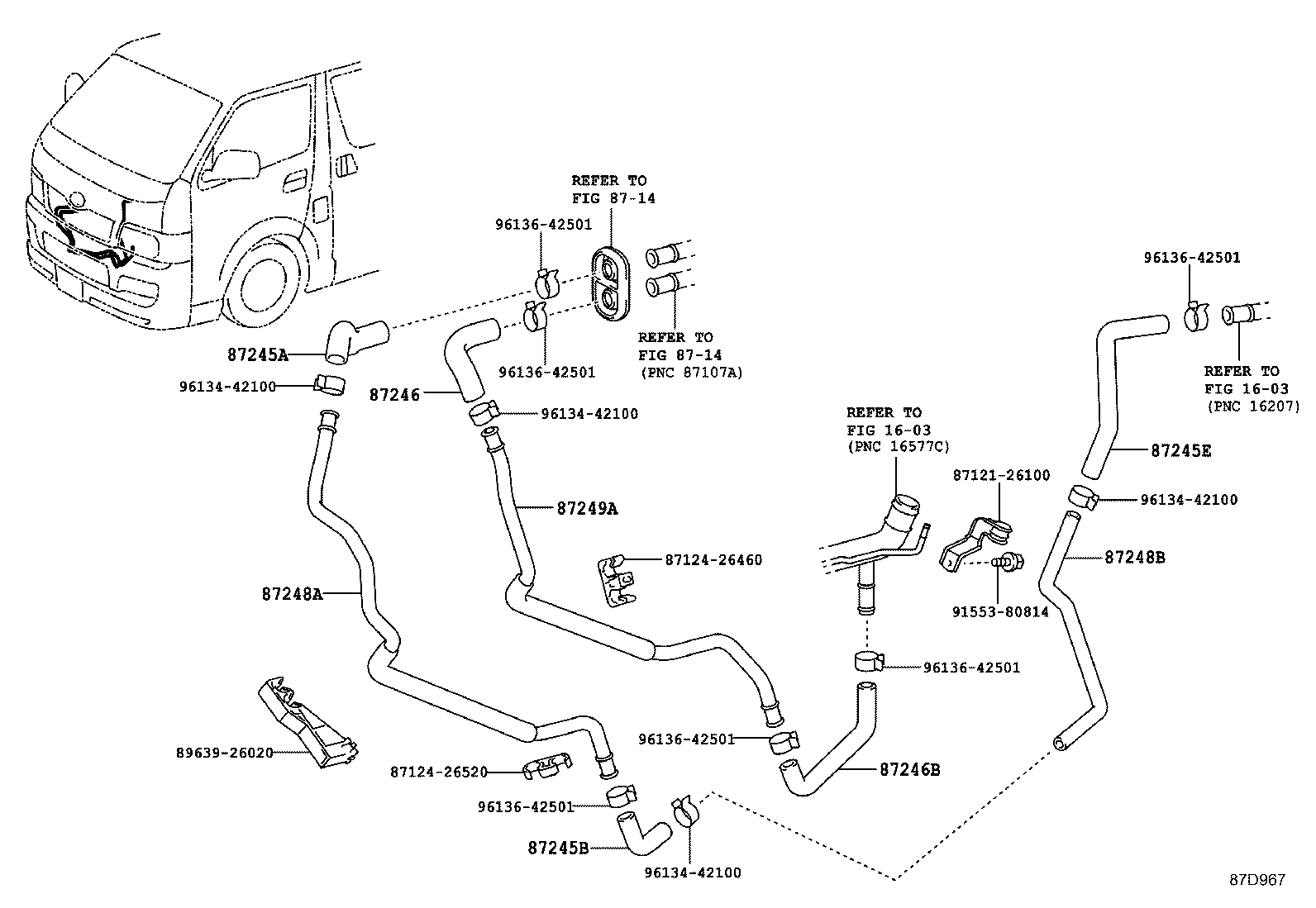

HIACE | HEATING AIR CONDITIONING WATER PIPING ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Refer Fig ** Refer Fig 87245A - HOSE, HEATER WATER, INLET A 87245B - HOSE, HEATER WATER, INLET B 87245E - HOSE, HEATER WATER, INLET E 87246 - HOSE, HEATER WATER, OUTLET 87246B - HOSE, HEATER WATER, OUTLET B 87248A - PIPE, HEATER WATER INLET, A 87248B - PIPE, HEATER WATER INLET, B 87249A - PIPE, HEATER WATER OUTLET, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
