TOYOTA PRIUS V ZVW40R-AWXEBQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

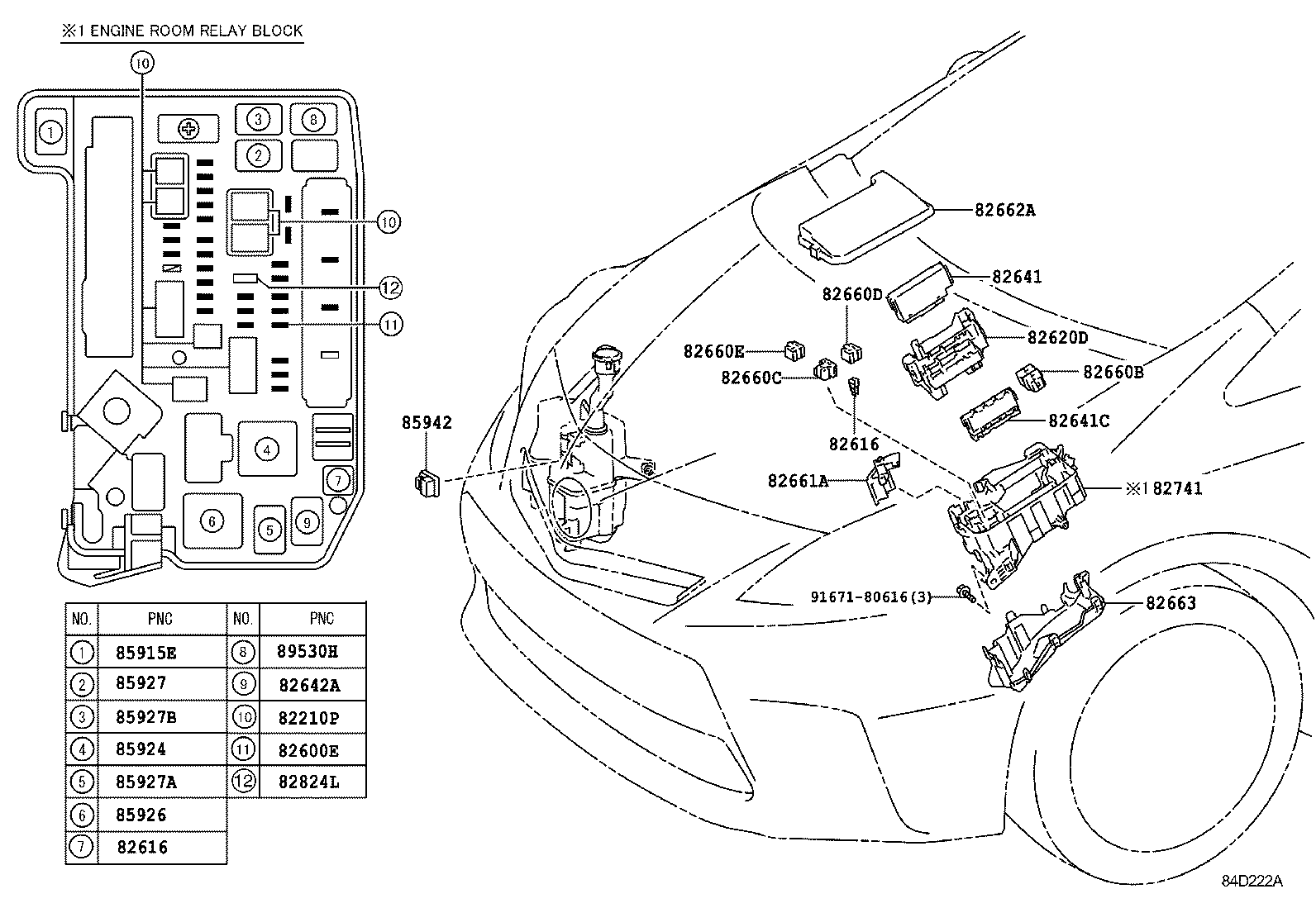

SWITCH RELAY COMPUTER

ENGINE ROOM ILLUST NO. 2 OF 6(1203-1210)

PRIUS V | SWITCH RELAY COMPUTER 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82616 - PULLER, FUSE 82616 - PULLER, FUSE 82620D - BLOCK ASSY, FUSIBLE LINK 82641 - RELAY, INTEGRATION NO.1 82641C - RELAY, INTEGRATION NO.2 82642A - RELAY, RUNNING LIGHT 82660B - BLOCK ASSY, RELAY 82660C - BLOCK ASSY, RELAY 82660D - BLOCK ASSY, RELAY 82660E - BLOCK ASSY, RELAY 82661A - COVER, RELAY BLOCK, NO.2 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82663 - COVER, RELAY BLOCK, LOWER 82741 - BLOCK, ENGINE ROOM RELAY 82824L - PIN, SHORT 85915E - RELAY 85924 - RELAY, IGNITION CONTROL 85926 - RELAY, HEADLAMP DIMMER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 85942 - RELAY, HEADLAMP CLEANER CONTROL 89530H - RELAY, TRANSAXLE PARKING LOOK CONTROL ** Std Part
