TOYOTA PRIUS V ZVW40R-AWXEBQ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

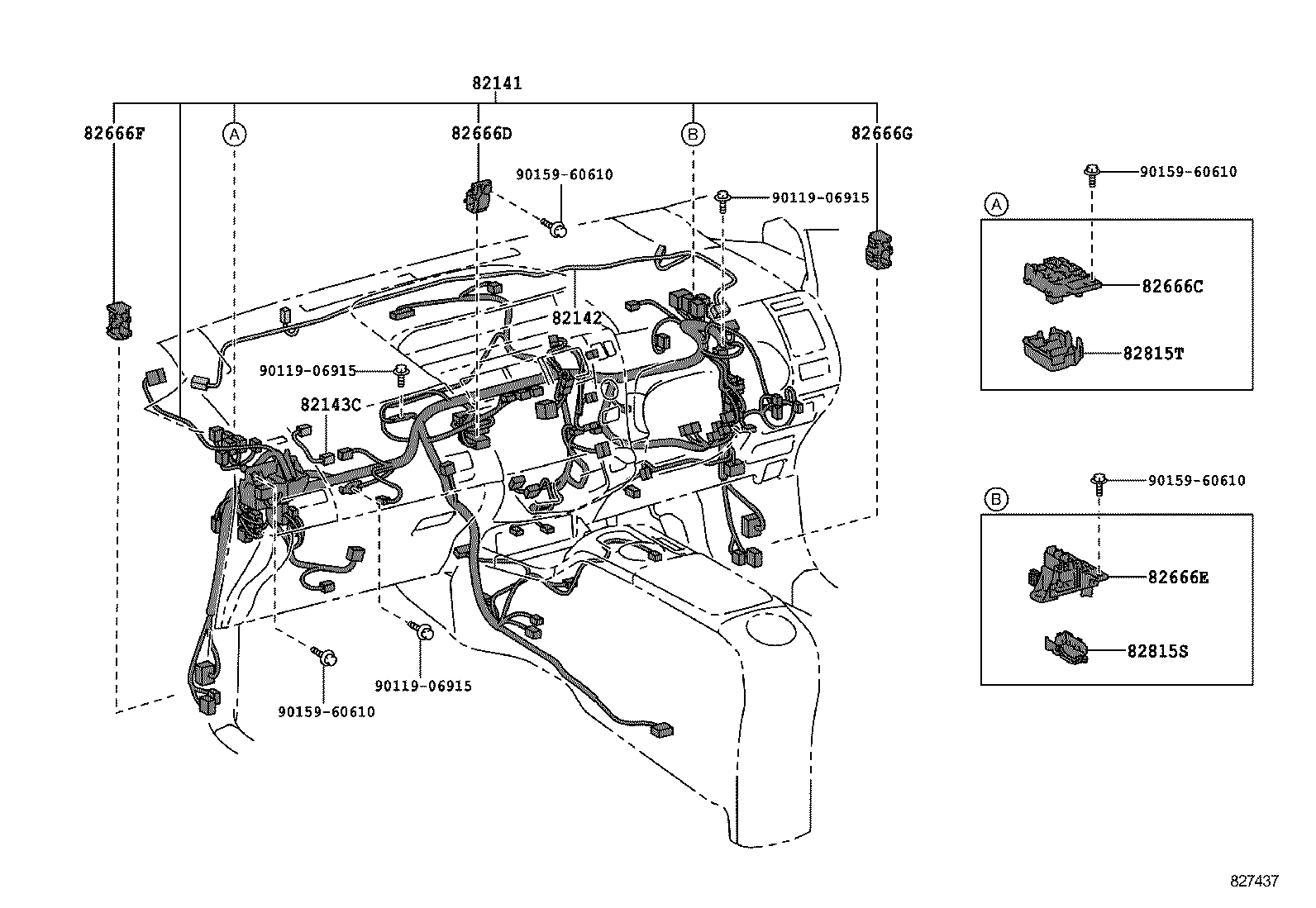

INSTRUMENT PANEL ILLUST NO. 3 OF11(1203- )

PRIUS V | WIRING CLAMP 82141 - WIRE, INSTRUMENT PANEL 82142 - WIRE, INSTRUMENT PANEL, NO.2 82143C - WIRE, INSTRUMENT PANEL, NO.3 82666C - HOLDER, CONNECTOR NO.4 82666D - HOLDER, CONNECTOR NO.5 82666E - HOLDER, CONNECTOR NO.6 82666F - HOLDER, CONNECTOR NO.7 82666G - HOLDER, CONNECTOR NO.8 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
