TOYOTA PRIUS V ZVW40R-AWXEBQ / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

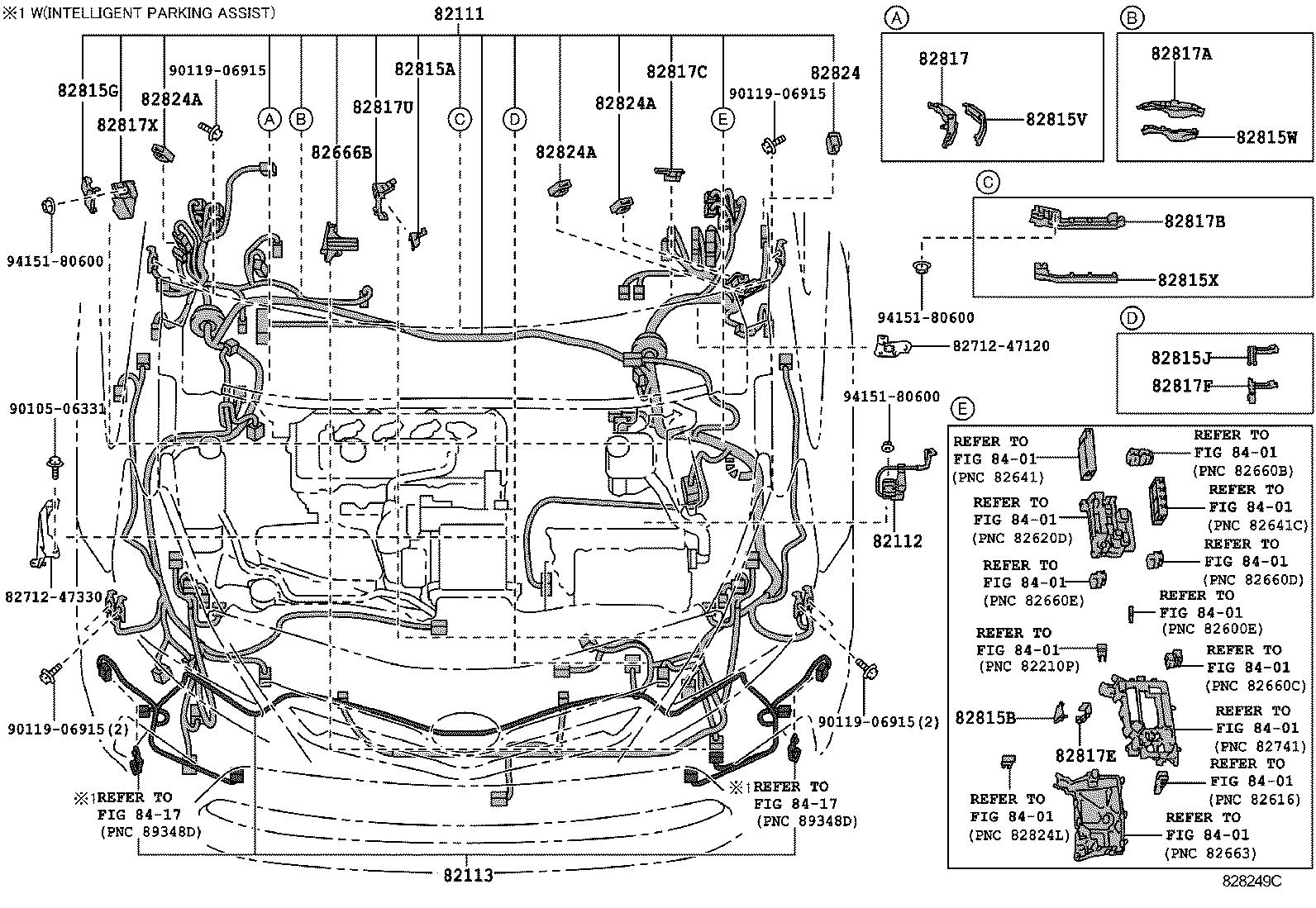

ENGINE ROOM ILLUST NO. 1 OF11(1203-1210)

PRIUS V | WIRING CLAMP 82111 - WIRE, ENGINE ROOM MAIN 82112 - WIRE, ENGINE ROOM, NO.2 82113 - WIRE, ENGINE ROOM, NO.3 82666B - HOLDER, CONNECTOR NO.3 ** Std Part ** Std Part 82815A - COVER, WIRING HARNESS PROTECTOR 82815B - COVER, WIRING HARNESS PROTECTOR 82815G - COVER, WIRING HARNESS PROTECTOR 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 82817 - PROTECTOR, WIRING HARNESS, NO.1 82817A - PROTECTOR, WIRING HARNESS, NO.2 82817B - PROTECTOR, WIRING HARNESS, NO.3 82817C - PROTECTOR, WIRING HARNESS, NO.4 82817E - PROTECTOR, WIRING HARNESS, NO.6 82817F - PROTECTOR, WIRING HARNESS, NO.7 82817U - PROTECTOR, WIRING HARNESS, NO.16 82817X - PROTECTOR, WIRING HARNESS, N0.17 82824 - CONNECTOR, WIRING HARNESS 82824A - CONNECTOR, WIRING HARNESS 82824A - CONNECTOR, WIRING HARNESS 82824A - CONNECTOR, WIRING HARNESS ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
