TOYOTA CAMRY ACV31R-JEPNKT / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

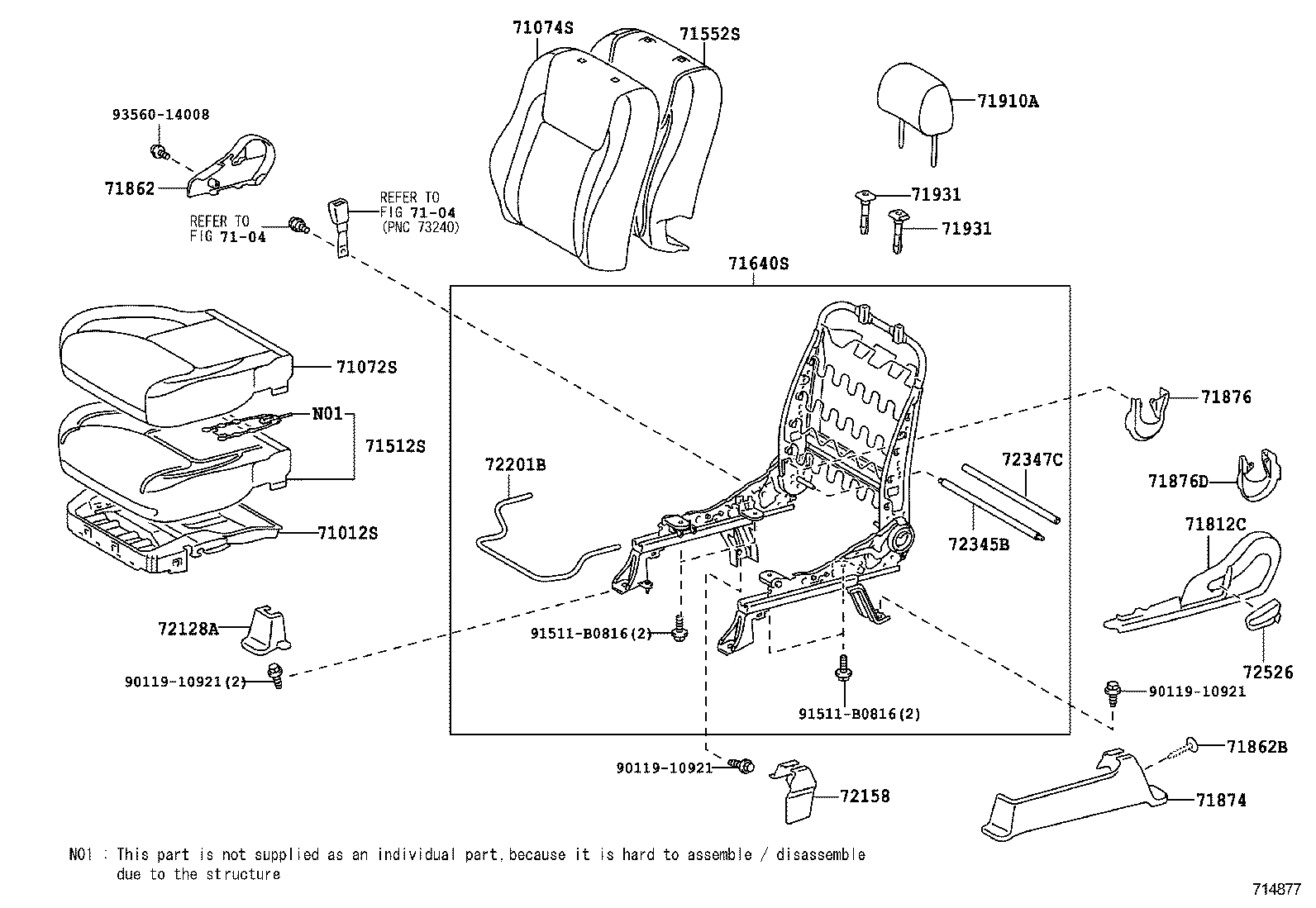

FRONT SEAT SEAT TRACK

PASSENGER SEAT (0405- )20E,24G..TH ; (0407- )ACV31..MA

CAMRY | FRONT SEAT SEAT TRACK 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH ** Refer Fig ** Refer Fig 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) 71812C - COVER, RECLINING ADJUSTER, LH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 71876D - COVER, RECLINING ADJUSTER OUTSIDE, LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72201B - HANDLE SUB-ASSY, SEAT TRACK LH 72345B - PIPE, RECLINING CONNECTING 72347C - COVER, RECLINING CONNECTING HOOK 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
