TOYOTA PRIUS CHINA NHW20L-AHEEBC / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

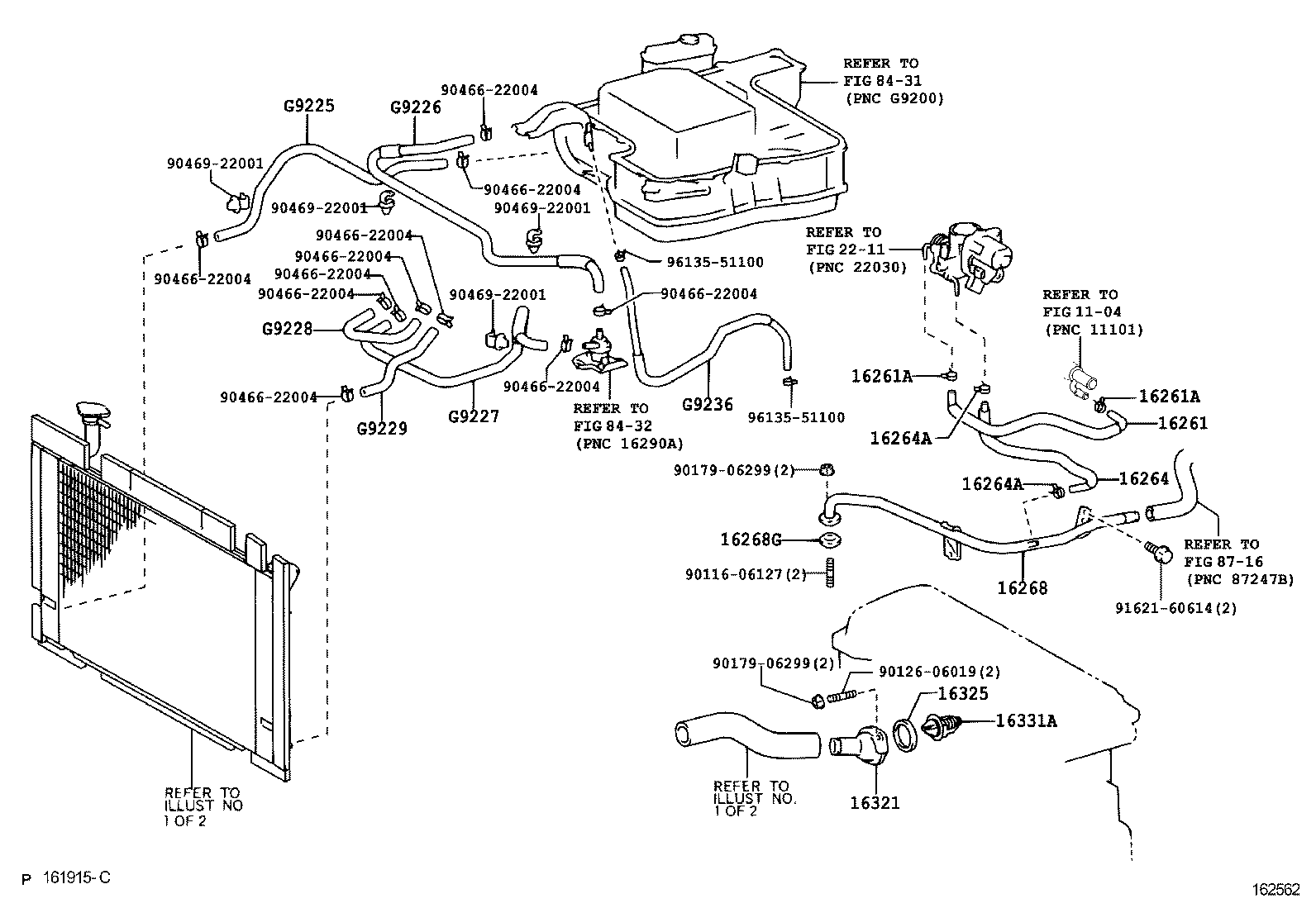

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0511- )

 PRIUS CHINA |  RADIATOR WATER OUTLET ** Refer Fig 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16268 - PIPE, WATER BY-PASS, NO.1 16268G - GASKET(FOR WATER BY-PASS PIPE) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331A - THERMOSTAT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part G9225 - HOSE, INVERTER COOLING, NO.1 G9226 - HOSE, INVERTER COOLING, NO.2 G9227 - HOSE, INVERTER COOLING, NO.3 G9228 - HOSE, INVERTER COOLING, NO.4 G9229 - HOSE, INVERTER COOLING, NO.5 G9236 - HOSE, INVERTER COOLING, NO.6
