TOYOTA AVALON MCX20L-AEPNKV / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

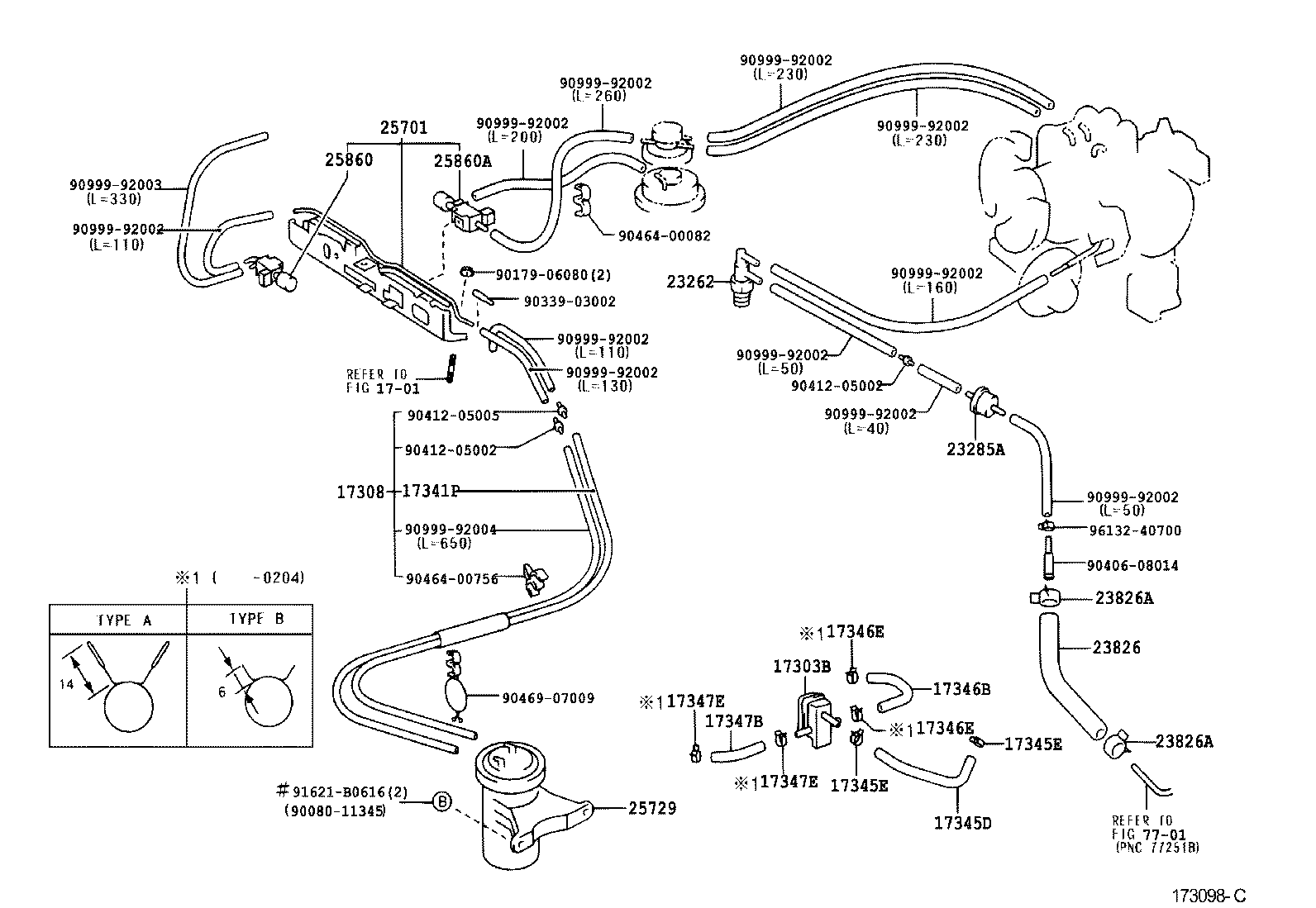

VACUUM PIPING

(0110- )

 AVALON |  VACUUM PIPING ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) 17341P - HOSE, AIR 17345D - HOSE, AIR, NO.5 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) 17346B - HOSE, AIR, NO.6 17346E - CLIP(FOR AIR HOSE NO.6) 17346E - CLIP(FOR AIR HOSE NO.6) 17347B - HOSE, AIR, NO.7 17347E - CLIP(FOR AIR HOSE NO.7) 17347E - CLIP(FOR AIR HOSE NO.7) 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23285A - VALVE, CHECK, NO.1 23826 - HOSE, FUEL VAPOR FEED, NO.1 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) 25701 - VALVE SET, EMISSION CONTROL 25729 - TANK, VACUUM SURGE W/BRACKET 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 25860A - VALVE, VACUUM SWITCHING, NO.1 ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
