TOYOTA 4RUNNER KZN215L-GKPGT / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

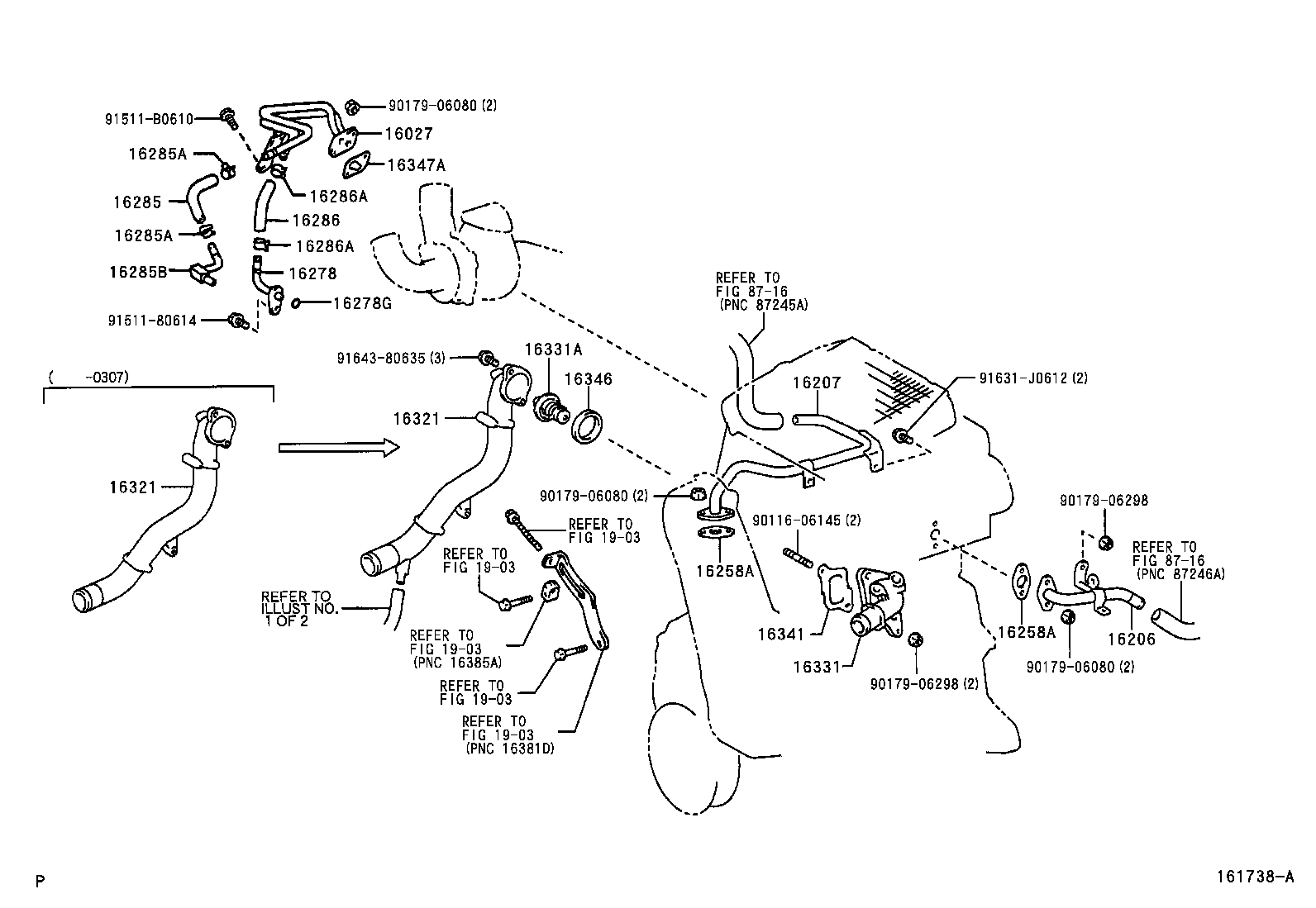

RADIATOR WATER OUTLET

ILLUST NO. 2 OF 2(0211- )1KZTE

4RUNNER | RADIATOR WATER OUTLET 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 16206 - PIPE SUB-ASSY, WATER BY-PASS 16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2 16258A - GASKET(FOR HEATER RETURN) 16258A - GASKET(FOR HEATER RETURN) 16278 - PIPE, WATER BY-PASS, NO.2 16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE) 16285 - HOSE, TURBO WATER, NO.2 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285A - CLIP(FOR TURBO WATER HOSE NO.2) 16285B - UNION(FOR TURBO WATER HOSE NO.2) 16286 - HOSE, TURBO WATER, NO.3 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16286A - CLIP(FOR TURBO WATER HOSE NO.3) 16321 - INLET, WATER 16321 - INLET, WATER 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16346 - GASKET, THERMOSTAT 16347A - GASKET(FOR TURBO WATER PIPE) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
