TOYOTA DYNA XZU342R-TKMQSD3 / POWERTRAIN-CHASSIS / PARKING BRAKE CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

PARKING BRAKE CABLE

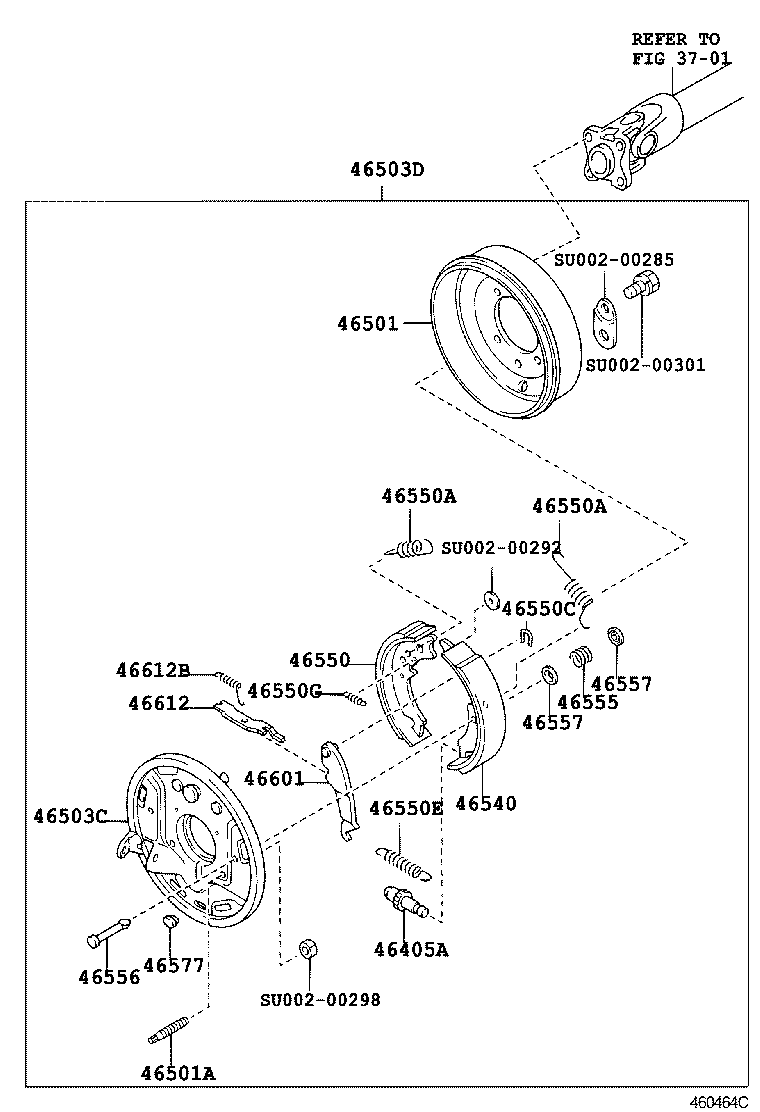

MXA5R ILLUST NO. 2 OF 2(0209-0404)XZU342

DYNA | PARKING BRAKE CABLE ** Refer Fig 46405A - SCREW SET, SHOE ADJUSTING, RH 46501 - DRUM SUB-ASSY, PARKING BRAKE 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) 46503C - PLATE SUB-ASSY, PARKING BRAKE 46503D - CENTER BRAKE ASSY 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) 46555 - SPRING, BRAKE SHOE HOLD DOWN 46556 - PIN, SHOE HOLD DOWN SPRING 46557 - CUP, BRAKE SHOE HOLD DOWN 46557 - CUP, BRAKE SHOE HOLD DOWN 46577 - COVER, ADJUSTING CAM HOLE 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE 46612 - STRUT, PARKING BRAKE SHOE LEVER 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) ** Std Part ** Std Part ** Std Part ** Std Part
