TOYOTA AVALON MCX10L-AESNKV / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

VALVE BODY OIL STRAINER ATM

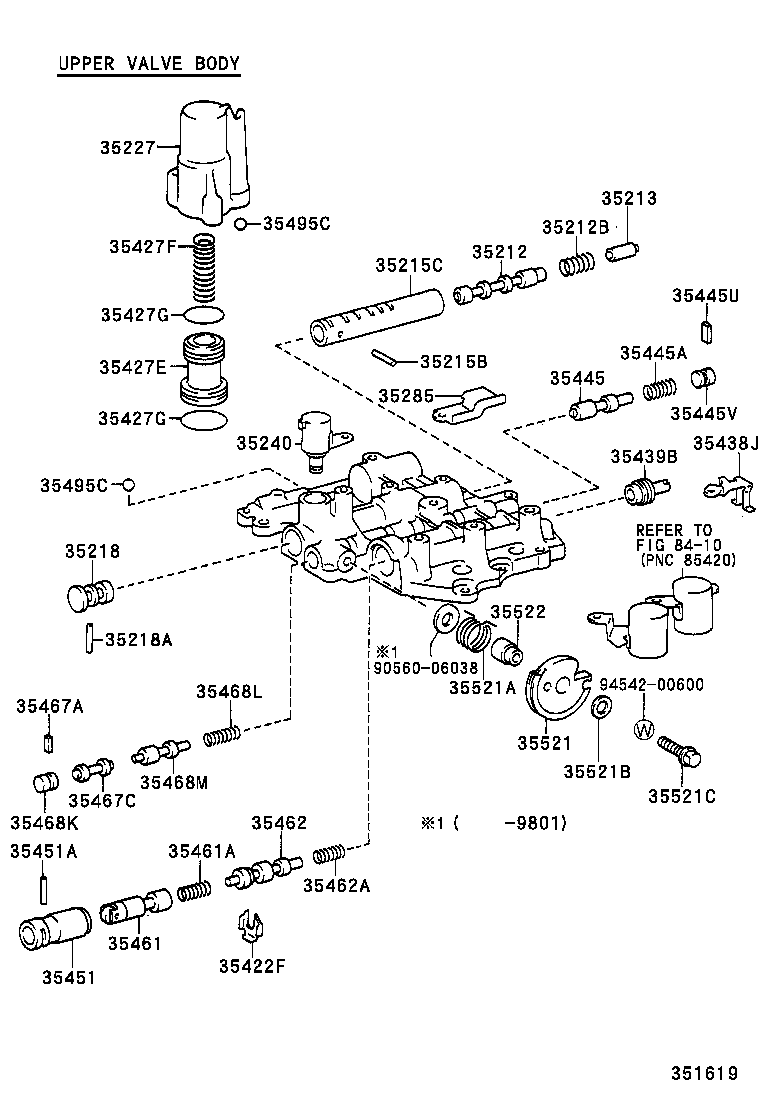

A541E ILLUST NO. 2 OF 5(9508- )

AVALON | VALVE BODY OIL STRAINER ATM 35212 - VALVE, LOCK UP RELAY 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) 35213 - VALVE, LOCK UP RELAY CONTROL 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 35218 - PLUG, LOCK UP RELAY VALVE 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) 35227 - CYLINDER, B-0 ACCUMULATOR 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY 35285 - PLATE, SOLENOID LOCK 35422F - STOPPER, VALVE VIBRATING 35427E - PISTON, B-0 ACCUMULATOR 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) 35438J - SEAT, THROTTLE VALVE SPRING 35439B - SCREW, THROTTLE VALVE 35445 - VALVE, LOW MODULATOR 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) 35445U - KEY, STRAIGHT (FOR LOW COAST MODULATOR VALVE) 35445V - PLUG (FOR LOW COAST MODULATOR VALVE) 35451 - SLEEVE, THROTTLE VALVE 35451A - PIN, STRAIGHT (FOR THROTTLE VALVE SLEEVE) 35461 - PLUG, DOWN SHIFT 35461A - SPRING, COMPRESSION (FOR DOWN SHIFT PLUG) 35462 - VALVE, THROTTLE 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) 35467A - KEY, STRAIGHT (FOR INTERMEDIATE SHIFT VALVE) 35467C - PLUNGER, ORIFICE CONTROL VALVE 35468K - PLUG (FOR B-1 ORIFICE CONTROL VALVE) 35468L - SPRING, COMPRESSION (FOR B-1 ORIFICE CONTROL VALVE) 35468M - VALVE, B-1 ORIFICE CONTROL 35495C - BALL, CHECK, NO.1 35495C - BALL, CHECK, NO.1 35521 - CAM, THROTTLE VALVE 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) 35521B - WASHER (FOR THROTTLE VALVE CAM SET) 35521C - BOLT (FOR THROTTLE VALVE CAM SET) 35522 - PIN, THROTTLE VALVE CAM ** Refer Fig ** Std Part ** Std Part
