TOYOTA AVALON MCX10L-AESNKV / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

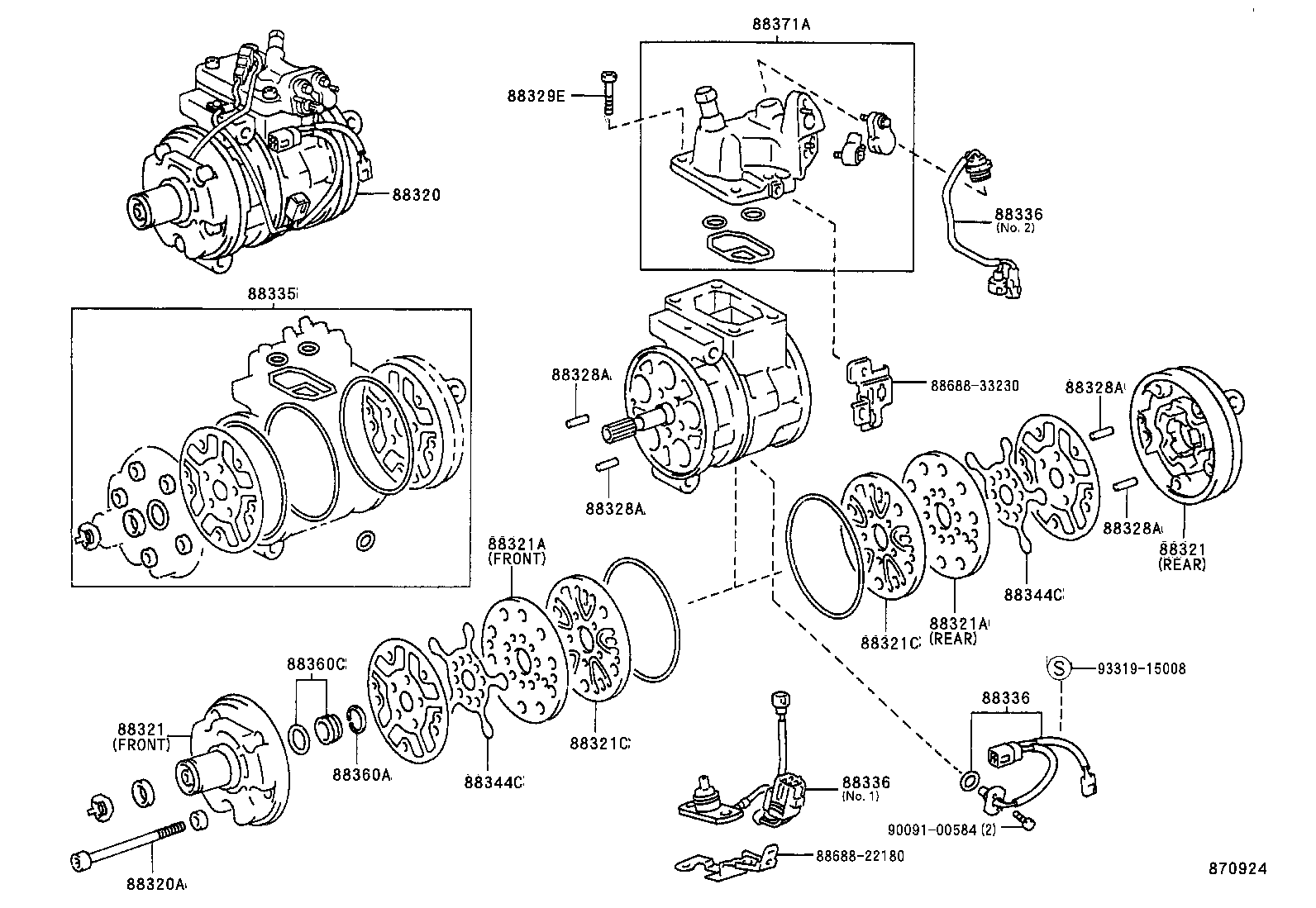

ILLUST NO. 2 OF 2(9508- )

AVALON | HEATING AIR CONDITIONING COMPRESSOR 88320 - COMPRESSOR ASSY, COOLER 88320A - BOLT, THROUGH 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88321A - PLATE SUB-ASSY, VALVE 88321A - PLATE SUB-ASSY, VALVE 88321C - REED, SUCTION VALVE 88321C - REED, SUCTION VALVE 88328A - PIN, COMPRESSOR 88328A - PIN, COMPRESSOR 88328A - PIN, COMPRESSOR 88328A - PIN, COMPRESSOR 88329E - BOLT, COMPRESSOR, NO.1 88335 - GASKET KIT, OVERHAUL 88336 - SENSOR, COMPRESSOR 88336 - SENSOR, COMPRESSOR 88336 - SENSOR, COMPRESSOR 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360A - RING, COMPRESSOR SEAL PLATE SNAP 88360C - SEAL ASSY, SHAFT 88371A - VALVE, SUCTION ** Std Part ** Std Part ** Std Part ** Std Part
