TOYOTA LITEACE VAN WAGON YR21LG-MDS / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COOLER PIPING

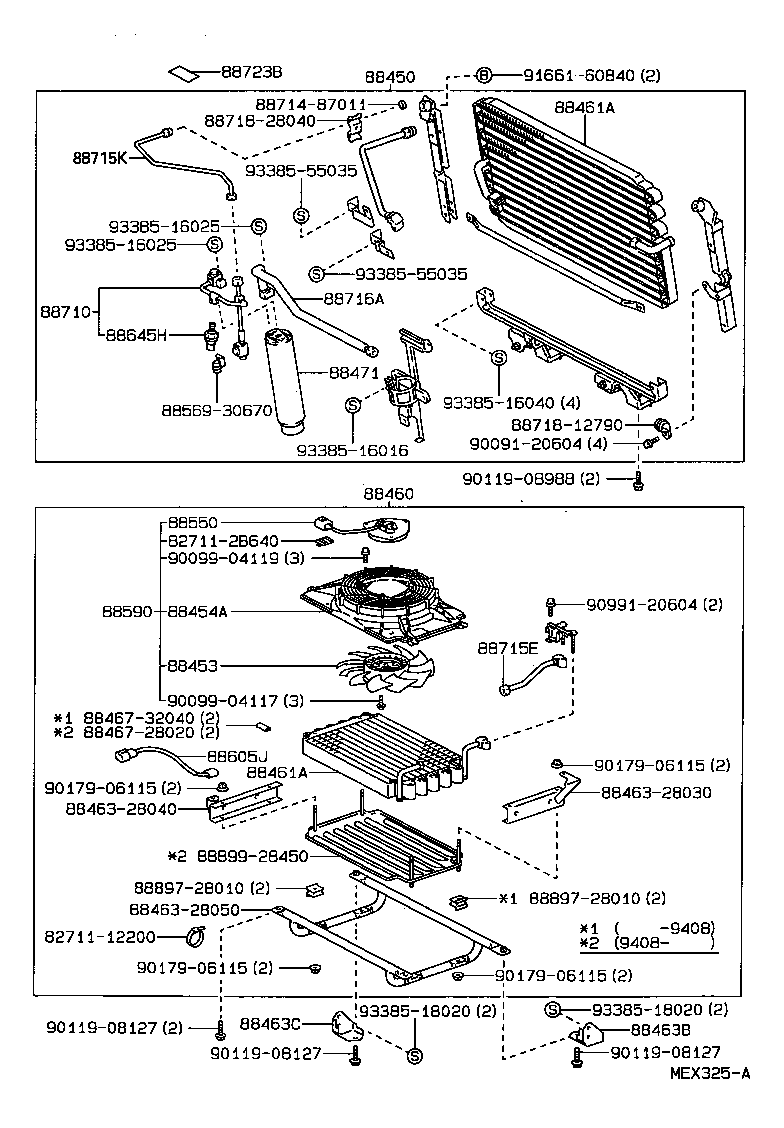

CONDENSER---DUAL(MAKER OPTION) ILLUST NO. 1 OF 4(9309- )YR21

LITEACE VAN WAGON | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Std Part 88450 - CONDENSER ASSY, W/RECEIVER 88453 - FAN, COOLING (FOR CONDENSER) 88454A - SHROUD, FAN 88460 - CONDENSER ASSY, COOLER 88461A - CORE, COOLER CONDENSER 88461A - CORE, COOLER CONDENSER ** Std Part ** Std Part ** Std Part 88463B - BRACKET, COOLER CONDENSER, NO.3 88463C - BRACKET, COOLER CONDENSER, NO.4 ** Std Part ** Std Part 88471 - TANK, RECEIVER AIR CONDITIONER 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) ** Std Part 88590 - BLOWER ASSY, W/SHROUD 88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING 88645H - SWITCH, PRESSURE NO.1 88710 - TUBE ASSY, AIRCONDITIONER ** Std Part 88715E - PIPE, COOLER REFRIGERANT DISCHARGE, E 88715K - TUBE, DISCHARGE, K 88716A - PIPE, COOLER REFRIGERANT LIQUID, A ** Std Part ** Std Part 88723B - LABEL, COOLER SERVICE CAUTION ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
