TOYOTA AVALON MCX10L-AESGKV / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

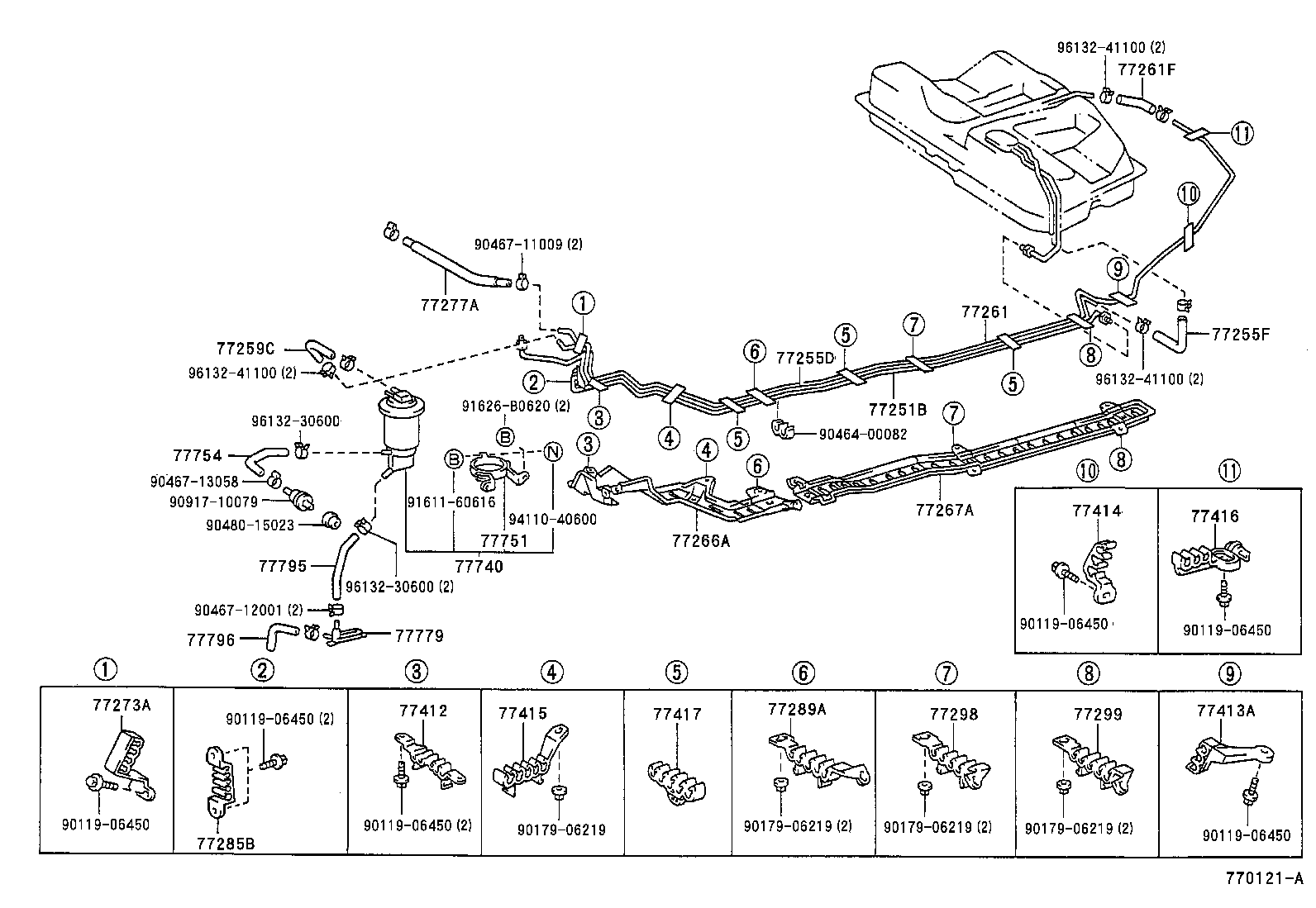

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9508-9709)

AVALON | FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77259C - HOSE, FUEL 77261 - TUBE SUB-ASSY, FUEL EMISSION 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77779 - TUBE, CHARCOAL CANISTER OUTLET 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77796 - HOSE, CHARCOAL CANISTER OUTLET, NO.3 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
