TOYOTA AVALON MCX10L-AEPGKV / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT SEAT SEAT TRACK

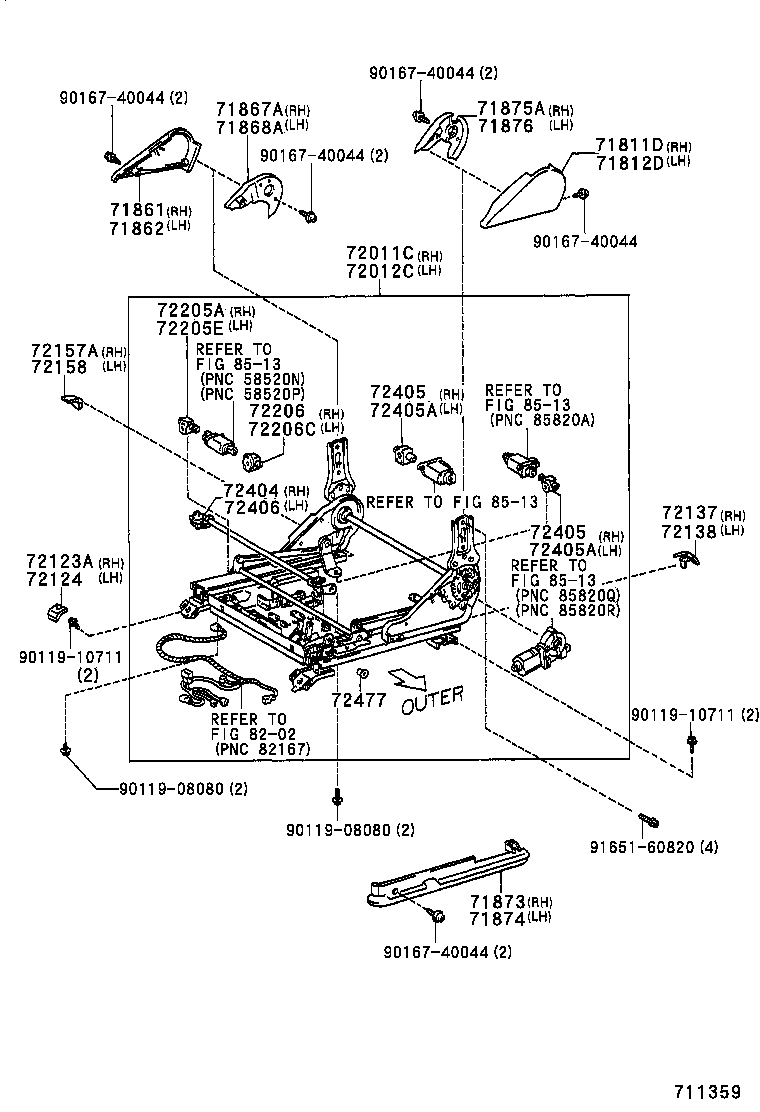

POWER ADJUSTER ILLUST NO. 2 OF 2(9508- )4FC..XLS

AVALON | FRONT SEAT SEAT TRACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71812D - SHIELD, FRONT SEAT CUSHION, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71876 - COVER, RECLINING ADJUSTER INSIDE, LH 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH 72137 - COVER, SEAT TRACK OUTER, RH 72138 - COVER, SEAT TRACK OUTER, LH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72158 - COVER, SEAT TRACK BRACKET, INNER LH 72205A - HOUSING SUB-ASSY, POWER SEAT, NO.1 72205E - HOUSING SUB-ASSY, POWER SEAT, NO.1 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 72206C - HOUSING SUB-ASSY, POWER SEAT, NO.2 72404 - LINK SUB-ASSY, VERTICAL SEAT 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72405A - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72405A - HOUSING SUB-ASSY, FRONT SEAT VERTICAL 72406 - LINK SUB-ASSY, VERTICAL SEAT, LH 72477 - SPACER, VERTICAL ADJUSTER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
