TOYOTA LAND CRUISER 90 RZJ90L-GJMRU / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

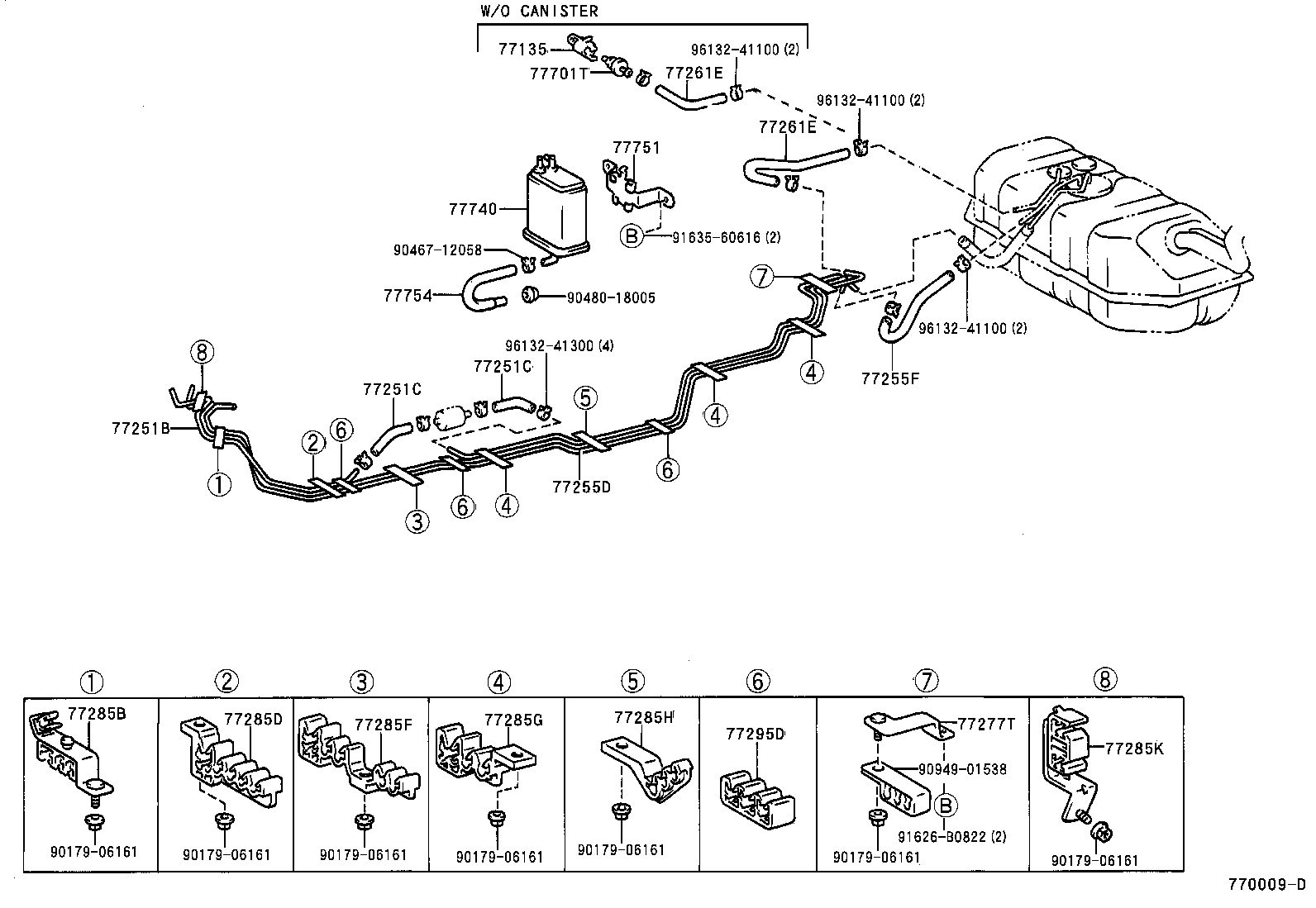

FUEL TUBE ILLUST NO. 2 OF 2(9604- )RZJ90..CBR

LAND CRUISER 90 | FUEL TANK TUBE 77135 - BRACKET, CHECK VALVE 77251B - TUBE, FUEL MAIN 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77277T - BRACKET, CHECK VALVE 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285K - CLAMP, FUEL TUBE, NO.1 77295D - GROMMET, FUEL TUBE 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) 77740 - CANISTER ASSY, CHARCOAL 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
