TOYOTA VERSO S NSP120R-CHFXKW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

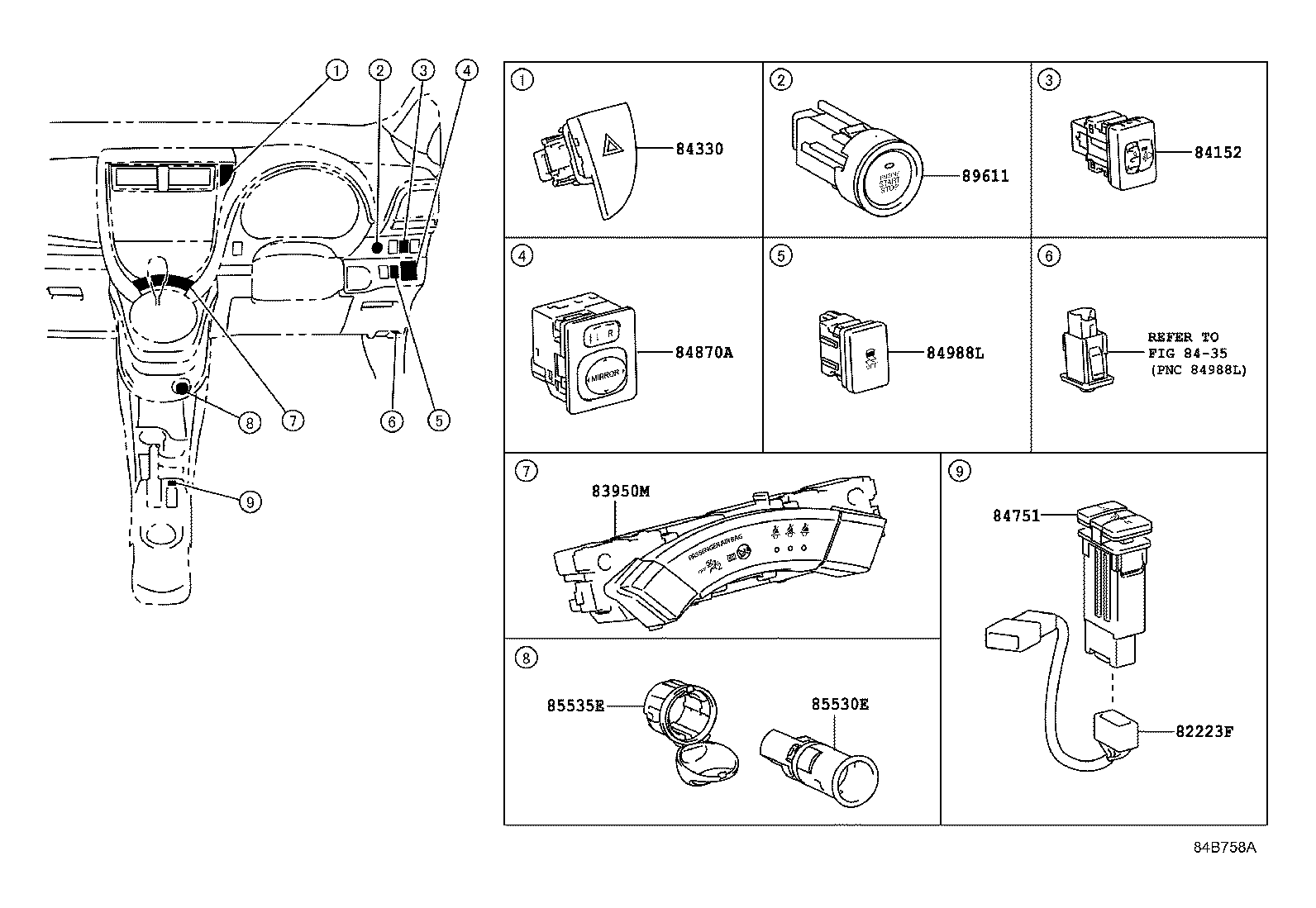

INSTRUMENT PANEL ILLUST NO. 5 OF 7(1011- )RHD

 VERSO S |  SWITCH RELAY COMPUTER 82223F - WIRE, SWITCH 83950M - LAMP ASSY, TELLTALE 84152 - SWITCH, HEADLAMP LEVELING 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL ** Refer Fig 84751 - SWITCH, SEAT HEATER 84870A - SWITCH ASSY, OUTER MIRROR 84988L - SWITCH, VSC OFF 85530E - SOCKET ASSY, POWER OUTLET, NO.3 85535E - COVER, POWER OUTLET SOCKET, NO.2 89611 - SWITCH, PUSH START
