TOYOTA AURIS HYBRID UKP ZWE150L-DHXNBW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FLOOR PAN LOWER BACK PANEL

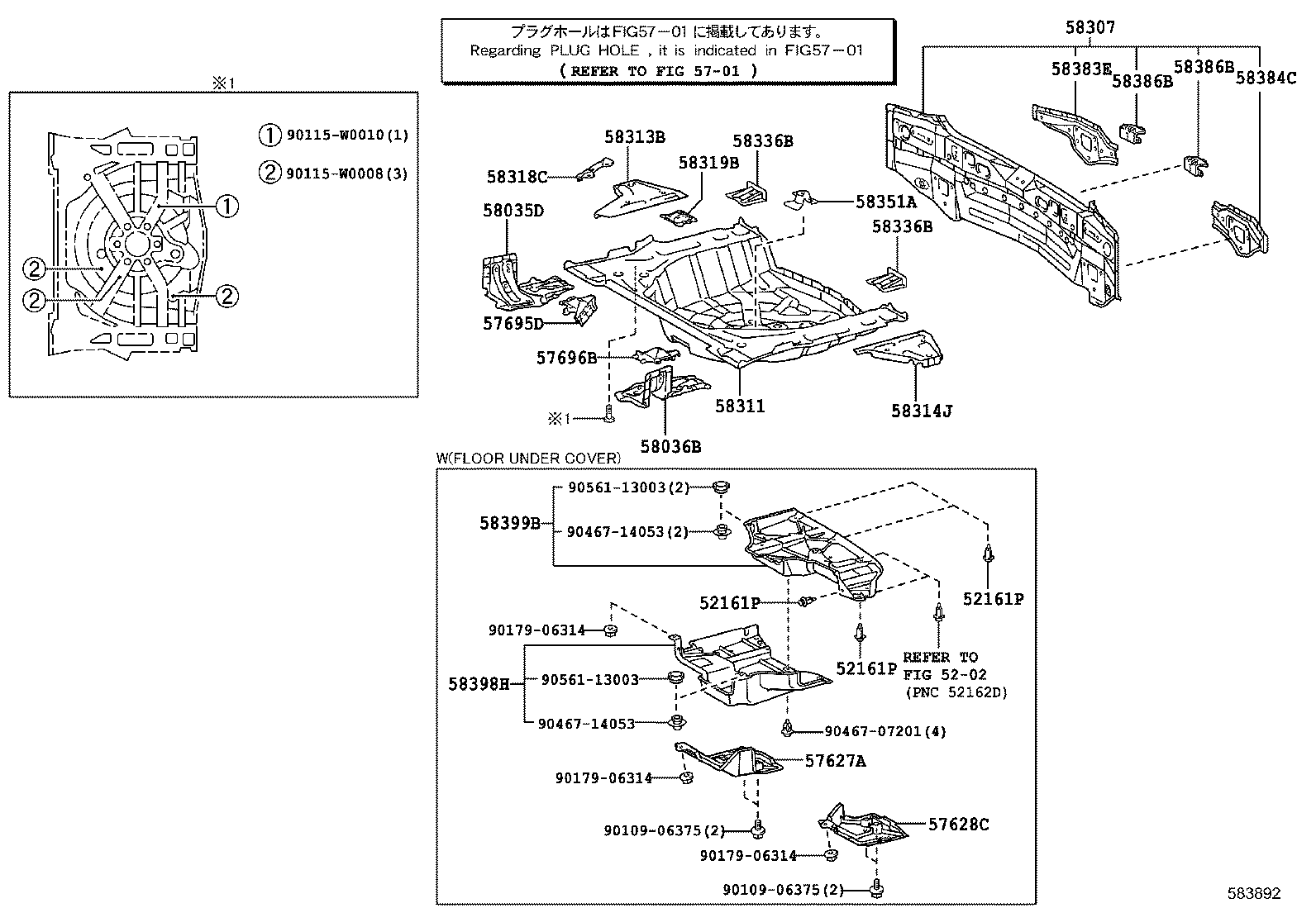

REAR FLOOR PANEL ILLUST NO. 2 OF 2(1006- )ZWE150

AURIS HYBRID UKP | FLOOR PAN LOWER BACK PANEL ** Refer Fig 52161P - PIECE, REAR BUMPER 52161P - PIECE, REAR BUMPER 52161P - PIECE, REAR BUMPER ** Refer Fig 57627A - COVER, REAR FLOOR SIDE MEMBER, RH 57628C - COVER, REAR FLOOR SIDE MEMBER, LH 57695D - BRACKET, REAR FLOOR MOUNTING, NO.2 RH 57696B - BRACKET, REAR FLOOR MOUNTING, NO.2 LH 58035D - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH 58036B - EXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH 58307 - PANEL SUB-ASSY, BODY LOWER BACK 58311 - PAN, REAR FLOOR 58313B - PANEL, REAR FLOOR SIDE, RH 58314J - PANEL, REAR FLOOR SIDE, LH 58318C - BRACKET, REAR FLOOR CROSSMEMBER 58319B - BRACKET, REAR FLOOR SIDE PANEL 58336B - REINFORCEMENT, REAR FLOOR PAN 58336B - REINFORCEMENT, REAR FLOOR PAN 58351A - BRACKET, SPARE WHEEL CARRIER 58383E - REINFORCEMENT, BODY LOWER BACK, NO.2 RH 58384C - REINFORCEMENT, BODY LOWER BACK, NO.2 LH 58386B - BRACKET, REAR BUMPER COVER, NO.2 58386B - BRACKET, REAR BUMPER COVER, NO.2 58398H - COVER, FLOOR UNDER, NO.1 58399B - COVER, FLOOR UNDER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
