TOYOTA AURIS HYBRID UKP ZWE150L-DHXNBW / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FLOOR PAN LOWER BACK PANEL

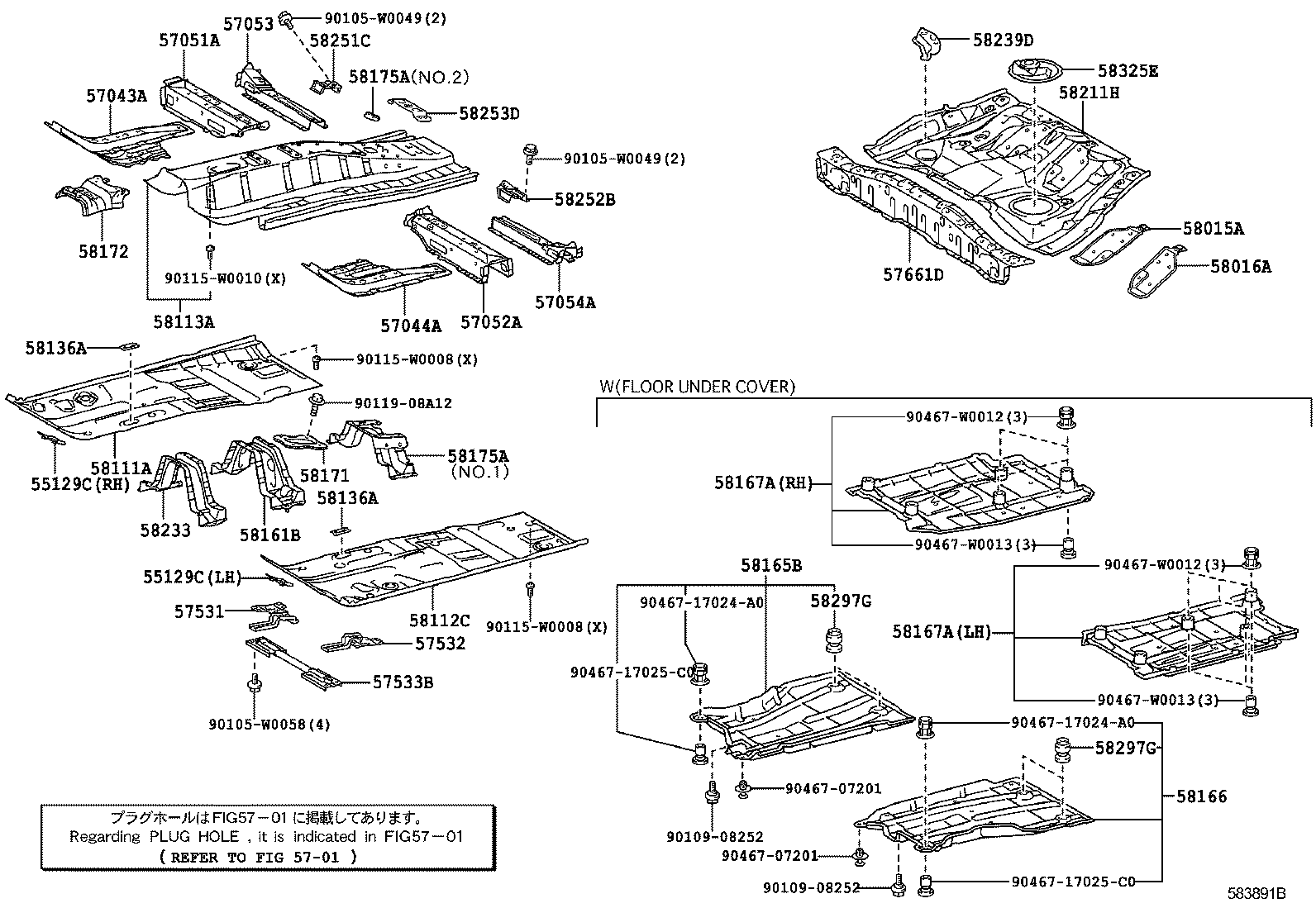

FRONT FL00R PANEL ILLUST NO. 1 OF 2(1006- )ZWE150

AURIS HYBRID UKP | FLOOR PAN LOWER BACK PANEL 55129C - COVER, DASH PANEL HOLE 55129C - COVER, DASH PANEL HOLE ** Refer Fig 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 57051A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 57052A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH 57531 - BRACKET, FRONT FLOOR CENTER BRACE, RH 57532 - BRACKET, FRONT FLOOR CENTER BRACE, LH 57533B - BRACE, FRONT FLOOR, CENTER 57661D - MEMBER, REAR FLOOR CROSS, FRONT 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 58111A - PAN, FRONT FLOOR, RH 58112C - PAN, FRONT FLOOR, LH 58113A - PANEL, FRONT FLOOR, CENTER 58136A - COVER, FRONT FLOOR SERVICE HOLE 58136A - COVER, FRONT FLOOR SERVICE HOLE 58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 58165B - COVER, FRONT FLOOR, RH 58166 - COVER, FRONT FLOOR, LH 58167A - COVER, FRONT FLOOR, CENTER 58167A - COVER, FRONT FLOOR, CENTER 58171 - REINFORCEMENT, PARKING BRAKE BASE 58172 - BRACKET, COMPUTER MOUNTING, NO.3 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58175A - REINFORCEMENT, PARKING BRAKE BASE, NO.1 58211H - PAN, CENTER FLOOR 58233 - BRACKET, EXHAUST PIPE MOUNTING 58239D - BRACKET, CABLE CLAMP 58251C - BRACE, FLOOR PANEL, FRONT RH 58252B - BRACE, FLOOR PANEL, FRONT LH 58253D - BRACKET, PARKING BRAKE CABLE 58297G - RETAINER, FLOOR CLAMP 58297G - RETAINER, FLOOR CLAMP 58325E - COVER, REAR FLOOR SERVICE HOLE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
