TOYOTA YARIS JPP NSP130L-AHFNKW / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

price list

FUEL TANK TUBE

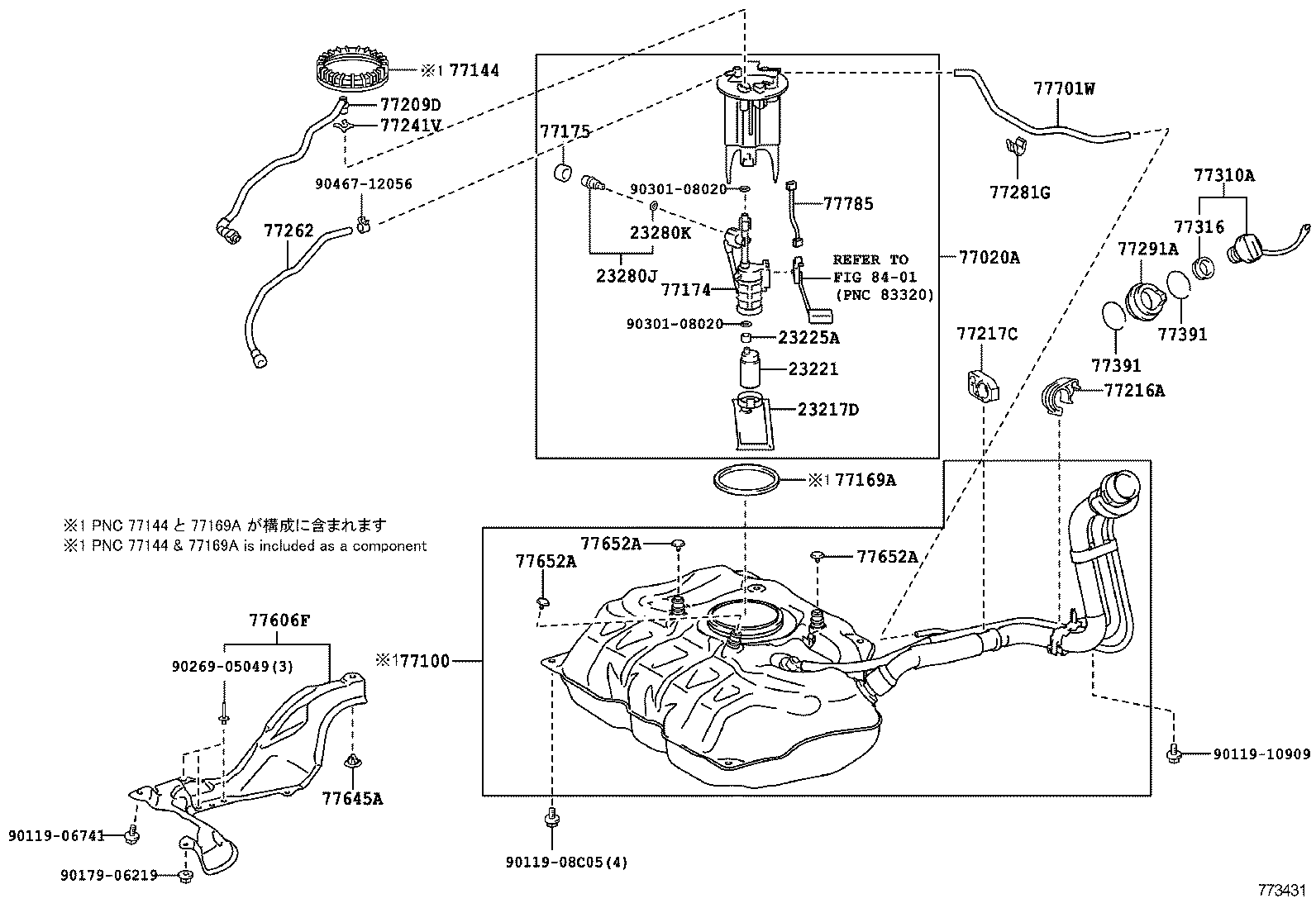

FUEL TANK,W/O(INTERFERENCE) ILLUST NO. 1 OF 2(1108- )LHD

YARIS JPP | FUEL TANK TUBE 23217D - FILTER, FUEL PUMP 23221 - PUMP, FUEL 23225A - SPACER, FUEL PUMP 23280J - REGULATOR ASSY, FUEL PRESSURE 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE 77100 - TANK ASSY, FUEL 77144 - RETAINER, FUEL PUMP GAUGE 77169A - GASKET, FUEL SUCTION TUBE SET 77174 - SUPPORT, FUEL SUCTION, NO.1 77175 - SUPPORT, FUEL SUCTION, NO.2 77209D - TUBE SUB-ASSY, FUEL TANK MAIN 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 77241V - CLIP, TUBE JOINT 77262 - TUBE, FUEL EMISSION, NO.2 77281G - CLAMP, FUEL HOSE 77291A - SHIELD, FUEL TANK FILLER PIPE 77310A - CAP ASSY, FUEL TANK 77316 - GASKET, FUEL TANK CAP 77391 - RING, FUEL INLET BOX 77391 - RING, FUEL INLET BOX 77606F - CASE SUB-ASSY, FUEL TANK COVER VENT 77645A - RETAINER, FUEL TANK PROTECTOR 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77652A - CUSHION, FUEL TANK, NO.2 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 77785 - HARNESS, FUEL PUMP ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
