TOYOTA PRIUS ZVW30R-AHXEBW / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

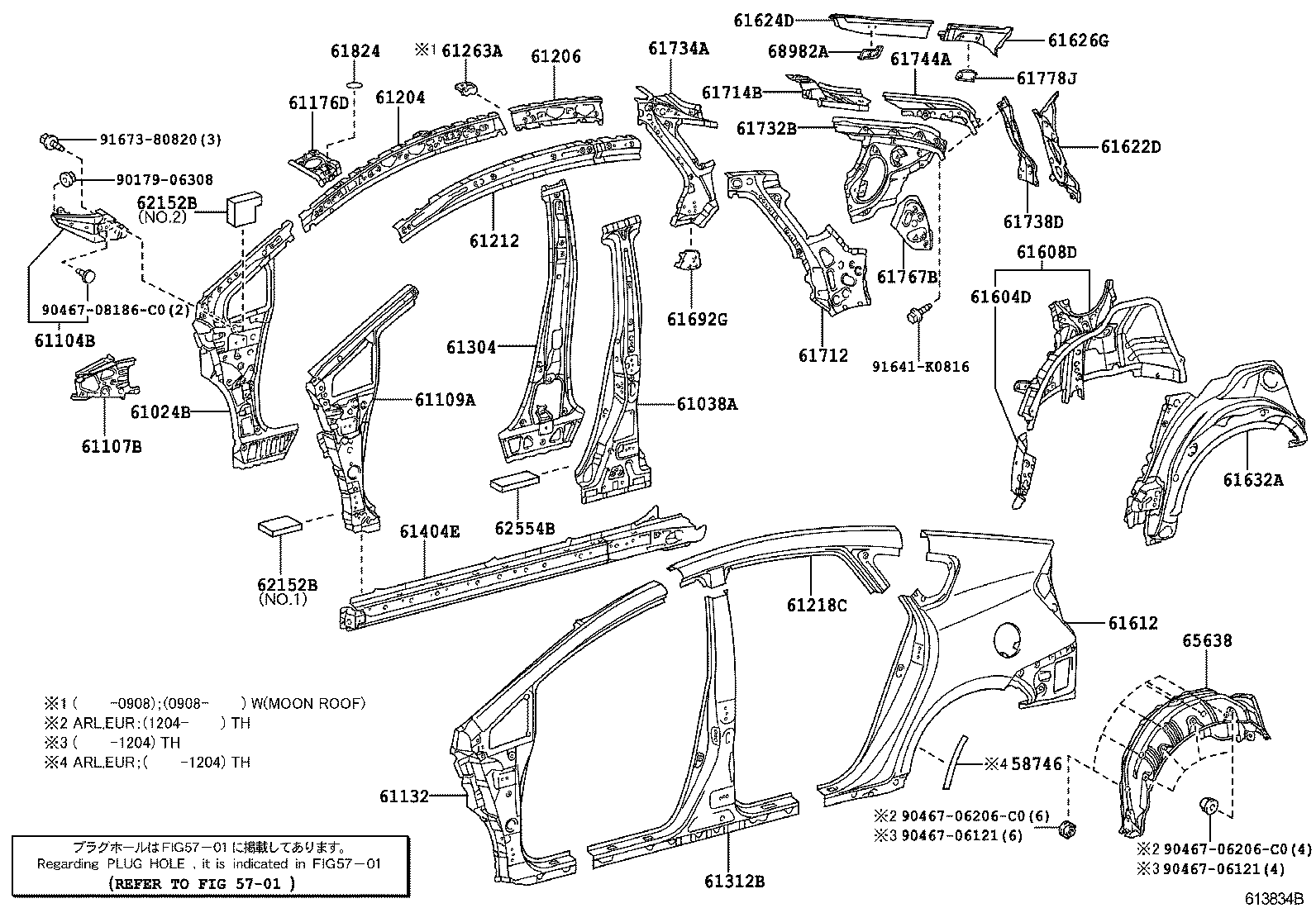

SIDE MEMBER

LH ILLUST NO. 2 OF 2(0904- )

 PRIUS |  SIDE MEMBER ** Refer Fig 58746 - PROTECTOR, QUARTER PANEL, FRONT LH 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH 61212 - RAIL, ROOF SIDE, OUTER LH 61218C - RAIL, ROOF SIDE, OUTER NO.4 LH 61263A - PILLAR, NO.2 INNER, LH 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH 61312B - PILLAR, CENTER BODY, OUTER LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61604D - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH 61608D - PANEL, QUARTER WHEEL HOUSE, INNER LH 61612 - PANEL, QUARTER, LH 61622D - TROUGH, BACK DOOR OPENING, LH 61624D - EXTENSION, QUARTER PANEL, FRONT LH 61626G - EXTENSION, QUARTER PANEL, REAR LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH 61712 - PANEL, ROOF SIDE, OUTER LH 61714B - REINFORCE, ROOF SIDE, OUTER LH 61732B - PANEL, ROOF SIDE, INNER LH 61734A - PANEL, ROOF SIDE, INNER FRONT LH 61738D - REINFORCEMENT, ROOF SIDE, INNER LH 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH 61824 - PLATE, NOISE CONTROL, NO.1 62152B - PAD, COWL SIDE SILENCER, NO.2 62152B - PAD, COWL SIDE SILENCER, NO.2 62554B - PAD, PILLAR, NO.4 65638 - LINER, REAR WHEEL HOUSE, LH 68982A - RETAINER, BACK DOOR STAY, LH  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
