TOYOTA LAND CRUISER 150 KDJ150L-GKFEYW / BODY / BACK DOOR PANEL GLASS

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

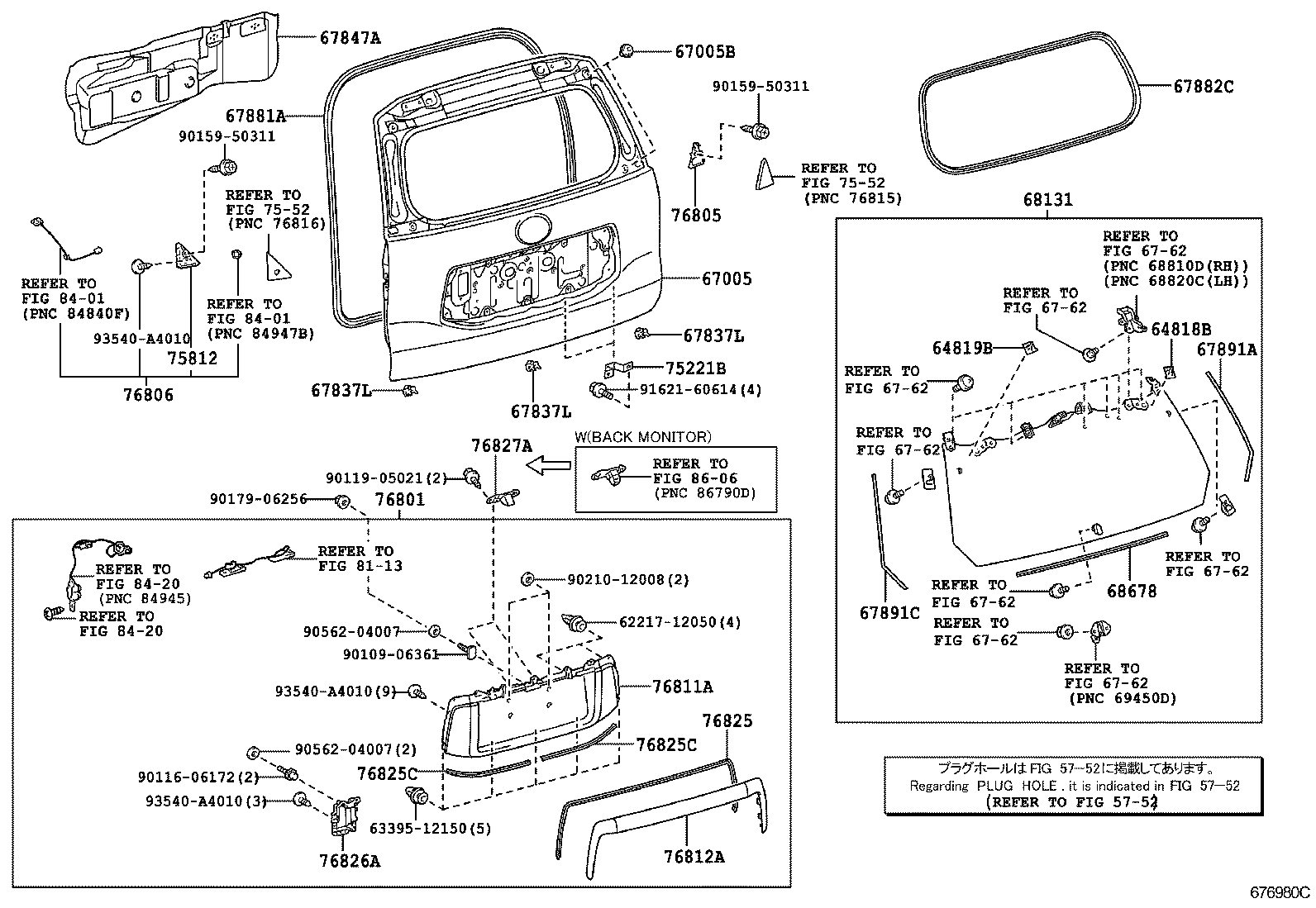

BACK DOOR PANEL GLASS

PANEL,W/O(SPARE TIRE = BACK DOOR) ILLUST NO. 1 OF 2(0908-1308)

 LAND CRUISER 150 |  BACK DOOR PANEL GLASS ** Refer Fig  ** Std Part  ** Std Part 64818B - SPACER, BACK DOOR GLASS, NO.1 64819B - SPACER, BACK WINDOW GLASS, NO.2 67005 - PANEL SUB-ASSY, BACK DOOR 67005B - CUSHION(FOR BACK DOOR PANEL) ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 67837L - SEAL, DOOR DUST PROOF 67837L - SEAL, DOOR DUST PROOF 67837L - SEAL, DOOR DUST PROOF 67847A - COVER, BACK DOOR SERVICE HOLE 67881A - WEATHERSTRIP, BACK DOOR 67882C - WEATHERSTRIP, BACK DOOR, NO.2 67891A - SEAL, BACK DOOR 67891C - SEAL, BACK DOOR 68131 - GLASS, BACK DOOR 68678 - PROTECTOR, BACK DOOR WINDOW 75221B - BRACKET, TOOL BOX ** Refer Fig ** Refer Fig 75812 - MOULDING, BACK DOOR, OUTSIDE UPPER RH 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE 76805 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER RH 76806 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER LH 76811A - GARNISH, BACK DOOR, OUTSIDE 76812A - GARNISH, BACK DOOR, OUTSIDE NO.2 76825 - PROTECTOR, BACK DOOR OUTSIDE GARNISH 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH 76825C - PROTECTOR, BACK DOOR OUTSIDE GARNISH 76826A - RETAINER, BACK DOOR GARNISH, NO.1 76827A - RETAINER, BACK DOOR GARNISH, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
