TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

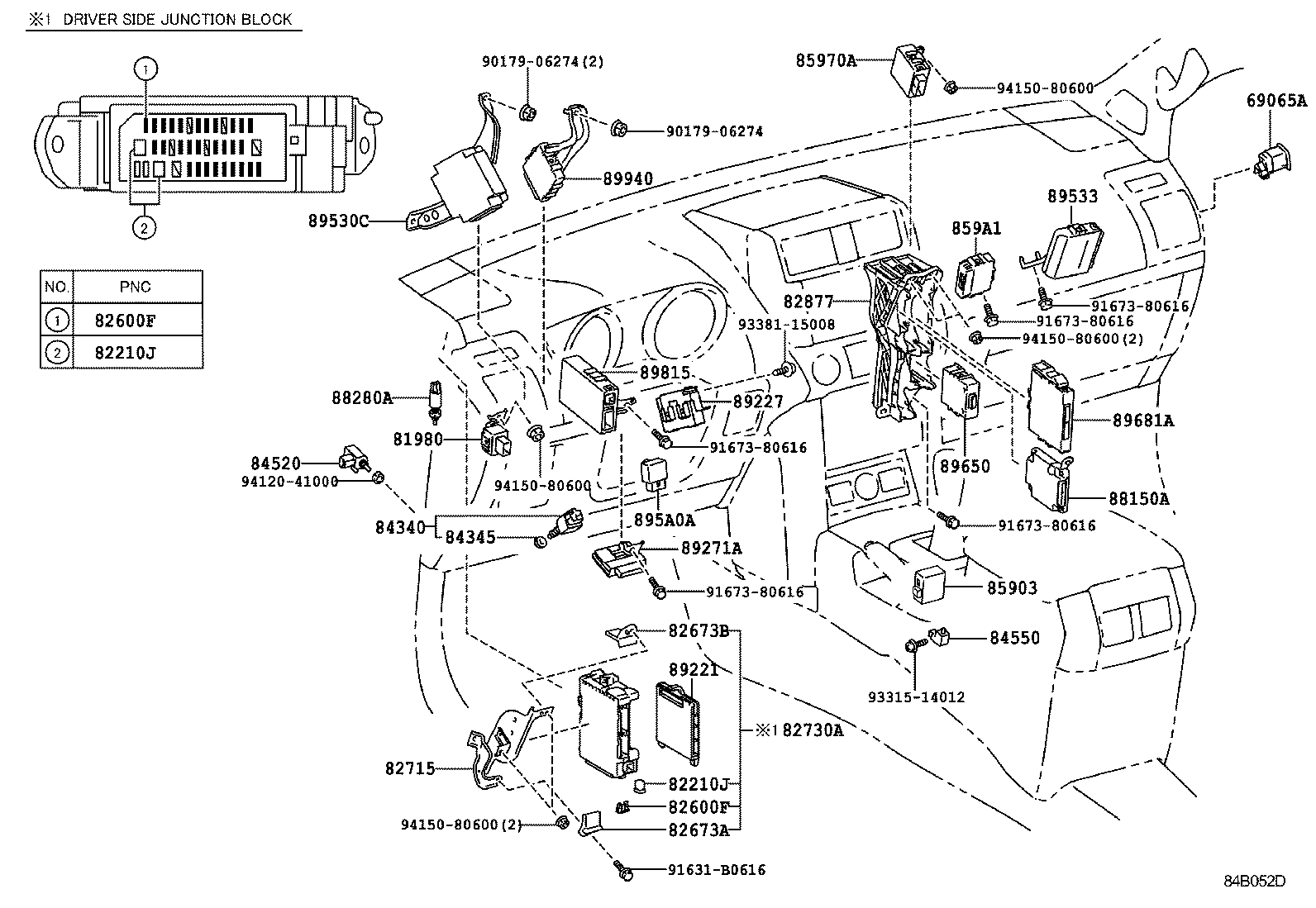

COWL ILLUST NO. 4 OF10(0908- )LHD

 LAND CRUISER 150 |  SWITCH RELAY COMPUTER 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH 81980 - FLASHER ASSY, TURN SIGNAL 82210J - FUSIBLE LINK 82210J - FUSIBLE LINK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82673A - BRACKET, JUNCTION BLOCK 82673B - BRACKET, JUNCTION BLOCK 82715 - BRACKET,WIRING HARNESS CLAMP 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION 82877 - BOX, COMPUTER INTEGRATION, RH 84340 - SWITCH ASSY, STOP LAMP 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING 84520 - SWITCH ASSY, CLUTCH START 84550 - SWITCH ASSY, PARKING BRAKE 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL 859A1 - COMPUTER, DRIVING SUPPORT SWITCH CONTROL 88150A - COMPUTER ASSY, DRIVING SUPPORT 88280A - SWITCH ASSY, CLUTCH 89221 - COMPUTER, MULTIPLEX NETWORK BODY 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC 89271A - COMPUTER, STABILIZER CONTROL 89530C - COMPUTER ASSY, TRANSMISSION CONTROL 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL 895A0A - COMPUTER ASSY, STOP LAMP CONTROL 89650 - COMPUTER ASSY, POWER STEERING 89681A - COMPUTER, POWER MANAGEMENT CONTROL 89815 - COMPUTER, SEAT BELT CONTROL 89940 - COMPUTER ASSY, HEADLAMP SWIVEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
