TOYOTA LAND CRUISER 150 KDJ150L-GKAEYW / ELECTRICAL / WIRING CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

WIRING CLAMP

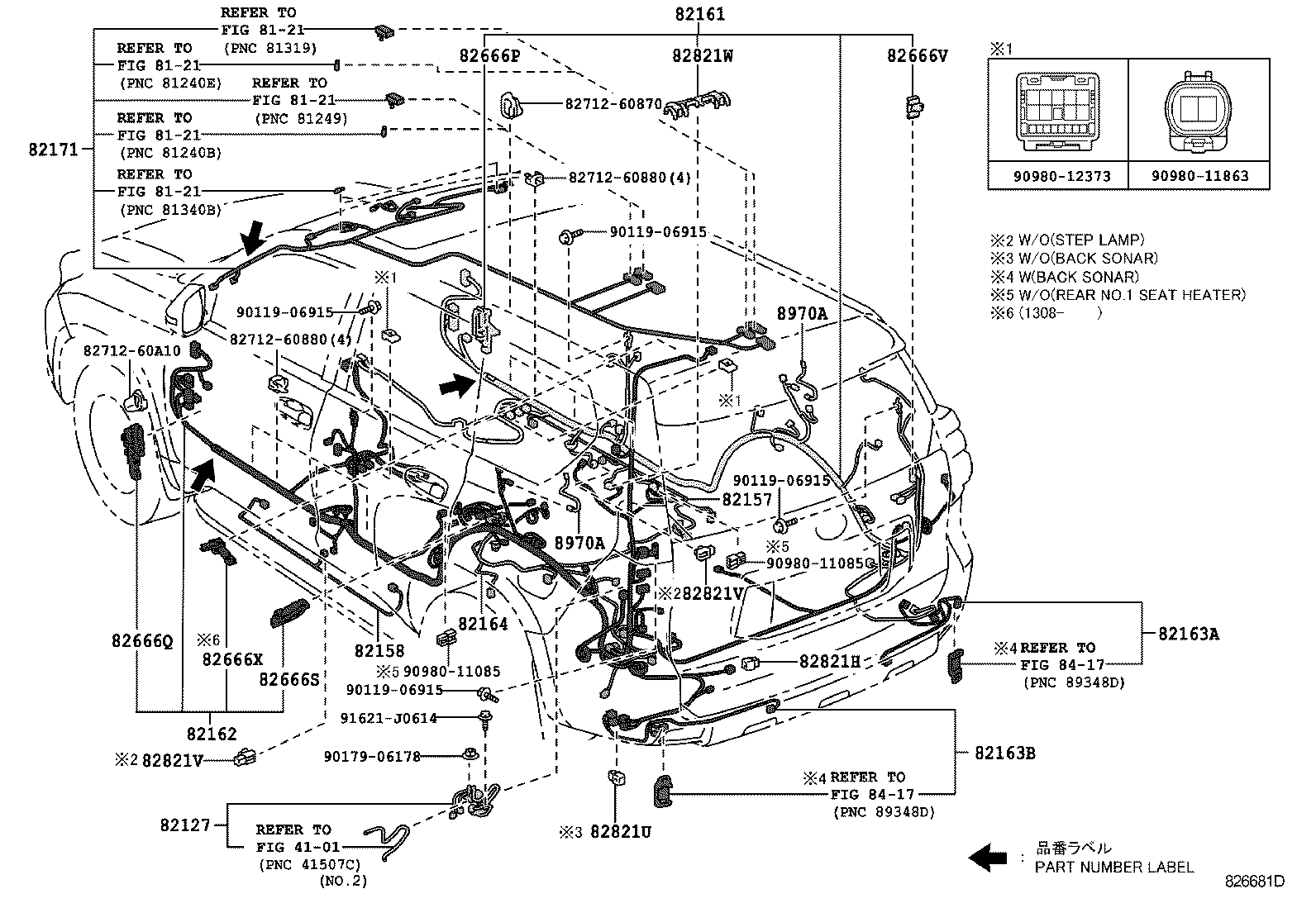

FLOOR,FRAME & ROOF ILLUST NO. 5 OF11(0908- )GRJ150,KDJ150

 LAND CRUISER 150 |  WIRING CLAMP ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 82127 - WIRE, DIFFERENTIAL 82157 - WIRE, STEP PANEL, RH 82158 - WIRE, STEP PANEL, LH 82161 - WIRE, FLOOR 82162 - WIRE, FLOOR, NO.2 82163A - WIRE, FLOOR, NO.4 82163B - WIRE, FLOOR NO.5 82164 - WIRE, FRAME 82171 - WIRE, ROOF, NO.1 82666P - HOLDER, CONNECTOR NO.11 82666Q - HOLDER, CONNECTOR NO.12 82666S - HOLDER, CONNECTOR NO.13 82666V - HOLDER, CONNECTOR NO.15 82666X - HOLDER, CONNECTOR NO.17  ** Std Part  ** Std Part  ** Std Part  ** Std Part 82821H - COVER, CONNECTOR 82821U - COVER, CONNECTOR 82821V - COVER, CONNECTOR 82821V - COVER, CONNECTOR 82821W - COVER, CONNECTOR ** Refer Fig ** Refer Fig 8970A - CORD SUB-ASSY, THEFT WARNING SENSOR 8970A - CORD SUB-ASSY, THEFT WARNING SENSOR  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
