TOYOTA PRIUS NHW20L-AHEEBW / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSTRUMENT PANEL GLOVE COMPARTMENT

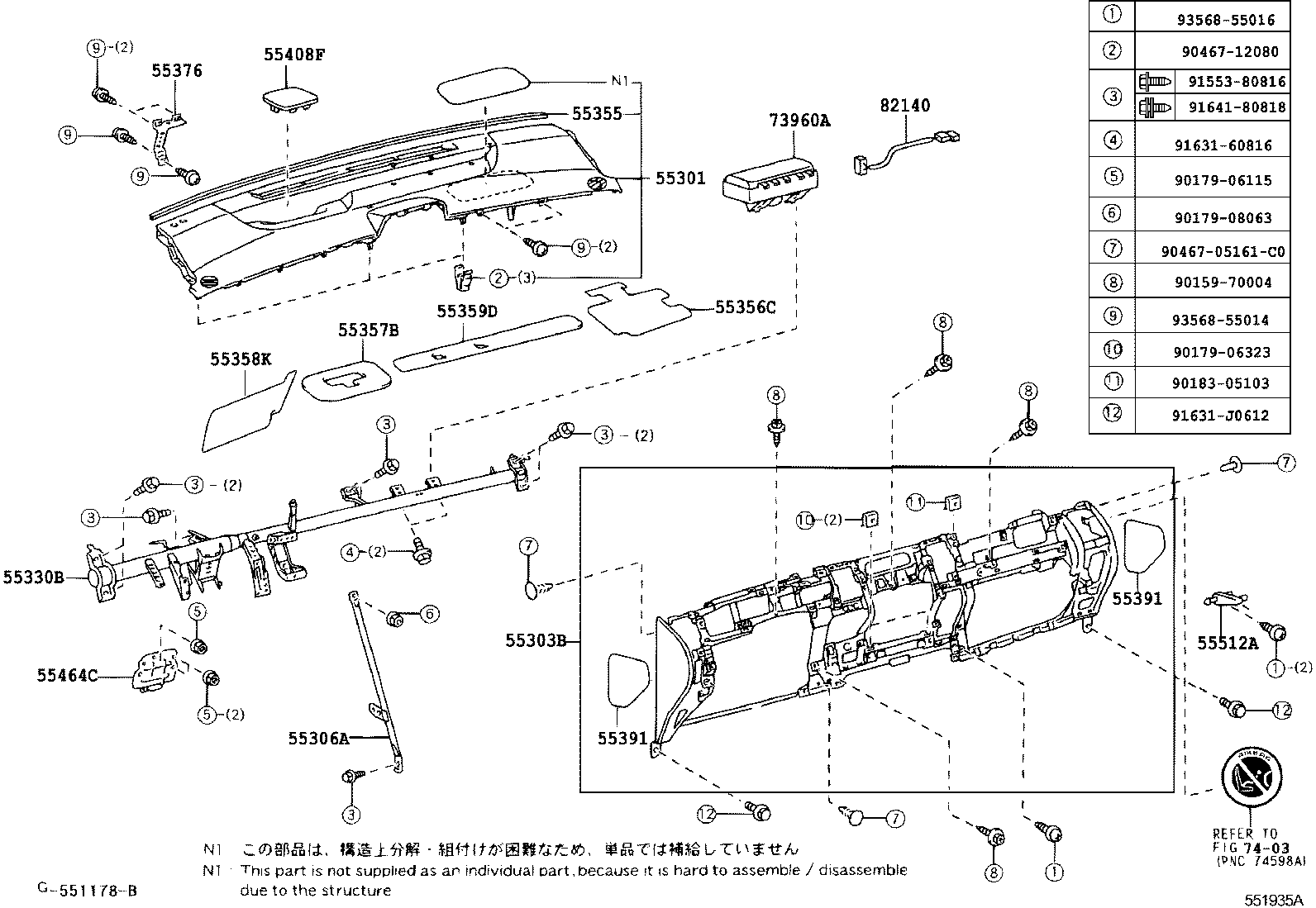

ILLUST NO. 1 OF 2(0705- )LHD

 PRIUS |  INSTRUMENT PANEL GLOVE COMPARTMENT 55301 - PANEL SUB-ASSY, INSTRUMENT 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL 55355 - CUSHION, INSTRUMENT PANEL, NO.1 55356C - CUSHION, INSTRUMENT PANEL, NO.2 55357B - CUSHION, INSTRUMENT PANEL, NO.3 55358K - CUSHION, INSTRUMENT PANEL, NO.4 55359D - CUSHION, INSTRUMENT PANEL, NO.5 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 55391 - CUSHION, INSTRUMENT PANEL, LOWER NO.1 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55464C - INSERT, INSTRUMENT PANEL LOWER PAD, RH 55512A - PLATE, GLOVE COMPARTMENT 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR ** Refer Fig 82140 - WIRE ASSY, INSTRUMENT PANEL  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
